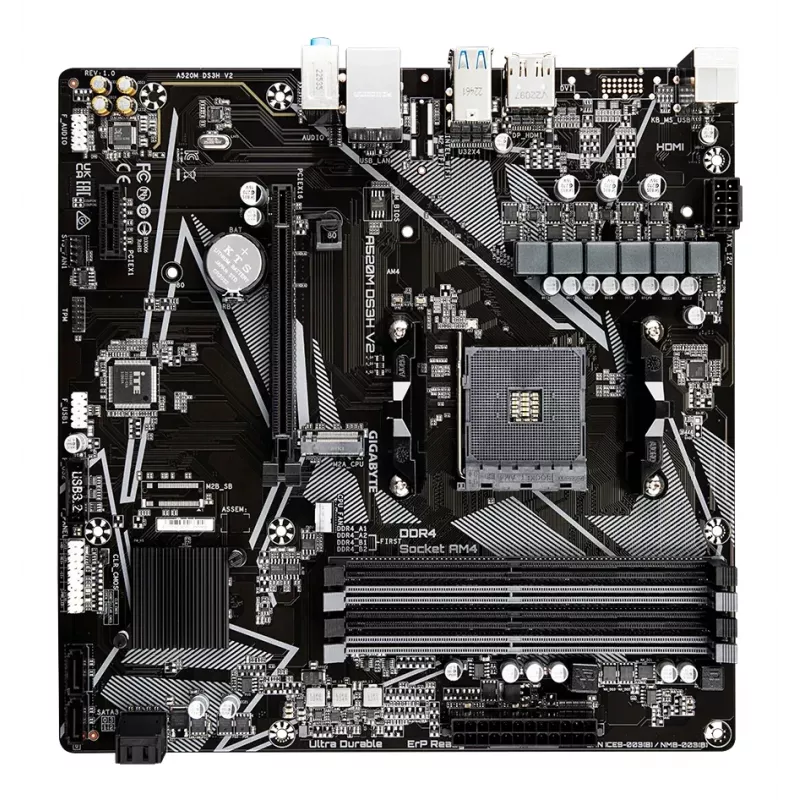

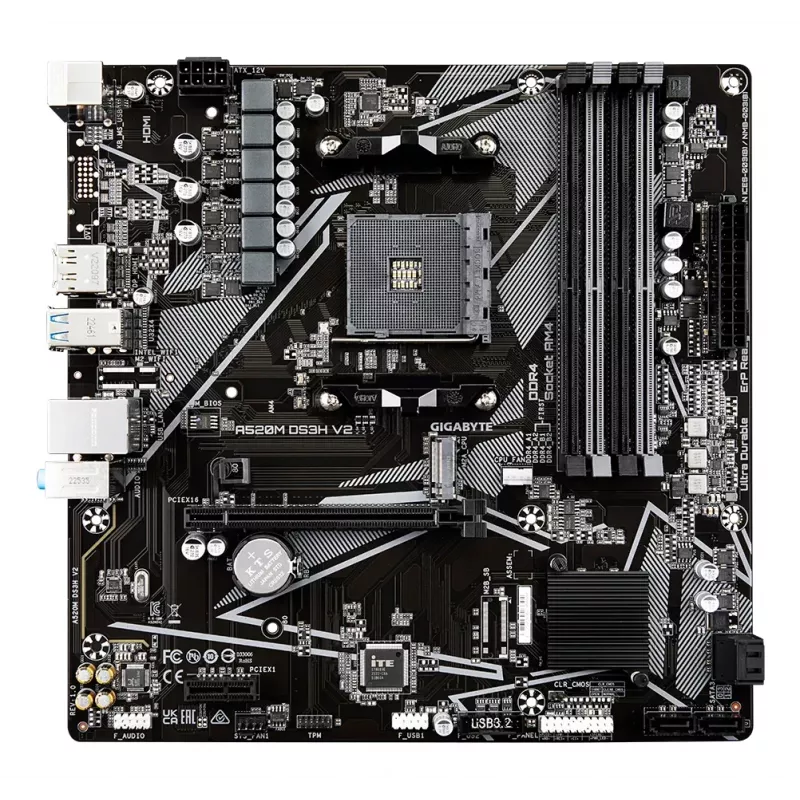

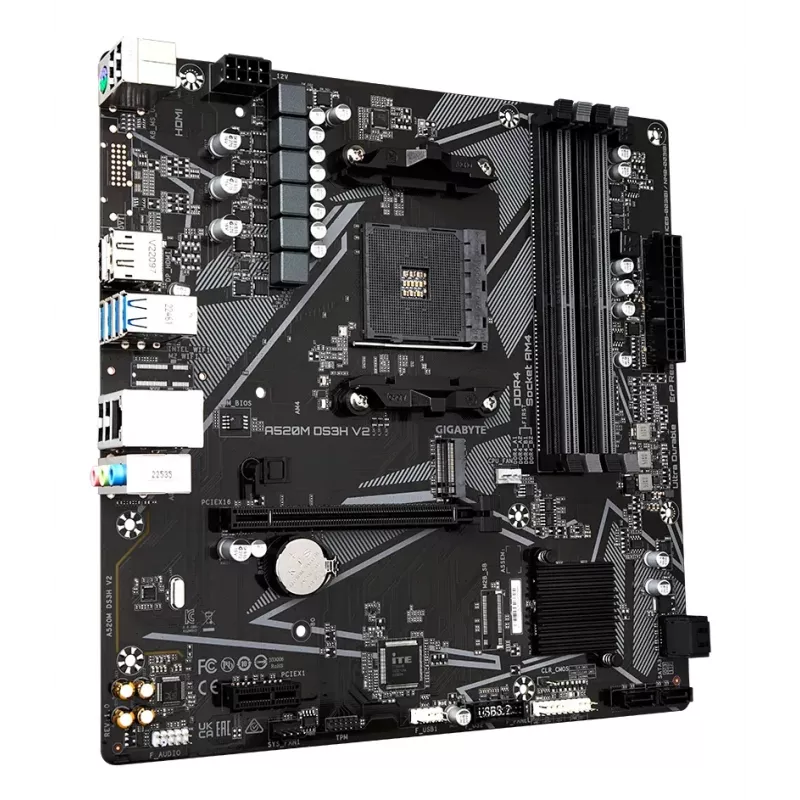

GIGABYTE A520M DS3H V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 4733MHz DDR4 (OC), PCIe 3.0 x16, GbE LAN, USB 3.2 Gen 1

The GIGABYTE A520M DS3H V2 is a Micro ATX motherboard compatible with Socket AM4 processors and designed for desktop PC builds. It supports AMD Ryzen 5000 Series CPUs, up to 128 GB DDR4 memory (4 DIMM slots) with overclocking up to 4733 MHz (OC), and provides a balance of connectivity and expandability with PCIe 3.0 slots, M.2 and SATA III storage support, GbE LAN and USB 3.2 Gen 1 ports.

Advantages

This motherboard combines a compact Micro ATX form factor with support for modern Ryzen processors and high-capacity DDR4 memory, offering reliable fundamentals for gaming, content creation or general-purpose PCs. Built-in M.2 and SATA III interfaces accommodate both NVMe/SSD and HDD storage, while RAID 0/1/10 support enables flexible storage configurations. The board also includes multiple PCIe slots and contemporary connectivity such as USB 3.2 Gen 1 and Gigabit Ethernet.

Suitable for

• Home and office desktop PCs
• Mid-range gaming systems with a single PCIe x16 graphics card
• Content creation and multimedia editing on a budget
• Upgrading existing AM4-based systems

Key specifications

• Form factor: Micro ATX
• Processor socket: Socket AM4 (supports AMD Ryzen 5000 Series)
• Memory: 4 x DDR4 DIMM slots, up to 128 GB, up to 4733 MHz (OC)
• PCIe slots: 1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1
• Storage interfaces: M.2, SATA III
• LAN: Gigabit Ethernet (GbE)
• USB: USB 3.2 Gen 1 ports
• RAID: Support for RAID 0, 1 and 10

How to use

Install the motherboard into a Micro ATX-compatible case and seat an AM4-compatible Ryzen CPU into the socket following the CPU cooler manufacturer's instructions. Insert DDR4 memory modules into the four DIMM slots according to the motherboard manual for optimal channel configuration. Connect storage devices via M.2 and SATA III connectors, and install a graphics card into the PCIe 3.0 x16 slot if required. Attach power supply cables (24-pin ATX and CPU 8-pin) and connect front-panel headers, USB, and LAN. Configure BIOS/UEFI settings to detect installed devices and, if desired, enable memory overclocking profiles or set up RAID arrays for supported drives.

Recommendations

Use high-quality DDR4 modules that match the motherboard's supported frequencies and populate DIMM slots as advised in the manual for dual-channel operation. When installing an M.2 SSD, consult the manual for M.2 slot thermal considerations and enable appropriate BIOS settings. For RAID configurations, back up data before creating arrays and use identical drives for best results.
