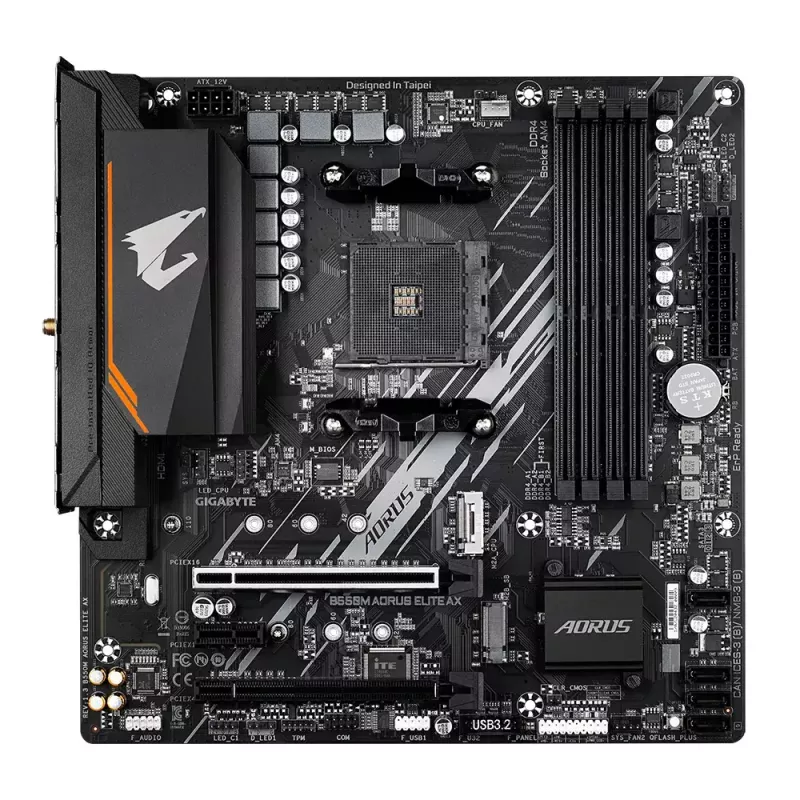

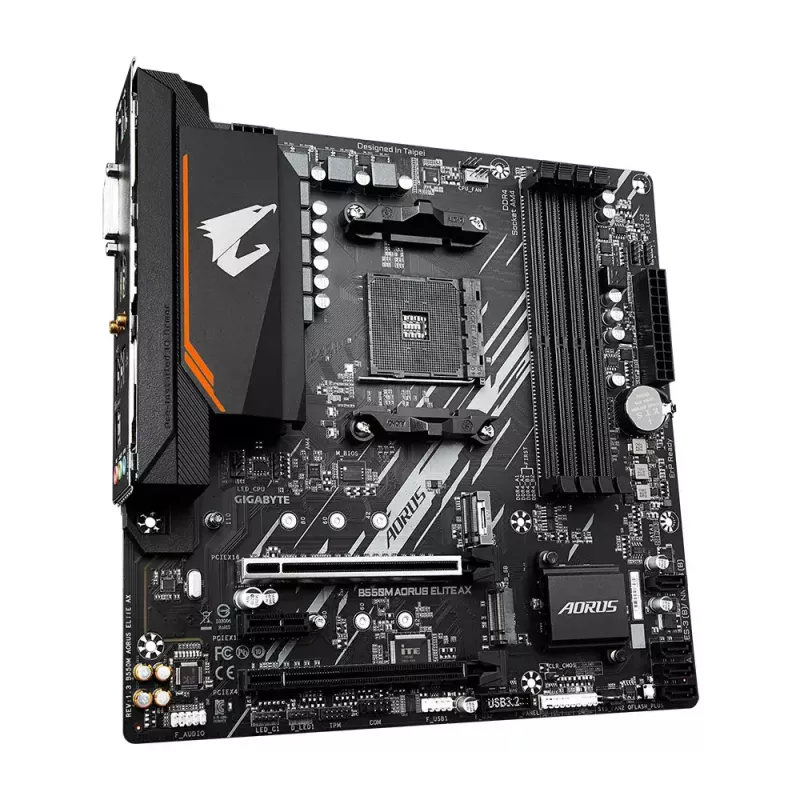

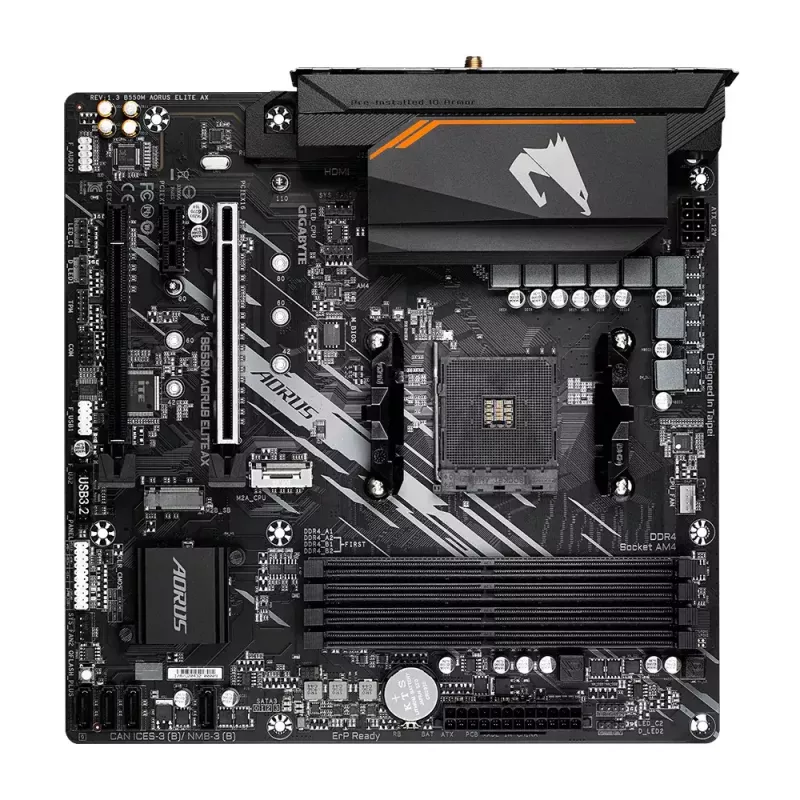

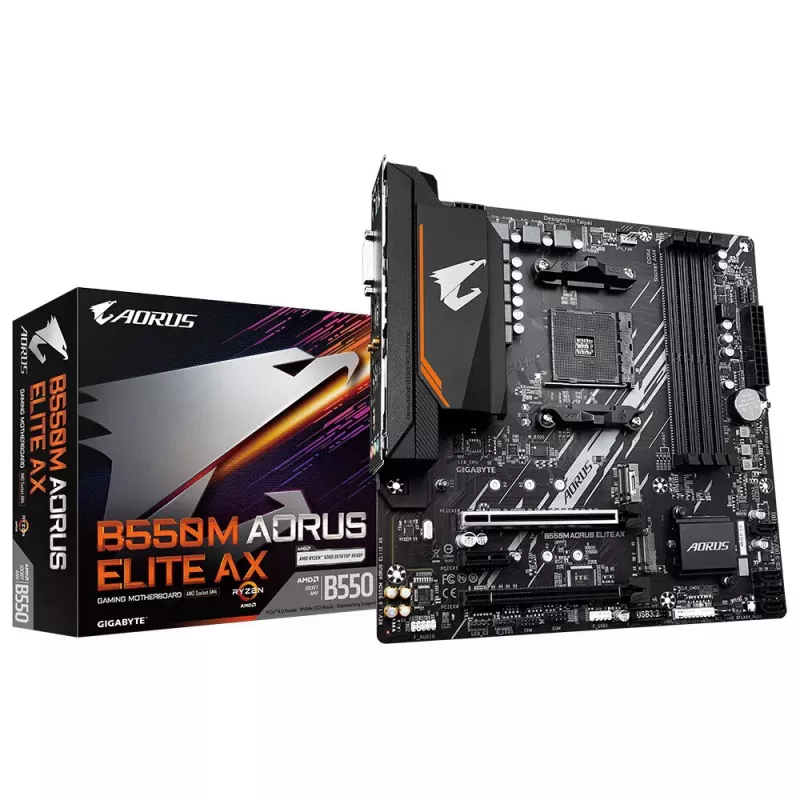

Motherboard GIGABYTE B550M AORUS ELITE AX, AMD B550, Socket AM4, Micro ATX

Motherboard GIGABYTE B550M AORUS ELITE AX, AMD B550, Socket AM4, Micro ATX
Motherboard GIGABYTE B550M AORUS ELITE AX, AMD B550, Socket AM4, Micro ATX
Motherboard GIGABYTE B550M AORUS ELITE AX, AMD B550, Socket AM4, Micro ATX
Motherboard GIGABYTE B550M AORUS ELITE AX, AMD B550, Socket AM4, Micro ATX
Motherboard GIGABYTE B550M AORUS ELITE AX, AMD B550, Socket AM4, Micro ATX
36 mo.
Motherboard GIGABYTE B550M AORUS ELITE AX, AMD B550, Socket AM4, Micro ATX
Motherboard GIGABYTE B550M AORUS ELITE AX, AMD B550, Socket AM4, Micro ATX
Motherboard GIGABYTE B550M AORUS ELITE AX, AMD B550, Socket AM4, Micro ATX
Motherboard GIGABYTE B550M AORUS ELITE AX, AMD B550, Socket AM4, Micro ATX
Motherboard GIGABYTE B550M AORUS ELITE AX, AMD B550, Socket AM4, Micro ATX
R2,324
The GIGABYTE B550M AORUS ELITE AX is a Micro ATX motherboard based on the AMD B550 chipset with Socket AM4 support. It is designed for systems built around AMD Ryzen 5000 series processors and provides a balanced set of features for gaming, content creation and general PC use, including a 5+3 phase ... Read More
Stock 5 Code 881475 Brand GIGABYTE Model B550M AORUS ELITE AX Warranty 3 Years

Shipping & Returns

Estimated delivery Friday, October 2
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The GIGABYTE B550M AORUS ELITE AX is a Micro ATX motherboard based on the AMD B550 chipset with Socket AM4 support. It is designed for systems built around AMD Ryzen 5000 series processors and provides a balanced set of features for gaming, content creation and general PC use, including a 5+3 phase pure digital VRM, four DDR4 memory slots supporting up to 128 GB and PCIe 4.0 storage support.

Advantages

This motherboard delivers solid performance and modern connectivity: support for DDR4 memory at speeds up to 4733 MHz (OC), a PCIe 4.0 M.2 slot for high-speed NVMe SSDs, integrated Wi‑Fi 6E and Gigabit Ethernet, and USB 3.2 Gen 2 ports for fast peripheral connections. The 5+3 phase pure digital VRM offers stable power delivery for Ryzen CPUs in demanding workloads.

Suitable for

  • Gaming PCs using AMD Ryzen 5000 series processors
  • Compact Micro ATX builds requiring high-speed storage and networking
  • Content creation and productivity systems needing multiple memory slots and stable power delivery

Key specifications

  • Form factor: Micro ATX
  • Chipset: AMD B550
  • Processor socket: Socket AM4
  • Memory: 4 × DDR4 slots, up to 128 GB, up to 4733 MHz (OC)
  • VRM: 5+3 phase pure digital VRM
  • Expansion: 1 × PCIe 4.0 M.2 slot; PCIe x1 (Gen3) slots: 1
  • Networking: Wi‑Fi 6E, Gigabit Ethernet (GbE LAN)
  • USB: USB 3.2 Gen 2 ports

How to use

Install the GIGABYTE B550M AORUS ELITE AX into a compatible Micro ATX case and mount an AM4-compatible Ryzen CPU following the motherboard manual. Populate DDR4 memory modules into the four DIMM slots according to the recommended dual-channel configuration, connect storage devices including NVMe drives to the PCIe 4.0 M.2 slot, and attach power connectors from a suitable PSU. Configure BIOS/UEFI settings for memory frequency, storage mode and boot order, and install the operating system and drivers from GIGABYTE for full functionality.

Recommendations

For stable performance, use high-quality DDR4 modules matched in pairs for dual-channel operation, a power supply with adequate wattage and good transient response, and ensure the latest BIOS is installed to maximize CPU compatibility and memory support.

Key Highlights
  • Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series/ Ryzen 3000 and Ryzen 3000 G-Series Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
  • Ultra Durable PCIe 4.0 Ready x16 Slot
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
  • Onboard Wi-Fi 6E 802.11ax & BT 5.3
  • High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
  • Realtek GbE LAN with Bandwidth Management
  • Rear HDMI & DVI Support
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
  • Anti-Sulfur Resistors Design
  • AMD Socket AM4 AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
  • PC micro ATX AMD B550 Realtek ALC897 7.1 channels
  • DDR4-SDRAM 4 DIMM Maximum internal memory: 128 GB
  • HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
  • BIOS type: UEFI AMI 128 Mbit ACPI version: 5.0 Clear CMOS jumper
  • Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.3
Specifications
12V power connector
Yes
1st M.2 highest PCI Express generation
4.0
1st M.2 largest key size
22110
2nd M.2 highest PCI Express generation
3.0
2nd M.2 largest key size
2280
ACPI version
5.0
Antenna included
Yes
ATX Power connector (24-pin)
Yes
Audio chip
Realtek ALC897
Audio output channels
7.1 channels
Batteries included
Yes
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Battery weight
3 g
BIOS memory size
128 Mbit
BIOS type
UEFI AMI
Bluetooth
Yes
Bluetooth version
5.3
Bundled software
Norton® Internet Security (OEM version) LAN bandwidth management software
Clear CMOS jumper
Yes
Compatible processor series
AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
Component for
PC
Cooling type
Passive
Country of origin
China
CPU fan connector
Yes
Depth
244 mm
Desktop Management Interface (DMI) version
2.7
DirectX version
12.0
DVI-D ports quantity
1
ECC сompatibility
ECC & Non-ECC
EPS power connector (8-pin)
Yes
Ethernet interface type
Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Front panel audio connector
Yes
Front panel connector
Yes
HDCP
Yes
HDMI ports quantity
1
HDMI version
2.1
Headphone outputs
1
Height
35 mm
LAN controller
Realtek RTL8111H
Line-in
Yes
Lithium weight per battery
0.07 g
Maximum internal memory
128 GB
Maximum internal memory per slot
32 GB
Maximum number of SMP processors
1
Maximum resolution
4096 x 2160 pixels
Memory channels
Dual-channel
Memory slots type
DIMM
Microphone in
Yes
Motherboard chipset
AMD B550
Motherboard chipset family
AMD
Motherboard form factor
micro ATX
Number of battery cells
1
Number of chassis fan connectors
2
Number of CPU fan connectors
1
Number of EPS power connectors (8-pin)
1
Number of HDDs supported
4
Number of M.2 (M) slots
2
Number of memory slots
4
Number of RGB LED pin headers
5
Number of SATA III connectors
4
Number of storage drives supported
6
Number of water pump connectors
2
Package depth
265 mm
Package height
65 mm
Package weight
1.27 kg
Package width
265 mm
Parallel processing technology support
Not supported
PC health monitoring
Fan, Temperature, Voltage
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
Power source type
ATX
Processor manufacturer
AMD
Processor socket
Socket AM4
Product colour
Brown
Products per shipping (inner) case
1 pc(s)
PS/2 ports quantity
1
RAID levels
0, 1, 10
RAID support
Yes
RGB LED pin header
Yes
Screws included
Yes
Serial port headers
1
Supported memory clock speed (max)
4733 MHz
Supported memory clock speeds
4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz
Supported memory types
DDR4-SDRAM
Supported processor sockets
Socket AM4
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
System Management BIOS (SMBIOS) version
2.7
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
TPM connector
Yes
Unbuffered memory
Yes
USB 2.0 connectors
1
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
VGA (D-Sub) ports quantity
0
Warranty period
3 year(s)
Wi-Fi
Yes
Wi-Fi standards
Wi-Fi 6E (802.11ax)
Width
244 mm
WiFi-AP antenna jack
2
Windows operating systems supported
Windows 10 x64, Windows 11 x64
WLAN controller model
Realtek RTL8852CE

Manual

Open Manual

Leaflet

Open Leaflet
