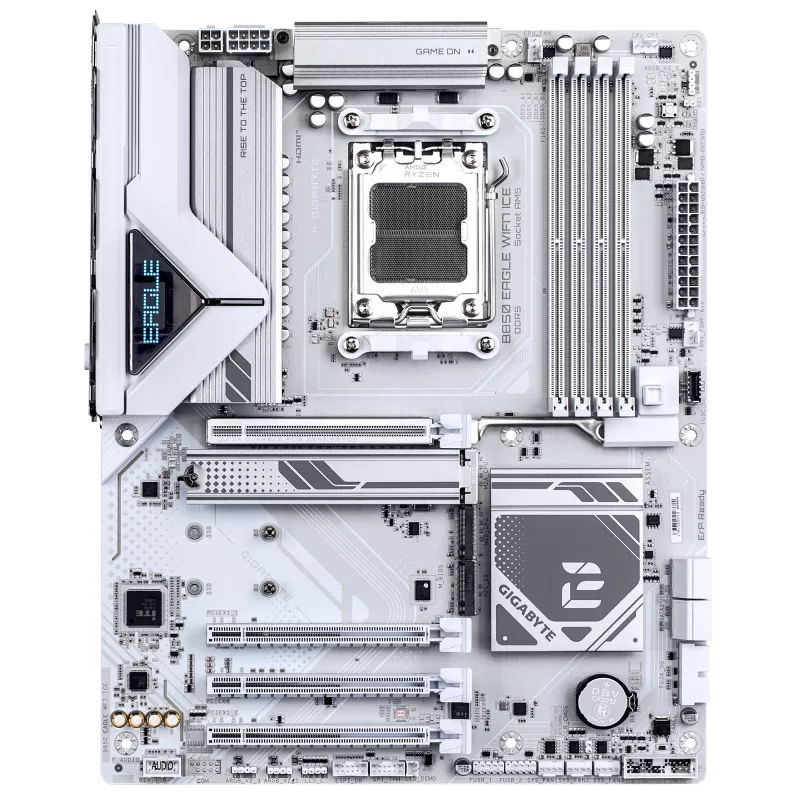

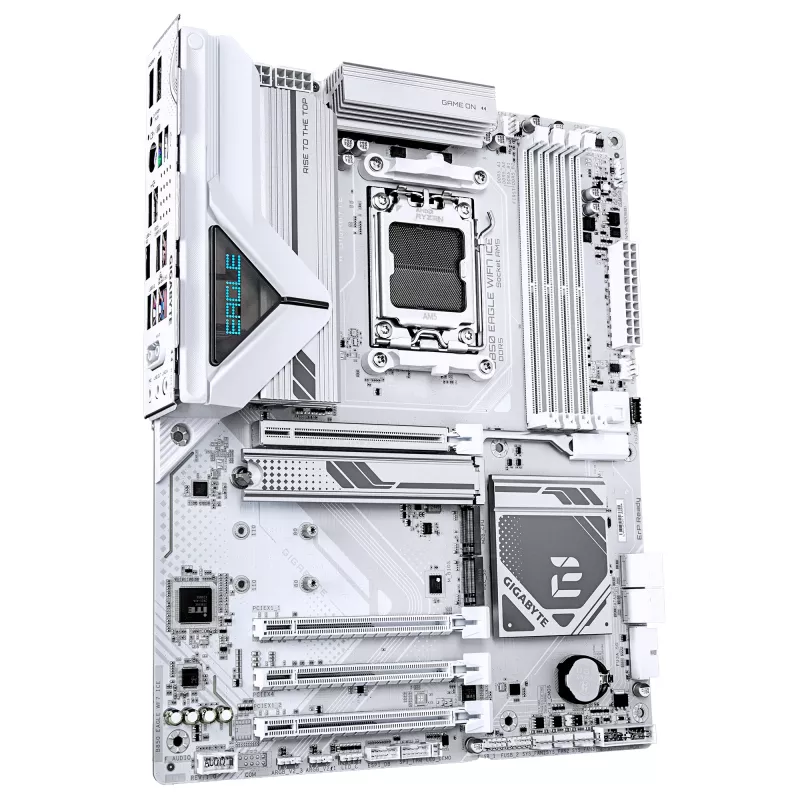

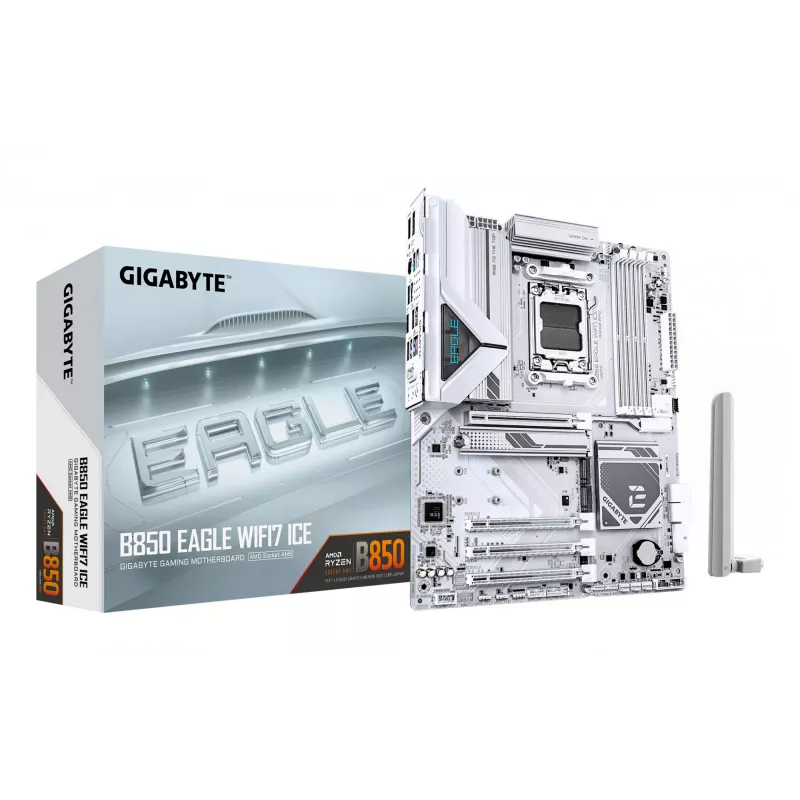

Motherboard GIGABYTE B850 EAGLE WIFI7 ICE, AMD B850, Socket AM5, ATX

Motherboard GIGABYTE B850 EAGLE WIFI7 ICE, AMD B850, Socket AM5, ATX
Motherboard GIGABYTE B850 EAGLE WIFI7 ICE, AMD B850, Socket AM5, ATX
Motherboard GIGABYTE B850 EAGLE WIFI7 ICE, AMD B850, Socket AM5, ATX
Motherboard GIGABYTE B850 EAGLE WIFI7 ICE, AMD B850, Socket AM5, ATX
36 mo.
Motherboard GIGABYTE B850 EAGLE WIFI7 ICE, AMD B850, Socket AM5, ATX
Motherboard GIGABYTE B850 EAGLE WIFI7 ICE, AMD B850, Socket AM5, ATX
Motherboard GIGABYTE B850 EAGLE WIFI7 ICE, AMD B850, Socket AM5, ATX
Motherboard GIGABYTE B850 EAGLE WIFI7 ICE, AMD B850, Socket AM5, ATX
R3,666
The GIGABYTE B850 EAGLE WIFI7 ICE is an ATX motherboard for Socket AM5, compatible with AMD Ryzen 9000 Series processors. It supports up to 256 GB of DDR5 memory across four slots with overclocking up to 8200 MHz (OC), and offers a robust 8+2+2 Phases Digital VRM. Designed for high-performance deskt... Read More
Stock 113 Code 30584 Brand GIGABYTE Model B850 EAGLE WF7 ICE Warranty 3 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The GIGABYTE B850 EAGLE WIFI7 ICE is an ATX motherboard for Socket AM5, compatible with AMD Ryzen 9000 Series processors. It supports up to 256 GB of DDR5 memory across four slots with overclocking up to 8200 MHz (OC), and offers a robust 8+2+2 Phases Digital VRM. Designed for high-performance desktop systems, the board includes PCIe 5.0 and PCIe 4.0 M.2 support, Wi‑Fi 7 and 2.5 GbE LAN for modern connectivity, and provisions for both HDD and SSD storage.

Advantages

The motherboard provides advanced power delivery through an 8+2+2 Phases Digital VRM for stable CPU performance, and supports high-speed DDR5 memory with OC headroom to meet demanding workloads. It includes one PCIe 5.0 x16 slot and multiple PCIe 4.0 M.2 slots for fast NVMe SSDs, plus integrated Wi‑Fi 7 and 2.5 GbE LAN for low-latency networking. The ATX form factor and broad compatibility with PC components make it suitable for gaming, content creation, and professional use.

Suitable for

  • Gaming PCs requiring high CPU and memory throughput
  • Content creation and video editing workstations
  • General-purpose high-performance desktops and professional systems

Key specifications

  • Form factor: ATX
  • Chipset: AMD B850
  • Socket: Socket AM5 (AMD Ryzen 9000 Series)
  • Memory: 4 × DDR5 slots, up to 256 GB, up to 8200 MHz (OC)
  • Power delivery: 8+2+2 Phases Digital VRM
  • Expansion: 1 × PCIe 5.0 x16, additional PCIe slots and 2 × PCIe 4.0 M.2 slots
  • Connectivity: Wi‑Fi 7, 2.5 GbE LAN
  • Storage: Support for HDD and SSD (M.2 NVMe)
  • Weight: 1.69 kg

How to use

Install the motherboard into an ATX-compatible case, fit a compatible Socket AM5 AMD Ryzen 9000 Series CPU and DDR5 memory modules into the four DIMM slots following the motherboard manual for recommended slot population and dual-/quad-channel configurations. Connect storage devices to available M.2 slots or SATA connectors, install a GPU into the PCIe 5.0 x16 slot as required, and attach power cables from a suitable PSU. Configure BIOS/UEFI settings for memory XMP/EXPO profiles and storage boot order, and install the operating system and drivers for network and chipset functionality.

Recommendations

For stable high-frequency DDR5 operation and CPU overclocking, use a high-quality power supply, ensure adequate case airflow, and consult the motherboard manual for recommended cooling and memory slot population. Keep BIOS updated to the latest version for optimal compatibility with Ryzen 9000 Series CPUs and Wi‑Fi 7 support.
Key Highlights
  • X3D Turbo Mode : Unleash new era gaming performance
  • DDR5 OC up to 8200MT/s
  • AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
  • Digital 8+2+2 phases VRM solution
  • Dual Channel DDR5: 4*DIMMs with AMD EXPO Memory Module Support
  • WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
  • EZ-Latch Click: M.2 heatsinks with screwless design
  • Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
  • Ultra-Fast Storage: 3*M.2 slots, including PCIe 5.0 x4
  • Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
  • Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
  • Extended Connectivity: HDMI, Displayport
  • PCIe UD Slot: PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
  • AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
  • PC ATX AMD B850 Realtek ALC897 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
  • HDD & SSD M.2, PCI Express 4.0, PCI Express 5.0, SATA III RAID support Number of storage drives supported: 7
  • BIOS type: UEFI AMI 256 Mbit ACPI version: 5.0 Clear CMOS jumper
  • 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
Specifications
12V power connector
Yes
1st M.2 highest PCI Express generation
5.0
1st M.2 largest key size
22110
2nd M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
22110
ACPI version
5.0
Antenna included
Yes
ATX Power connector (24-pin)
Yes
Audio chip
Realtek ALC897
Audio output channels
7.1 channels
Batteries included
Yes
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Battery weight
3 g
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Bluetooth
Yes
Bluetooth version
5.4
Bundled software
Norton® Internet Security (OEM version) LAN bandwidth management software
Clear CMOS jumper
Yes
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Component for
PC
Cooling type
Passive
CPU fan connector
Yes
Depth
244 mm
Desktop Management Interface (DMI) version
2.7
DirectX version
12.0
DisplayPort version
1.4
DisplayPorts quantity
1
DVI-D ports quantity
0
ECC сompatibility
Non-ECC
EPS power connector (8-pin)
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Front panel audio connector
Yes
Front panel connector
Yes
HDCP
Yes
HDMI ports quantity
1
HDMI version
1.4
Headphone outputs
1
Height
35 mm
LAN controller
Realtek RTL8125
Line-in
Yes
Lithium weight per battery
0.07 g
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
Maximum resolution
4096 x 2160 pixels
Memory channels
Dual-channel
Memory slots type
DIMM
Microphone in
Yes
Motherboard chipset
AMD B850
Motherboard chipset family
AMD
Motherboard form factor
ATX
mSATA ports quantity
0
Number of battery cells
1
Number of chassis fan connectors
4
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
1
Number of HDDs supported
4
Number of M.2 (M) slots
3
Number of memory slots
4
Number of RGB LED pin headers
4
Number of SATA connectors
0
Number of SATA II connectors
0
Number of SATA III connectors
4
Number of storage drives supported
7
Number of water pump connectors
2
On-board graphics card
No
Package depth
270 mm
Package height
80 mm
Package weight
1.89 kg
Package width
335 mm
Parallel processing technology support
Not supported
PC health monitoring
Fan, Temperature, Voltage, Water cooling
PCI Express x16 (Gen 3.x) slots
2
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
Peripheral (Molex) power connectors (4-pin)
1
Power source type
ATX
Processor manufacturer
AMD
Processor socket
Socket AM5
Product colour
White
Products per shipping (inner) case
1 pc(s)
PS/2 ports quantity
1
RAID levels
0, 1, 10
RAID support
Yes
RGB LED pin header
Yes
Screws included
Yes
Supported memory clock speed (max)
8200 MHz
Supported memory clock speeds
8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz
Supported memory types
DDR5-SDRAM
Supported processor sockets
Socket AM5
Supported storage drive interfaces
M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Supported storage drive types
HDD & SSD
System Management BIOS (SMBIOS) version
2.7
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
TPM connector
Yes
Unbuffered memory
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
VGA (D-Sub) ports quantity
0
Warranty period
3 year(s)
Weight
1.69 kg
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Width
305 mm
WiFi-AP antenna jack
2
Windows operating systems supported
Windows 11 x64
WLAN controller model
Realtek RTL8922AE

Manual

Open Manual

Leaflet

Open Leaflet
