Motherboard GIGABYTE X870I AORUS PRO ICE, AMD AM5, Mini-ITX

Motherboard GIGABYTE X870I AORUS PRO ICE, AMD AM5, Mini-ITX
Motherboard GIGABYTE X870I AORUS PRO ICE, AMD AM5, Mini-ITX
Motherboard GIGABYTE X870I AORUS PRO ICE, AMD AM5, Mini-ITX
Motherboard GIGABYTE X870I AORUS PRO ICE, AMD AM5, Mini-ITX
Motherboard GIGABYTE X870I AORUS PRO ICE, AMD AM5, Mini-ITX
Motherboard GIGABYTE X870I AORUS PRO ICE, AMD AM5, Mini-ITX
36 mo.
Motherboard GIGABYTE X870I AORUS PRO ICE, AMD AM5, Mini-ITX
Motherboard GIGABYTE X870I AORUS PRO ICE, AMD AM5, Mini-ITX
Motherboard GIGABYTE X870I AORUS PRO ICE, AMD AM5, Mini-ITX
Motherboard GIGABYTE X870I AORUS PRO ICE, AMD AM5, Mini-ITX
Motherboard GIGABYTE X870I AORUS PRO ICE, AMD AM5, Mini-ITX
Motherboard GIGABYTE X870I AORUS PRO ICE, AMD AM5, Mini-ITX
R6,145
The GIGABYTE X870I AORUS PRO ICE is a Mini-ITX motherboard designed for AMD AM5 platforms and compatible with AMD Ryzen 9000 Series processors. Built on the AMD X870 chipset, this Micro ITX board features an 8+2+1 phase VRM design, two DDR5 memory slots supporting up to 128 GB and speeds up to 8400 ... Read More
Stock 7 Code 29762 Brand GIGABYTE Model X870I AORUS PRO ICE Warranty 3 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The GIGABYTE X870I AORUS PRO ICE is a Mini-ITX motherboard designed for AMD AM5 platforms and compatible with AMD Ryzen 9000 Series processors. Built on the AMD X870 chipset, this Micro ITX board features an 8+2+1 phase VRM design, two DDR5 memory slots supporting up to 128 GB and speeds up to 8400 MHz (OC), dual M.2 slots (one PCIe 5.0, one PCIe 4.0), integrated Wi‑Fi 7, 2.5 GbE LAN and USB4 connectivity, making it suitable for compact, high-performance PC builds.

Advantages

The motherboard combines a compact Mini-ITX form factor with high-end features such as PCIe 5.0 storage support, high-frequency DDR5 compatibility and robust 8+2+1 VRM power delivery for stable CPU performance. Integrated Wi‑Fi 7 and 2.5 GbE LAN provide versatile networking options, while USB4 ensures high-speed peripheral connectivity. Dual M.2 slots and RAID-capable storage expandability offer flexible storage configurations.

Suitable for

  • Compact gaming PCs where space is limited but performance is required
  • Small form-factor workstations for content creation and productivity
  • High-performance home or office systems needing fast networking and storage

Key specifications

  • Form factor: Mini-ITX / Micro ITX
  • Chipset: AMD X870
  • CPU support: AMD Ryzen 9000 Series (Socket AM5)
  • VRM design: 8+2+1 phases
  • Memory: 2 × DDR5 slots, up to 128 GB, up to 8400 MHz (OC)
  • Storage: 2 × M.2 (1 × PCIe 5.0, 1 × PCIe 4.0); HDD/SSD support with RAID capability
  • Networking: Wi‑Fi 7, 2.5 GbE LAN
  • Ports: USB4 support (additional ports depend on chassis and configuration)
  • Weight: 1.2 kg

How to use

Install the GIGABYTE X870I AORUS PRO ICE into a compatible Mini-ITX chassis and mount an AM5 CPU following standard socket handling procedures. Insert up to two DDR5 memory modules into the available slots, install storage devices into the M.2 slots (observing thermal pads or heatsinks if provided), and connect power, front panel, and cooling headers. Configure BIOS/UEFI settings after first boot to enable desired memory profiles, storage modes (including RAID if required) and to verify network interfaces.

Recommendations

For stable high-frequency DDR5 operation and heavy CPU loads, use quality airflow or active cooling in the chassis, populate memory in recommended slot configurations, and ensure the power supply provides sufficient and stable 12V rails. Update the motherboard BIOS to the latest version before installing a new Ryzen 9000 Series CPU to ensure compatibility and optimal performance.
Key Highlights
  • AMD Socket AM5 : Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
  • Digital twin 8+2+1 phases VRM solution
  • Dual Channel DDR5:2*DIMMs with AMD EXPO Memory Module Support
  • PCIe Gen5 x16 with PCIe UD Slot & EZ-Latch Plus
  • Ultra-Fast Storage: 2*M.2 slots, including 1* PCIe 5.0 x4
  • Efficient Overall Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
  • Extended Connectivity: USB4 Type-C with DP-Alt, HDMI

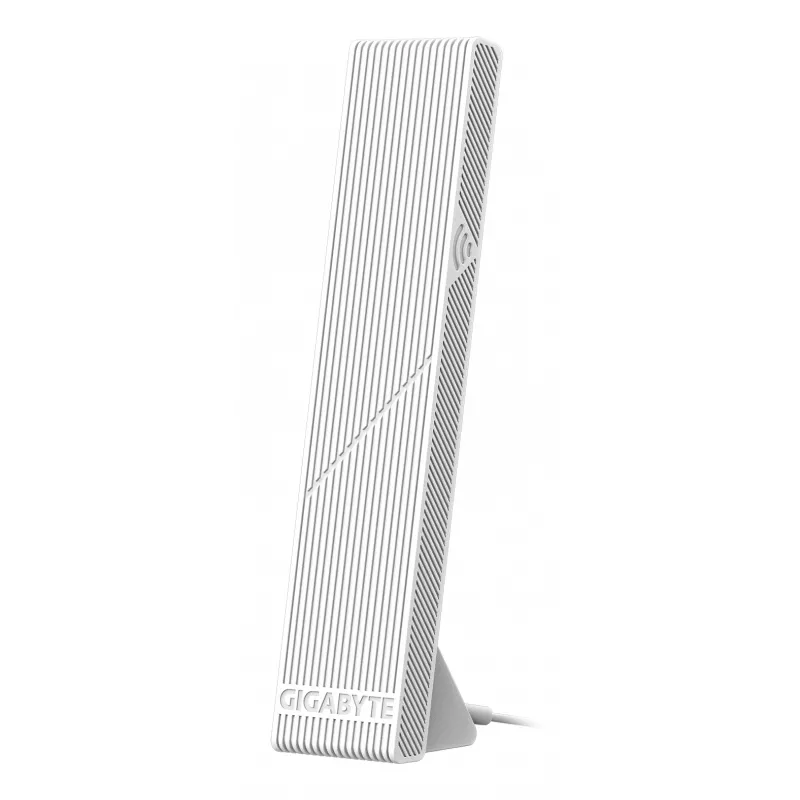

  • Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
  • AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
  • PC Micro ITX AMD X870 Realtek ALC4080 7.1 channels
  • DDR5-SDRAM 2 DIMM Maximum internal memory: 128 GB
  • HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 4
  • BIOS type: UEFI AMI 256 Mbit ACPI version: 5.0 Clear CMOS jumper
  • 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
Specifications
1st M.2 highest PCI Express generation
5.0
1st M.2 largest key size
2280
2nd M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
2280
ACPI version
5.0
Antenna included
Yes
ATX Power connector (24-pin)
Yes
Audio chip
Realtek ALC4080
Audio output channels
7.1 channels
Batteries included
Yes
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Battery weight
3 g
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Bluetooth
Yes
Bluetooth version
5.4
Bundled software
Norton® Internet Security (OEM version) LAN bandwidth management software
Chassis intrusion connector
Yes
Clear CMOS jumper
Yes
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Component for
PC
Country of origin
Taiwan
CPU fan connector
Yes
Depth
170 mm
Desktop Management Interface (DMI) version
2.7
DirectX version
12.0
DisplayPort version
1.4
DVI-D ports quantity
0
ECC сompatibility
Non-ECC
EPS power connector (8-pin)
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Front panel audio connector
Yes
Front panel connector
Yes
HDCP
Yes
HDMI ports quantity
1
HDMI version
2.1
Headphone outputs
1
Height
35 mm
LAN controller
Realtek RTL8125
Line-in
Yes
Lithium weight per battery
0.07 g
Maximum internal memory
128 GB
Maximum internal memory per slot
64 GB
Maximum resolution
4096 x 2160 pixels
Memory channels
Dual-channel
Memory slots type
DIMM
Motherboard chipset
AMD X870
Motherboard chipset family
AMD
Motherboard form factor
Micro ITX
Number of battery cells
1
Number of chassis fan connectors
1
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
1
Number of HDDs supported
2
Number of M.2 (M) slots
2
Number of memory slots
2
Number of RGB LED pin headers
3
Number of SATA III connectors
2
Number of storage drives supported
4
Number of water pump connectors
1
Package depth
227 mm
Package height
95 mm
Package weight
1.28 kg
Package width
235 mm
Parallel processing technology support
Not supported
PC health monitoring
Fan, Temperature, Voltage, Water cooling
PCI Express x16 (Gen 5.x) slots
1
Power source type
ATX
Processor manufacturer
AMD
Processor socket
Socket AM5
Product colour
White
Products per shipping (inner) case
1 pc(s)
RAID levels
0, 1
RAID support
Yes
RGB LED pin header
Yes
Screws included
Yes
Supported memory clock speed (max)
8400 MHz
Supported memory clock speeds
8400,8266,8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz
Supported memory types
DDR5-SDRAM
Supported processor sockets
Socket AM5
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
System Management BIOS (SMBIOS) version
2.7
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Unbuffered memory
Yes
USB 2.0 connectors
1
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB4 Gen 2x2 ports quantity
1
VGA (D-Sub) ports quantity
0
Warranty period
3 year(s)
Weight
1.2 kg
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Width
170 mm
WiFi-AP antenna jack
2
Windows operating systems supported
Windows 11 x64
WLAN controller model
Realtek RTL8922AE

Manual

Open Manual

Leaflet

Open Leaflet
