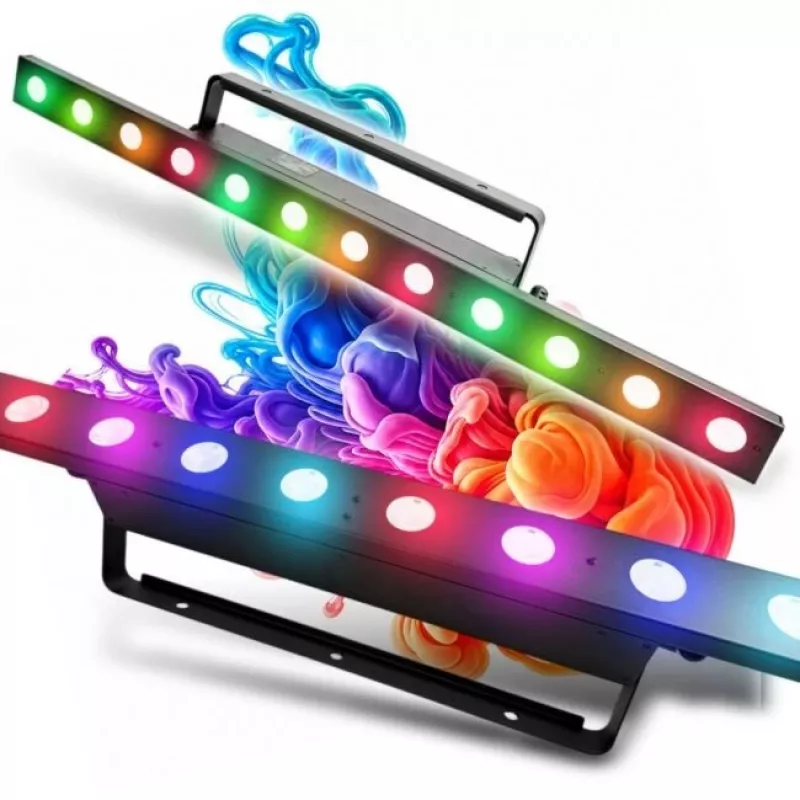

EVOLIGHTS PIXEL BAR 12x4W RGBA LED Bar

The EVOLIGHTS PIXEL BAR 12x4W RGBA is a powerful and versatile LED lighting fixture designed for professional stage, event, and architectural lighting. Featuring 12 high-intensity 4W RGBA LEDs, this pixel bar delivers vibrant color mixing with individual pixel control for stunning visual effects. With a total LED power of 48W and a 25° beam angle, it provides bright, focused illumination. The fixture supports multiple DMX channel modes (4, 6, 8, 10, 12, 16, 20, 48, 52) and control modes including DMX512, Auto, Sound Active, and Master/Slave, making it suitable for a wide range of applications.

Advantages

Individual pixel control allows for dynamic chases and effects. The RGBA color mixing produces a wide spectrum of colors including rich amber tones. Dual mounting brackets offer flexible installation options. The 0-100% linear electronic dimmer and variable strobe (1-20 flashes/sec) provide precise control over lighting output. Fan cooling ensures reliable operation during extended use.

Suitable for

• Stage lighting for concerts, theaters, and performances
• Event lighting for weddings, parties, and corporate events
• Architectural accent lighting for buildings and installations
• Disco and nightclub lighting
• Mobile DJ setups

Key specifications

• Light Source: 12x 4W RGBA LEDs
• Total LED Power: 48W
• Beam Angle: 25°
• DMX Channels: 4, 6, 8, 10, 12, 16, 20, 48, 52
• Control Modes: DMX512, Auto, Sound Active, Master/Slave
• DMX Connectors: 3-pin XLR In/Out
• Power Connectors: PowerCon In/Out
• Power Supply: AC 100-240V, 50/60Hz
• Max Power Consumption: 60W
• Dimmer: 0-100% linear electronic dimmer
• Strobe: Variable electronic strobe (1-20 flashes/sec)
• Display: 4-button LED digital display
• Housing Material: Aluminum alloy
• IP Rating: IP20 (Indoor use)
• Cooling: Fan cooling
• Mounting: Dual mounting brackets
• Color Mixing: RGBA (Red, Green, Blue, Amber)
• Pixel Control: Individual pixel control

Recommendations

For optimal performance, use a DMX controller to unlock full pixel mapping capabilities. Ensure adequate ventilation around the fixture to prevent overheating. Suitable for indoor use only.
