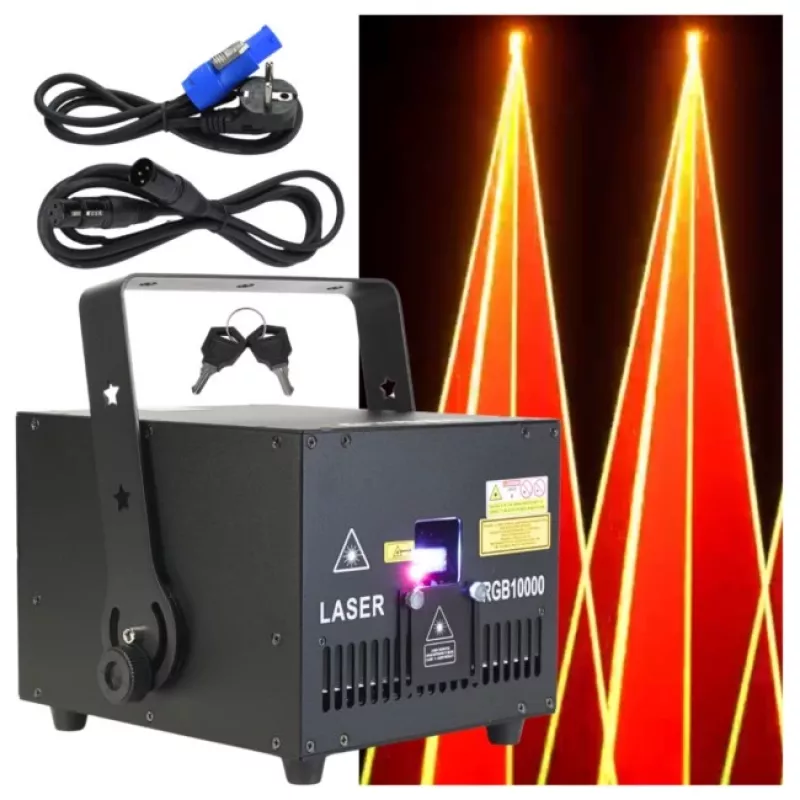

EVOLIGHTS LASER 10W RGB V2 Professional Stage Laser

The EVOLIGHTS LASER 10W RGB V2 is a professional-grade stage laser system delivering a total output of 10 watts across red, green, and blue diodes. Designed for clubs, concerts, and large events, it offers versatile control options including DMX512, ILDA, auto, sound-active, and master/slave modes. The laser features a high-speed 40kpps scanner for smooth and complex patterns, with a maximum scan angle of 60 degrees. Its robust aluminum alloy housing ensures durability, while air cooling maintains optimal performance during extended use.

Advantages

High power 10W RGB output for bright, vivid projections. Analog modulation for precise color mixing. Multiple control modes for flexible integration. Safety features include key lock, interlock, and emergency stop port. Compact and durable design suitable for touring.

Suitable for

• Nightclubs and discos
• Concerts and live performances
• Corporate events and trade shows
• Theme parks and attractions
• Rental and staging companies

Key specifications

• Total Laser Power: 10W (RGB)
• Red: 2500mW @ 638nm
• Green: 3500mW @ 520nm
• Blue: 4000mW @ 450nm
• Scanner Speed: 40kpps @ 8° ILDA
• Max Scan Angle: 60°
• Beam Diameter: <5mm
• Beam Divergence: <1.2mrad
• Control: DMX512 (12/25 ch), ILDA, Auto, Sound Active, Master/Slave
• Power: AC 100-240V, 50/60Hz, 180W
• Cooling: Air cooling
• Housing: Aluminum alloy
• Operating Temperature: 10°C - 40°C

Recommendations

For optimal performance, use with a compatible DMX controller or ILDA software. Ensure proper ventilation and adhere to local laser safety regulations. Always use the provided safety features including key lock and interlock.
