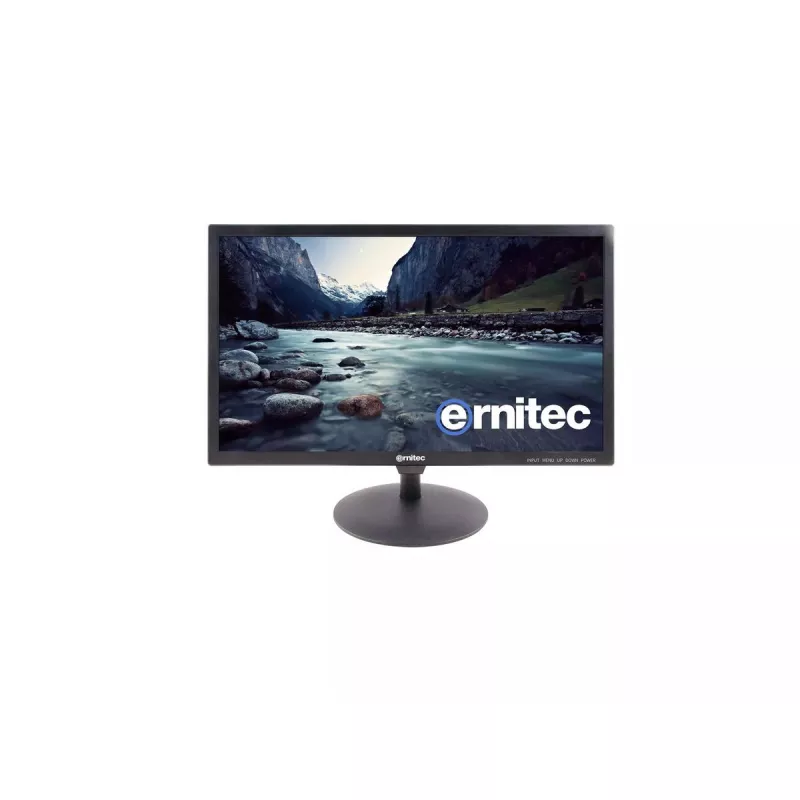

Ernitec 0070-24222-AC computer monitor 55.9 cm (22 inch) 1920 x 1080 pixels Full HD LED Black

The Ernitec 22 inch surveillance monitor (model 0070-24222-AC) is a Full HD TFT-LED display designed for continuous 24/7 use in security and surveillance environments. It offers a 1920 × 1080 resolution, 16:9 aspect ratio and multiple video inputs including BNC to connect analogue cameras directly. The monitor supports PAL/NTSC/SECAM colour systems and provides built-in stereo speakers and VESA mounting for flexible installation.

Advantages

This 22" monitor provides consistent Full HD image quality with a 5 ms response time and a wide 178° viewing angle. With dual BNC inputs and one BNC output it simplifies integration with analogue CCTV systems while HDMI 2.0 and VGA add digital connectivity. The unit is designed for continuous operation (MTBF 50,000 hours), has low power consumption (≤25W) and operates across a wide temperature range (-30 to +85°C).

Suitable for

• Control rooms and security monitoring stations
• Surveillance DVR/NVR workstations with analogue cameras
• Retail, transport hubs and building security points
• Environments requiring continuous 24/7 display operation

Key specifications

• Screen size: 22 inches; Active area: 476.64 × 268.11 mm
• Resolution: 1920 × 1080 (Full HD); Aspect ratio: 16:9; Panel: TFT-LED
• Brightness: 250 cd/m²; Contrast ratio: 1000:1; Colour depth: 16.7 million
• Pixel pitch: 0.248 × 0.248 mm; Response time: 5 ms; Viewing angles: 178°/178°
• Inputs: 1× HDMI 2.0, 1× VGA, 2× BNC in; Outputs: 1× BNC out; Speakers: 2×3W
• Video: PAL/NTSC/SECAM, 3D comb filter, video noise reduction
• Power: DC 12V, 50/60Hz; Power consumption: ≤25W; Working temperature: -30 to +85°C
• Mounting: Stand or VESA 100×100; Weight: 3.5 kg; MTBF: 50,000 hours
• OSD languages: English, French; EDID: not compatible

How to use

Mount the monitor on a desk stand or using a VESA 100×100 bracket. Connect power using the DC 12V supply and select the required input (BNC for analogue camera, HDMI or VGA for digital sources) via the on-screen OSD. Use the OSD controls to adjust brightness, contrast, position, colour and other image settings; the monitor also offers auto adjust and language selection features. For CCTV setups, connect analogue cameras to the BNC inputs and route video out via the BNC output if required.

Recommendations

Place the monitor in a ventilated area and avoid exposure to direct sunlight. For reliable 24/7 operation, ensure stable DC 12V power and follow the manufacturer's mounting and cabling instructions included in the quick start guide. Use the built-in noise reduction and 3D comb filter for improved analogue video quality.
