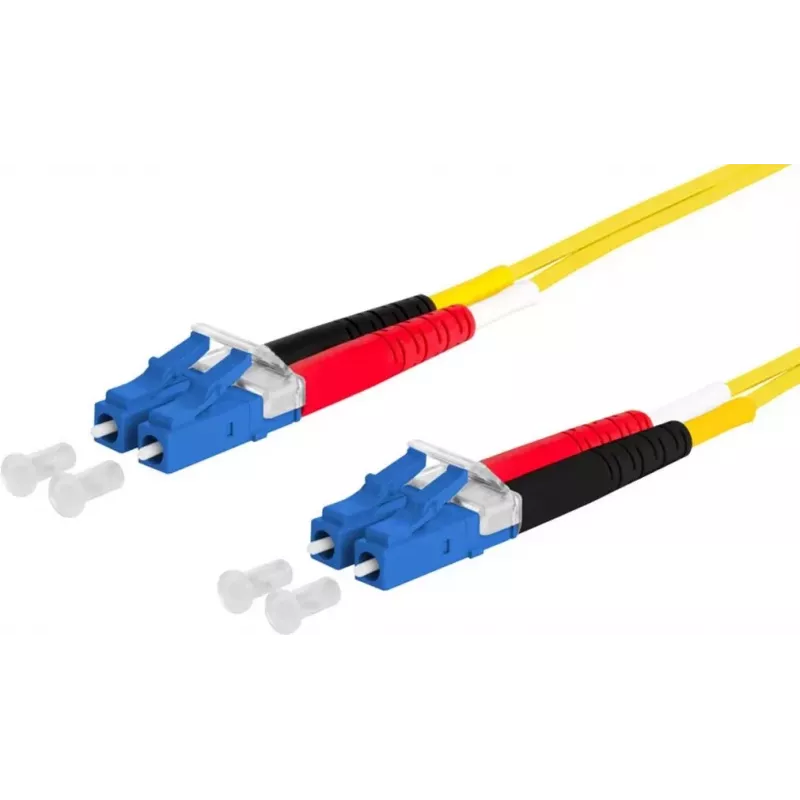

METZ CONNECT OpDAT Patch Cable LC-Duplex OS2 5m Yellow

The METZ CONNECT OpDAT patch cable is a high-performance fiber optic cable designed for reliable data transmission in demanding network environments. Featuring LC-Duplex connectors on both ends and OS2 singlemode fiber, this cable ensures low insertion loss and high return loss for optimal signal integrity. The 5-meter length provides flexibility in connecting network devices within data centers, LANs, SANs, and telecommunication networks.

Advantages

This patch cable offers exceptional performance with insertion loss ≤ 0.3 dB and return loss ≥ 50 dB, ensuring minimal signal degradation. The LSZH (Low Smoke Zero Halogen) jacket enhances safety by reducing toxic fumes in case of fire. The duplex zipcord construction provides durability and easy handling. Compliance with IEC 61754-20 and TIA/EIA-604-10 standards guarantees compatibility with standard LC interfaces.

Suitable for

• Data centers requiring high-speed, reliable fiber connections
• Local Area Networks (LAN) for backbone or server connections
• Storage Area Networks (SAN) for high-bandwidth storage links
• Telecommunication networks for long-distance, low-loss transmission

Key specifications

• Fiber Type: OS2 Singlemode
• Connector Type: LC-Duplex to LC-Duplex
• Cable Length: 5 m
• Number of Fibers: 2
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Insertion Loss (max): ≤ 0.3 dB
• Return Loss (min): ≥ 50 dB
• Operating Temperature: -10 to +60 °C
• Standards: IEC 61754-20, TIA/EIA-604-10, RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is ideal for use with OS2 singlemode transceivers and patch panels. Store in a clean, dry environment within the specified temperature range.
