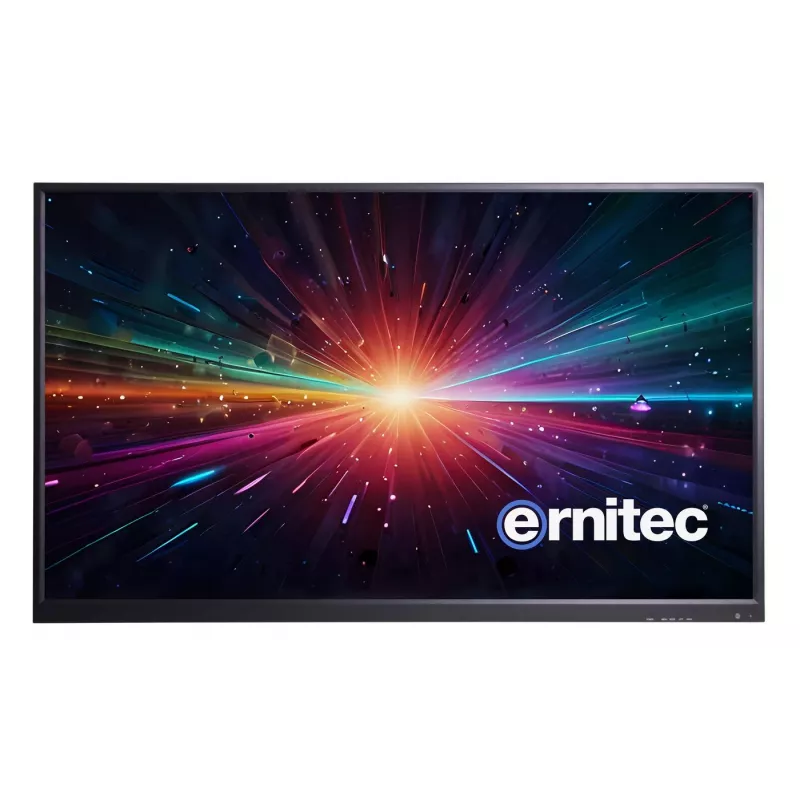

Ernitec 0070-24143-L surveillance monitor CCTV monitor 109.2 cm (43 inch) 1920 x 1080 pixels

The Ernitec 0070-24143-L is a 43-inch CCTV monitor with a 16:9 TFT-LED panel and Full HD resolution (1920 × 1080). Designed for surveillance use, the monitor offers a 941.184 mm × 529.146 mm active display area, 350 nits brightness, 1000:1 contrast ratio and a 5 ms response time. It includes built-in stereo speakers (2 × 3 W) and supports PAL/NTSC/SECAM analogue video systems. The unit accepts HDMI 2.0, VGA and BNC inputs and provides one BNC output. The monitor is powered by AC 100–240 V and has a typical power consumption of 40 W.

Advantages

The Ernitec 43" CCTV monitor provides Full HD resolution and wide 178° viewing angles for clear image reproduction across a surveillance workspace. Its range of analogue and digital inputs (HDMI 2.0, VGA, multiple BNC) and on-screen controls (auto adjust, brightness, contrast, position, color and language options) make it adaptable to mixed CCTV systems. The metal industrial power supply, VESA and stand mounting options, and an MTBF of 50,000 hours support continuous operation in monitoring environments.

Suitable for

• Control rooms and security monitoring stations
• Retail, logistics and facility surveillance
• Integration with analogue CCTV systems (PAL/SECAM/NTSC)
• Desk or VESA-mounted installations

Key specifications

• Screen size: 43 inches (active area 941.184 mm × 529.146 mm)
• Panel type and mode: TFT-LED, 16:9
• Resolution: 1920 × 1080 (Full HD)
• Display color: 1.073 billion; pixel pitch: 0.294 mm × 0.294 mm
• Brightness: 350 nits; contrast: 1000:1; viewing angle: 178°/178°
• Response time: 5 ms; backlight: LED

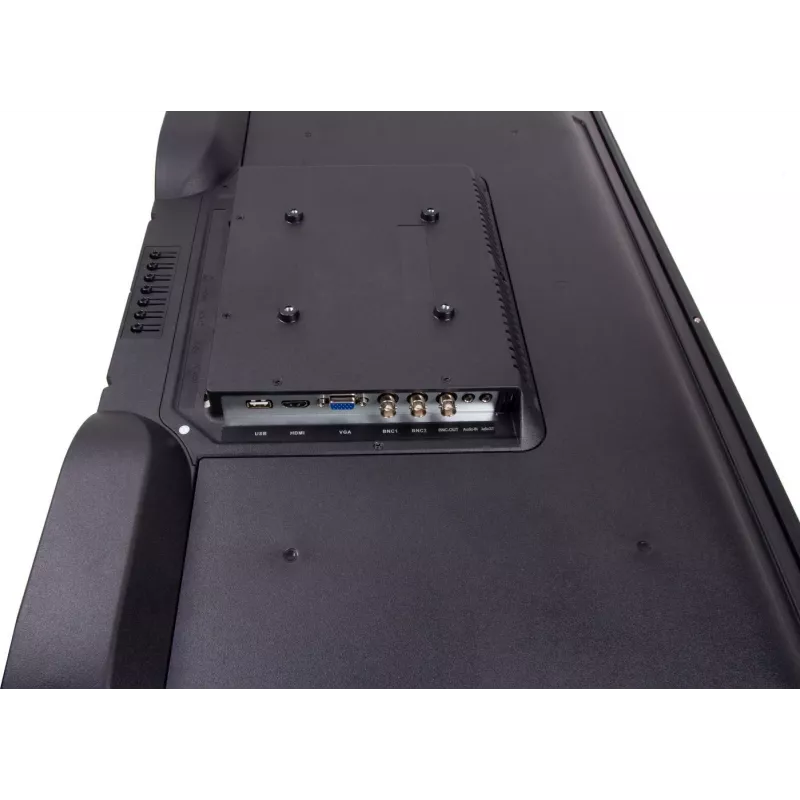

• Inputs/Outputs: 1 × HDMI 2.0, 1 × VGA, 2 × BNC input, 1 × BNC output
• Speakers: 2 × 3 W (stereo)
• Video systems and processing: PAL/NTSC/SECAM, 3D comb filter, video noise reduction, OSD controls (auto adjust, brightness, contrast, H/V position, clock, phase, color, language)
• Power supply: AC 100–240 V, 50/60 Hz; power consumption: 40 W
• Operating temperature: -30 °C to +85 °C; MTBF: 50,000 hours
• Mounting: stand mount and VESA mount
• Included accessories: industrial PSU, screws, cable holder, quick start guide

How to use

Install the monitor on a stable stand or attach it to a VESA-compatible mount according to the supplied quick start guide and screws. Connect video sources using HDMI 2.0, VGA or BNC cables as required; use the BNC output to feed a downstream recorder or monitor if needed. Connect the industrial power supply to an AC 100–240 V outlet. Use the on-screen menu to perform auto adjust and to set brightness, contrast, horizontal/vertical position, clock, phase, color and language. Adjust volume or mute via the menu when using the built-in 2 × 3 W speakers.

Recommendations

For reliable long-term operation in surveillance environments, ensure proper ventilation around the monitor, use recommended power protection (surge protector or UPS), and follow the operating temperature range (-30 °C to +85 °C). Regularly check video connections and settings to maintain optimal image quality.
