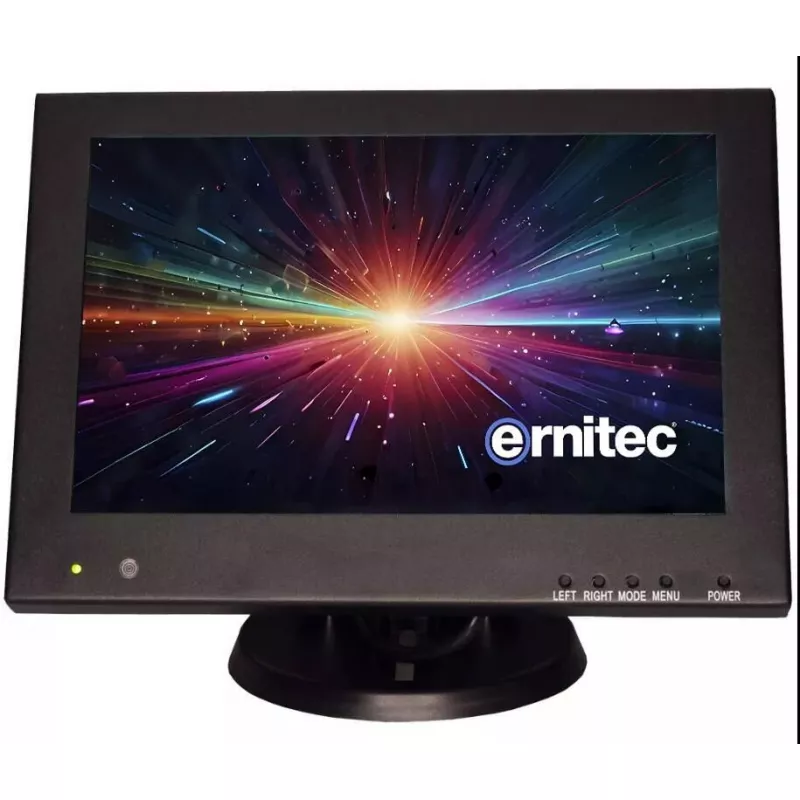

Ernitec 0070-24110-M computer monitor 25.4 cm (10 inch) 1920 x 1080 pixels Full HD LED Black

The Ernitec 0070-24110-M is a 10.1-inch Full HD LED monitor with 1920 × 1080 resolution and a 16:9 display mode. Featuring 16.7 million colors, 350 cd/m² brightness and a 4 ms response time, this compact black monitor is suitable for a range of applications including security monitoring and desktop use. It supports multiple video inputs and is designed for reliable operation in varied environments.

Advantages

This Ernitec 10.1" display offers Full HD clarity in a compact form factor, fast 4 ms response for smooth motion rendering, and broad compatibility with video signal formats (PAL/NTSC/SECAM). Multiple input options (BNC, VGA, HDMI, component) and camera support for TVI/AHD/CVI systems make it versatile for surveillance and AV setups. The monitor accepts VESA 75×75 mounting and withstands a wide operating temperature range from -30 °C to +85 °C.

Suitable for

• Security and CCTV monitoring stations
• Embedded or compact desktop displays
• Video playback and local HDMI/VGA output monitoring
• Surveillance camera testing and on-site setup

Key specifications

• Screen size: 10.1 inches
• Resolution: 1920 × 1080 (Full HD)
• Panel type: TFT, LED backlight
• Aspect ratio: 16:9
• Brightness: 350 cd/m²
• Contrast ratio (typical): 500:1
• Response time: 4 ms
• Active display area: 211.2 mm × 158.4 mm
• Pixel pitch: 0.264 mm × 0.264 mm
• Inputs: 2 × BNC, 1 × VGA, 1 × HDMI, 1 × component (Y, Pb, Pr), 1 × power
• Camera support: TVI 5MP/8MP up to 300 m; AHD 5MP/8MP up to 500 m; CVI 2MP/5MP up to 500 m
• Mounting: Stand compatible, VESA 75×75 mm
• Operating temperature: -30 °C to +85 °C
• Automatic video system support: PAL/NTSC/SECAM
• Color: Black

How to use

Connect the monitor to your video source using the appropriate input: HDMI for modern digital signals, VGA for analog PC sources, BNC for CCTV or composite connections, or component (Y, Pb, Pr) for analog component video. Power the unit through the dedicated power input. Use the on-screen display (OSD) controls to adjust brightness, contrast, horizontal and vertical position, clock, phase and color to match your installation and source. Mount the monitor on a compatible stand or attach it to a VESA 75×75 mm mount as required.

Recommendations

For surveillance and long-run deployments, set brightness and contrast to moderate levels to reduce power consumption and prolong panel life. When connecting cameras over long coaxial runs, verify the supported camera formats and maximum distances (TVI/AHD/CVI) to ensure reliable signal quality. Use HDMI for the highest-quality digital input when available.
