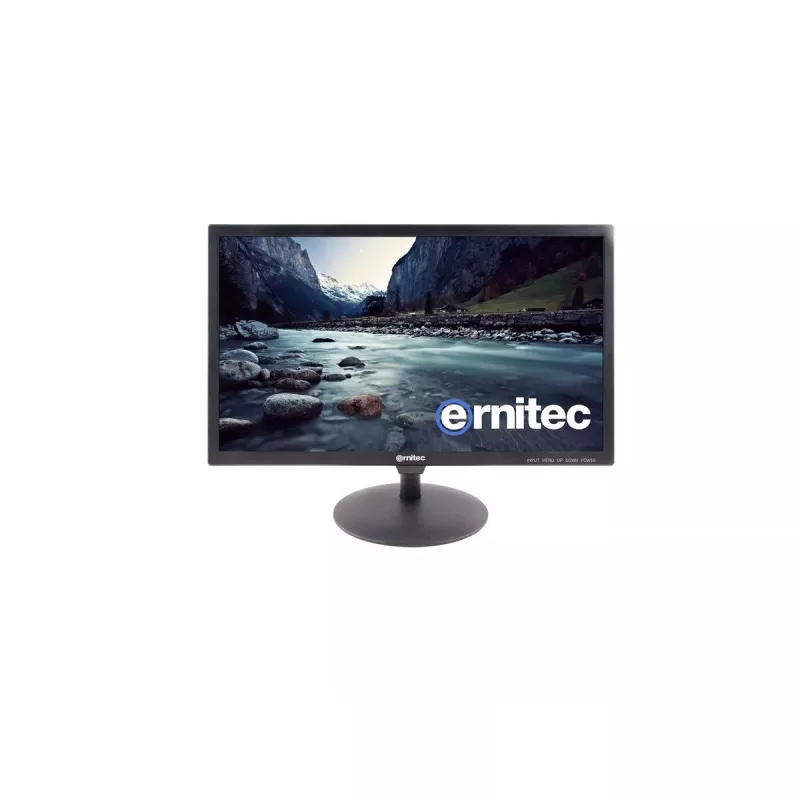

Ernitec 0070-24219-BNC computer monitor 48.3 cm (19 inch) 1920 x 1080 pixels Full HD LED Black

The Ernitec 0070-24219-BNC is a 19" Full HD LED security monitor designed for continuous 24/7 operation. It features a 1920×1080 resolution, 16:9 aspect ratio, 350 cd/m² brightness and a fast 5 ms response time. The TFT-LED panel offers wide 178° viewing angles and 16.7M colours. The unit includes BNC inputs for analog cameras, HDMI 2.0 and VGA inputs, a BNC output, built-in stereo speakers and supports VESA 100×100 mounting.

Advantages

The monitor is built for long-term surveillance use with an industrial power supply, low power consumption (≤25W) and an MTBF of 50,000 hours. Multiple video inputs including BNC make it simple to connect both analog CCTV and digital sources. The Full HD panel with 3D comb filter and video noise reduction provides clear, stable images suitable for monitoring tasks.

Suitable for

• Security rooms and control centres
• CCTV and analog camera monitoring
• Reception desks and operator stations
• Industrial environments requiring VESA mounting
• 24/7 surveillance applications

Key specifications

• Screen size: 19" (active area 386.32 × 251.03 mm)
• Resolution: 1920 × 1080, Aspect ratio: 16:9
• Panel type: TFT-LED, Colours: 16.7M, Pixel pitch: 0.248 × 0.248 mm
• Brightness: 350 cd/m², Contrast ratio: 1000:1
• Viewing angle: 178°/178°, Response time: 5 ms
• Inputs/outputs: HDMI 2.0 ×1, VGA ×1, BNC input ×2, BNC output ×1
• Audio: 2 × 3W stereo speakers
• Video features: PAL/NTSC/SECAM, 3D comb filter, video noise reduction, OSD controls
• Power: DC 12V, 50/60Hz; Consumption ≤25W; Working temperature -30 to +85 °C
• Mounting/weight: Stand mount and VESA 100×100, weight 3.5 kg
• Accessories: Industrial PSU, screws, cable holder, quick start guide

How to use

Place the monitor on a stand or install it using a VESA 100×100 mount. Connect a 12V DC power supply (included industrial PSU) and attach video sources via HDMI, VGA or BNC inputs; use the BNC input to connect analog CCTV cameras and the BNC output to loop video to another device. Use the on-screen menu to adjust brightness, contrast, position, clock, phase and colour settings. For audio, connect sources to the video inputs and use the built-in stereo speakers as required.

Recommendations

Operate the monitor within the specified temperature range (-30 to +85 °C), ensure proper ventilation for continuous 24/7 use, and use the provided industrial PSU for stable power. Regularly check cable connections and clean the screen with a soft, dry cloth.
