DELTA SPT-POE/4G-POE-DIN-E 5-Port Industrial Gigabit PoE+ DIN-Rail Switch, 4x PoE+ 30W, 60W Budget, Extender Mode, -40 to 75°C

Built for demanding edge deployments, the DELTA SPT-POE/4G-POE-DIN-E combines a rugged IP30 metal housing with a wide -40°C to 75°C operating range, making it a dependable choice for factory floors, outdoor cabinets, and transportation networks. Unlike standard office switches, this unmanaged industrial unit delivers four PoE+ ports with a 60W total budget and a dedicated uplink, all powered from a flexible 12–57V DC terminal block. Its PoE extender mode pushes data and power up to 250 meters at 10Mbps—far beyond the usual 100-meter limit—so you can reach distant cameras or sensors without extra repeaters.

Highlights

• 5 Gigabit ports: 4× PoE+ 10/100/1000Mbps RJ45 + 1× uplink
• IEEE 802.3af/at PoE with up to 30W per port, 60W total budget

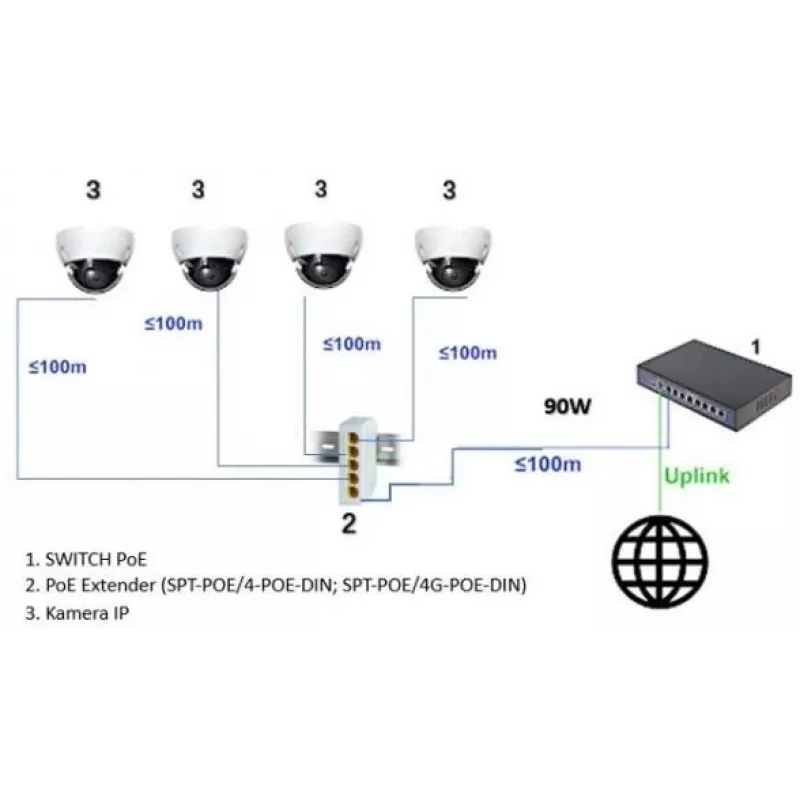

• PoE extender mode: up to 250m at 10Mbps for long-distance devices
• DIN-rail mountable, IP30 metal enclosure, fanless silent operation
• Wide operating temperature: -40°C to 75°C
• Dual DC input 12–57V via terminal block for industrial power systems
• 10 Gbps switching capacity, 7.44 Mpps forwarding rate, 2K MAC table
• Jumbo frame support up to 9K bytes
• ESD and surge protection for reliable operation
• CE, FCC, RoHS compliant

In daily use

Installation is straightforward: snap the switch onto a standard DIN rail, connect your PoE devices such as IP cameras, wireless access points, or VoIP phones to ports 1–4, and link the uplink port to your network. The auto-sensing PoE detects connected powered devices and supplies the exact wattage needed, preventing overload. LED indicators for power, link/activity, and PoE status give at-a-glance diagnostics. Because it is unmanaged, there is no configuration required—simply connect and go. The fanless design means zero noise and no moving parts to fail, ideal for noise-sensitive areas or remote sites.

Full specifications

• Ports: 5× 10/100/1000Mbps RJ45 (4 PoE+, 1 uplink)
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3af/at
• PoE budget: 60W total, 30W max per port
• Switching capacity: 10 Gbps
• Packet forwarding rate: 7.44 Mpps
• MAC address table: 2K entries
• Jumbo frame: 9K bytes
• Mounting: DIN-rail
• Enclosure: IP30 metal
• Power input: DC 12–57V terminal block
• Operating temperature: -40°C to 75°C
• LED indicators: Power, Link/Act, PoE status
• Protection: ESD, surge
• Compliance: CE, FCC, RoHS

Final note

For integrators and system builders who need a no-fuss, hardened PoE switch that survives harsh environments and extends network reach, the DELTA SPT-POE/4G-POE-DIN-E delivers industrial-grade reliability without the complexity of managed switches.
