DELTA TR-1CD*P2 Passive Video Balun Transceiver for CVBS/AHD/HD-CVI/HD-TVI, BNC to Screw Terminal, Up to 8MP 4K, 150-600m over UTP

For installers who need to send high-resolution video over existing twisted-pair cabling, the DELTA TR-1CD*P2 passive video balun transceiver eliminates the need for coaxial runs. Unlike active extenders that demand external power, this compact unit operates entirely passively, converting a 75-ohm BNC signal to a balanced signal for UTP Cat.5e/6 cable. It supports both legacy CVBS and modern HD-over-coax formats—AHD, HD-CVI, and HD-TVI—up to 8MP (4K), making it a flexible choice for upgrades and new CCTV deployments.

Highlights

• Passive design: no power supply required, reducing points of failure and installation cost.
• Supports CVBS, AHD, HD-CVI, and HD-TVI signals, with resolutions up to 8MP (4K).
• Built-in 2kV surge protection guards against voltage spikes on the video line.

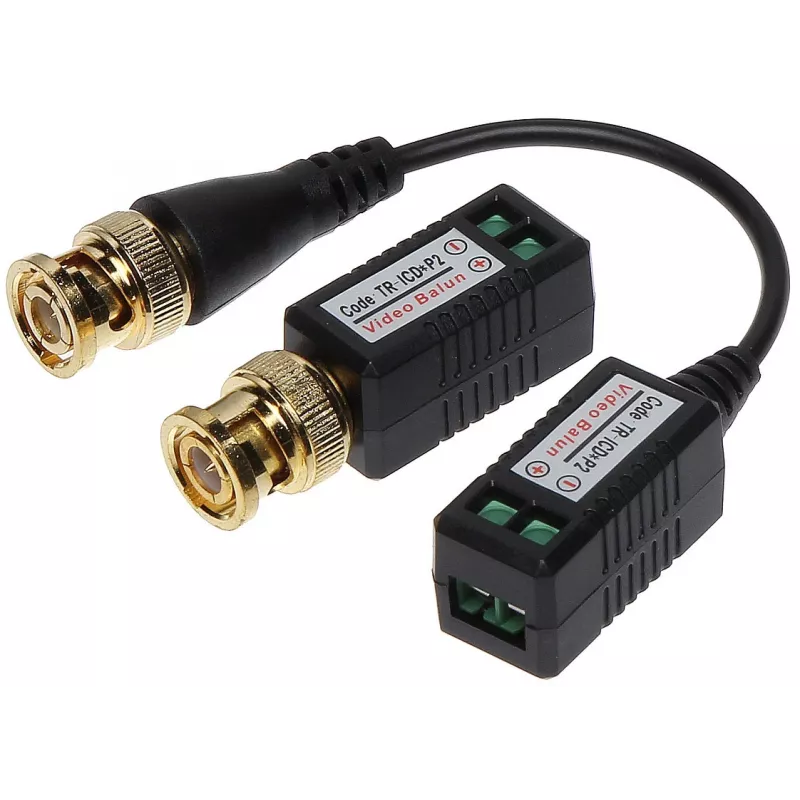

• Compact ABS housing with BNC male input and screw terminal output for quick UTP termination.
• Extended transmission distances: up to 600m for CVBS black-and-white, 300m for 720p HD, 250m for 1080p, 200m for 4MP/5MP, and 150m for 8MP.

In daily use

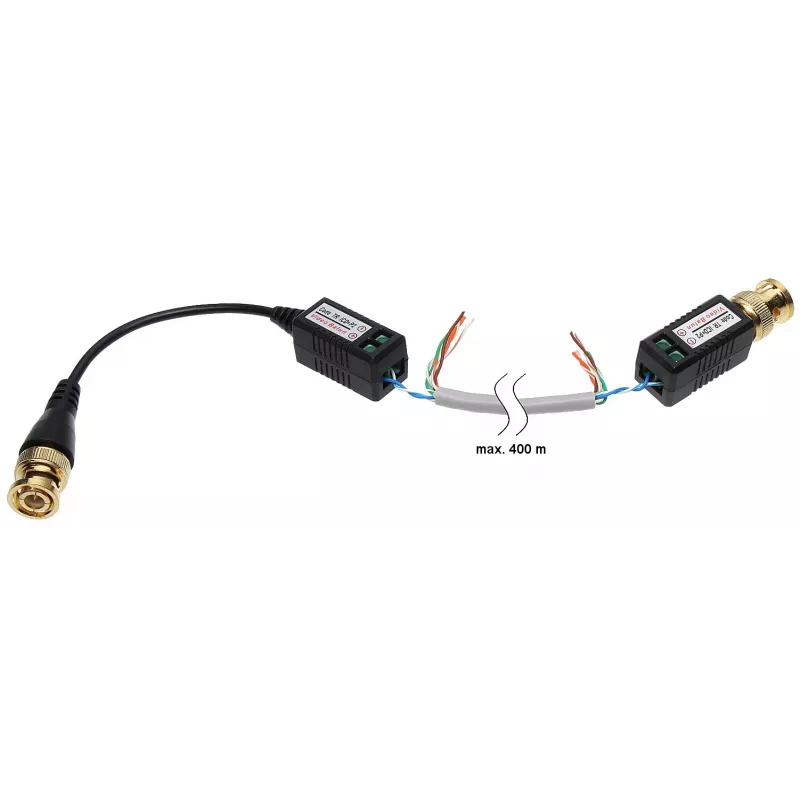

The TR-1CD*P2 connects directly to the camera's BNC output, while the screw terminal block accepts a single twisted pair from the UTP cable. At the monitoring end, a second balun (or a compatible receiver) converts the signal back to BNC for the DVR or monitor. Because the unit is passive, it introduces minimal attenuation (<0.5 dB) and maintains a high common-mode rejection ratio (>60 dB) to reduce interference. The wide operating temperature range of -10°C to +50°C suits most indoor and sheltered outdoor installations.

Full specifications

• Product type: Passive video balun / transformer
• Number of channels: 1
• Signal compatibility: CVBS (analog), AHD, HD-CVI, HD-TVI
• Maximum resolution: 8MP (4K)
• Input connector: BNC male (75 Ohm)
• Output connector: Screw terminal block (for UTP)
• Transmission medium: UTP Cat.5e/6
• Maximum distance (CVBS): 400m color, 600m B/W
• Maximum distance (720p HD): 300m
• Maximum distance (1080p HD): 250m
• Maximum distance (4MP/5MP): 200m
• Maximum distance (8MP): 150m
• Frequency response: 0-60 MHz
• Attenuation: <0.5 dB
• CMRR: >60 dB (20 kHz - 60 MHz)
• Surge protection: 2kV
• Power supply: Not required (passive)
• Operating temperature: -10°C to +50°C
• Housing material: ABS plastic

Final note

The DELTA TR-1CD*P2 is a dependable, no-frills solution for transmitting HD video over existing twisted-pair infrastructure. Its passive operation and broad format support make it a practical choice for both retrofit and new installation projects.
