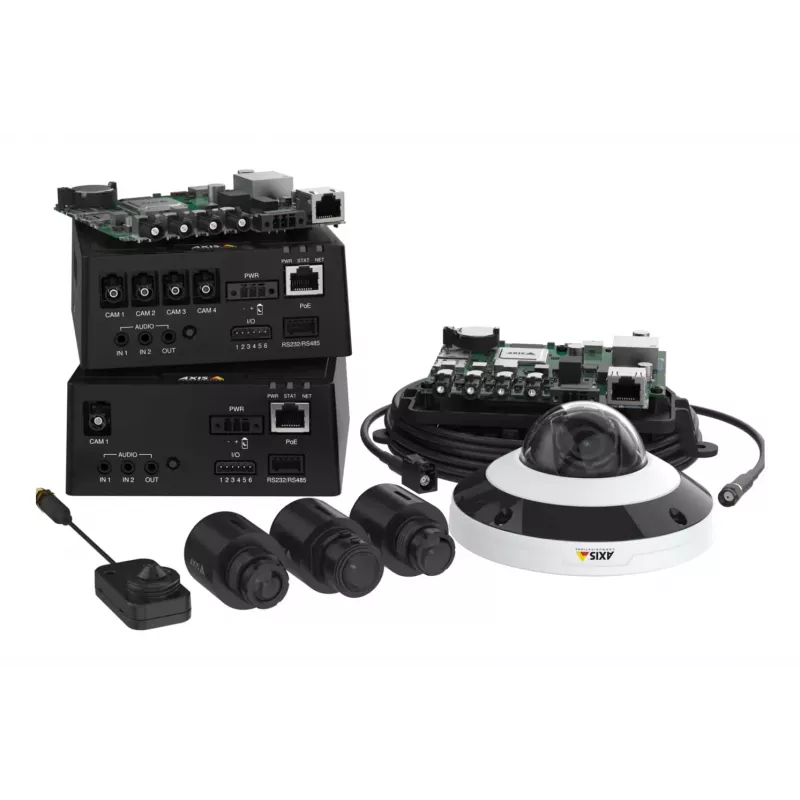

Sensor unit Axis 02641-001 CMOS 1.98mm Black

AXIS 02641-001 is a ruggedized fisheye sensor unit with a 1.98 mm focal length and a CMOS image sensor designed for use with Axis divided network camera systems. The sensor supports high-frame-rate operation when paired with compatible camera housings (for example, AXIS F2135-RE with AXIS F9111), delivering up to 1080p at 60 fps or 720p at 180 fps, a wide 185° field of view and maintained color performance in low-light conditions. The module is supplied in black and is intended for discreet installations where only a small sensor is visible externally. It is engineered to perform in harsh environments, with intermittent operating temperatures from -40 °C to 70 °C and rugged connectors to withstand vibration.

Advantages

The Axis 02641-001 sensor unit combines a very wide-angle 1.98 mm lens with CMOS imaging to enable broad coverage from a single installation point. Its ruggedized design, SMA‑FAKRA compatible cabling and support for high frame rates provide flexibility for demanding surveillance use cases. Low typical power consumption (approx. 1 W) and compact form factor allow integration into divided camera systems for discreet outdoor or indoor mounting while ensuring reliable performance across a wide temperature range.

Suitable for

• Wide-area indoor surveillance (retail, lobbies, warehouses)
• Outdoor installations requiring a discreet sensor head
• High-frame-rate monitoring where smooth motion capture is needed
• Environments with vibration or temperature extremes

Key specifications

• Manufacturer: AXIS
• Model / MPN: 02641-001
• Sensor type: CMOS
• Focal length: 1.98 mm (fisheye/wide-angle)
• Typical power consumption: 1 W; Maximum: 4 W
• Color: Black
• Field of view: up to ~185° when used in compatible fisheye camera setups
• Operating temperature (intermittent): -40 °C to 70 °C
• Connector type: compatible with SMA‑FAKRA cabling for ruggedized installations
• EAN: 7331021080737

How to use

Install the sensor unit as part of a divided Axis camera system, connecting it to the compatible camera housing or processing unit using the specified SMA‑FAKRA cables (cable runs up to 30 m / 98 ft supported). Mount the small sensor head in the desired location for discreet coverage and complete the installation by configuring the connected network camera for resolution and frame-rate settings appropriate to your monitoring needs. Ensure power and network connections follow Axis installation guidelines and verify image orientation and dewarping settings in the camera firmware if using fisheye functionality.

Recommendations

Use the Axis 02641-001 sensor unit with Axis-approved divided camera housings and cabling to maintain vibration resistance and environmental sealing. For best image results in low light, adjust exposure and image processing settings in the accompanying camera unit and keep cable runs within recommended lengths. Regularly inspect connectors and mounting points in harsh environments to ensure long-term reliability.
