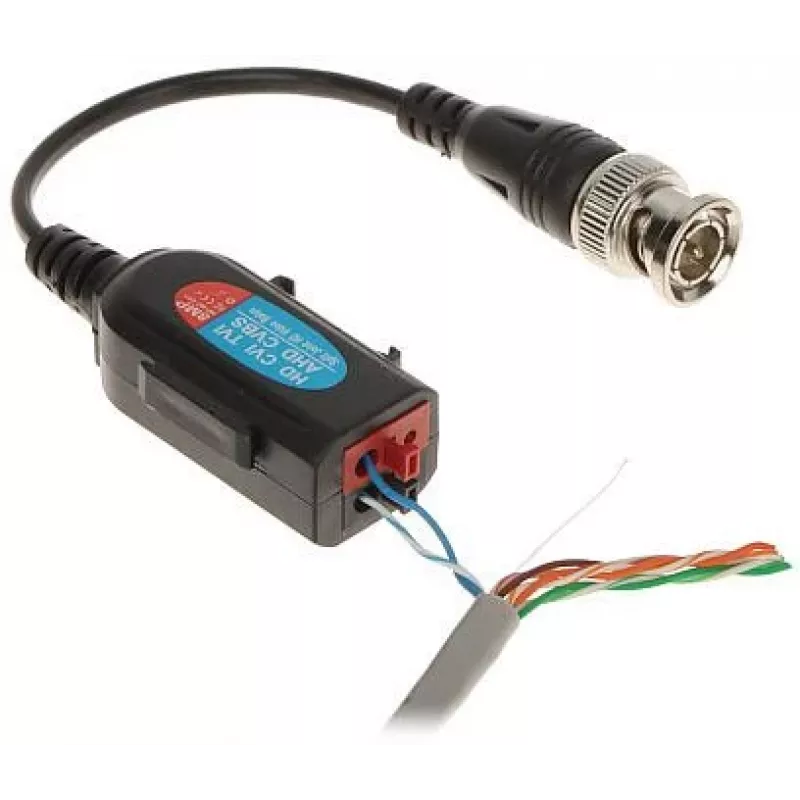

DELTA TR-1D-HD*P2 Passive HD Video Balun Transmitter Pair for HD-CVI/TVI/AHD/CVBS over UTP Cat5e/6, BNC to Terminal, up to 400m

Running HD video over long distances with coaxial cable is expensive and inflexible. The DELTA TR-1D-HD*P2 video balun pair solves this by converting an unbalanced 75-ohm BNC video signal to a balanced 100-ohm signal for transmission over ordinary unshielded twisted pair (UTP) cable such as Cat5e or Cat6. This passive device requires no external power and supports all common HD analogue formats: HD-CVI, HD-TVI, AHD, and standard CVBS. It is ideal for CCTV installations where existing network cabling can be reused, or where long cable runs make coax impractical.

Who is it for

This balun pair is intended for professional CCTV installers, security integrators, and DIY surveillance enthusiasts who need to extend analogue HD video signals over twisted pair cabling. It is especially useful in retrofit projects where UTP cable is already in place, or in new installations where pulling a single Cat5e/6 cable is more cost-effective than multiple coaxial runs.

Main features

• Passive operation – no power supply required
• Supports HD-CVI, HD-TVI, AHD, and CVBS video signals
• Transmits up to 400 m for 720p HD-CVI, 250 m for 1080p, 200 m for 4MP/5MP, and 150 m for 8MP (4K); up to 600 m for CVBS
• BNC male connector on video side, push-terminal on UTP side
• Built-in surge and ESD protection
• High interference rejection (>60 dB)
• Compact, rugged design for easy installation
• Includes two baluns (one for each end of the cable run)

Specifications

• Product type: Passive video balun / transformer
• Channels: 1-channel video
• Video signal compatibility: HD-CVI, HD-TVI, AHD, CVBS
• Supported resolutions: 720p, 1080p, 4MP, 5MP, 8MP (4K) for HD; 960H for CVBS
• Transmission medium: UTP Cat5e/Cat6
• Video connector: BNC male
• UTP connection: Push-terminal
• Max distance (HD-CVI 720p): Up to 400 m
• Max distance (HD-CVI 1080p): Up to 250 m
• Max distance (HD-CVI 4MP/5MP): Up to 200 m
• Max distance (HD-CVI 8MP): Up to 150 m
• Max distance (CVBS): Up to 600 m
• Coaxial impedance: 75 Ohm
• UTP impedance: 100 Ohm
• Built-in protection: Surge protection, ESD protection
• Interference rejection: >60 dB
• Operating temperature: -10°C to +50°C
• Power requirement: No external power required (passive)
• Units included: 2 (pair)

Tips

For best results, use solid copper UTP cable (not CCA) and avoid running parallel to high-voltage power lines. Ensure the twisted pair used for video is from the same pair to maintain signal integrity. The baluns are colour-coded or labelled for polarity – connect the video signal to the same colour terminal on both ends.
