AV transmitter & receiver PureTools PT-HDBT-1010 100m 18 Gbit/s

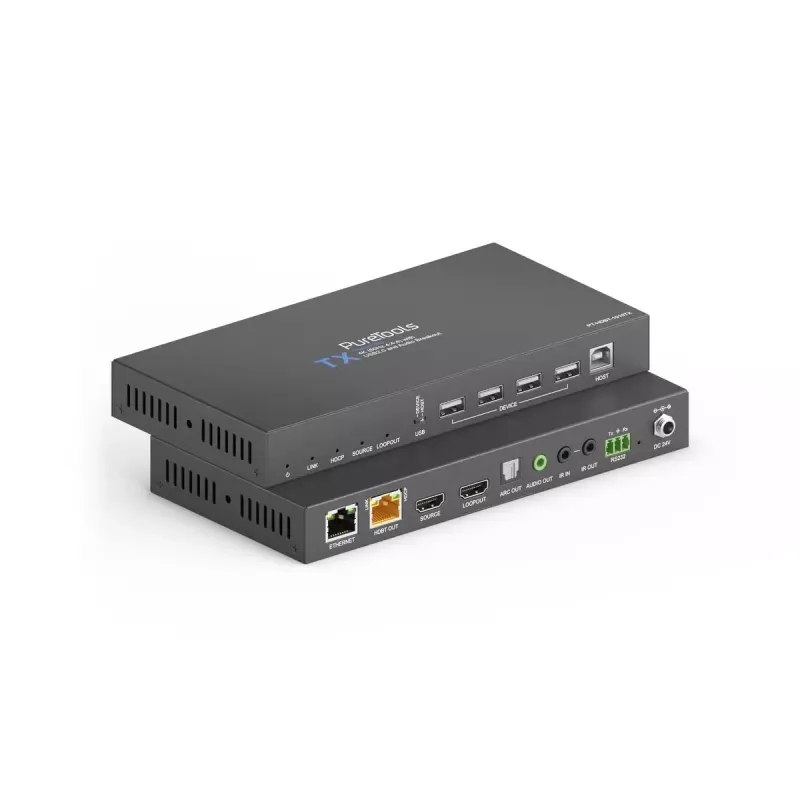

The PureTools PT-HDBT-1010 is a 4K 18Gbps HDMI HDBaseT Spec 3 extender set consisting of a transmitter (TX) and receiver (RX). It extends HDMI signals over a single Cat cable (Cat5e/Cat6a) up to 80 m for 4K@60 4:4:4 or up to 100 m for 4K@60 4:2:0. The set supports HDMI 2.0 with HDCP 2.2/1.4, provides an HDMI loop output at the transmitter for local monitoring, and offers analogue stereo de-embedding.

Advantages

The PT-HDBT-1010 delivers high-bandwidth 18 Gbit/s HDMI transmission over long distances using HDBaseT, includes bi-directional PoH/PoC power so only one unit needs external power, and supports 1G Ethernet pass-through. It integrates USB 2.0 Hi-Speed over HDBaseT via four USB-A "Device" ports and one USB-B "Host" port on each unit for KVM, storage or peripheral access. Flexible ARC handling (HDMI, S/PDIF, Pass-Through), IR in/out, RS232 control on 3‑pin Phoenix connectors, and status LEDs simplify integration and troubleshooting.

Suitable for

• AV installations requiring HDMI extension up to 100 m
• Remote USB access (KVM, USB storage, webcams) over HDBaseT
• Fixed installations with centralised power or single-PSU setups
• Setups needing ARC routing to AV receivers or S/PDIF devices

Key specifications

• HDMI version: 2.0, bandwidth: up to 18 Gbit/s
• Max. video: 4K@60 4:4:4 to 80 m / 4K@60 4:2:0 to 100 m (Cat5e/Cat6a)
• HDCP support: 2.2 and 1.4
• USB: four USB-A (Device) and one USB-B (Host) per unit; USB 2.0 Hi‑Speed (max 480 Mbps)
• Audio: HDMI, optical S/PDIF (Toslink) and analogue stereo de-embed (3.5 mm)
• Network: bi-directional 1G Ethernet pass-through
• Power: 12 V locked DC input; PoH/PoC bi-directional via HDBaseT
• Control: IR in/out (3.5 mm, dual jacks) and RS232 (3‑pin Phoenix)
• Indicators: status, HDCP, link and loopout LEDs
• Dimensions/weight: compact units; weight 1.28 kg (combined or per product data)

How to use

Connect the HDMI source to the transmitter HDMI input and, if required, use the transmitter HDMI loop output for a local monitor. Link TX and RX with a suitable Cat cable (Cat5e/Cat6a) to the required distance. Set the DIP switches on each unit to choose USB Host/Device roles and select the ARC mode (HDMI, S/PDIF or Pass-Through) on the receiver. Attach USB devices to the USB-A ports and the processing PC to the USB-B host port as needed. Power one unit with the supplied 12 V adapter; the other unit can receive power over HDBaseT if PoH/PoC is used.

Recommendations

Use Cat6a cables for maximum distance and signal stability at 4K@60 4:4:4. For USB 3.x devices expect operation at USB 2.0 Hi‑Speed (up to 480 Mbps). When routing ARC audio, choose the appropriate ARC mode on the receiver to match your AV receiver or sound system. Secure the 12 V connectors with the screw caps provided and verify link and HDCP LEDs during setup.
