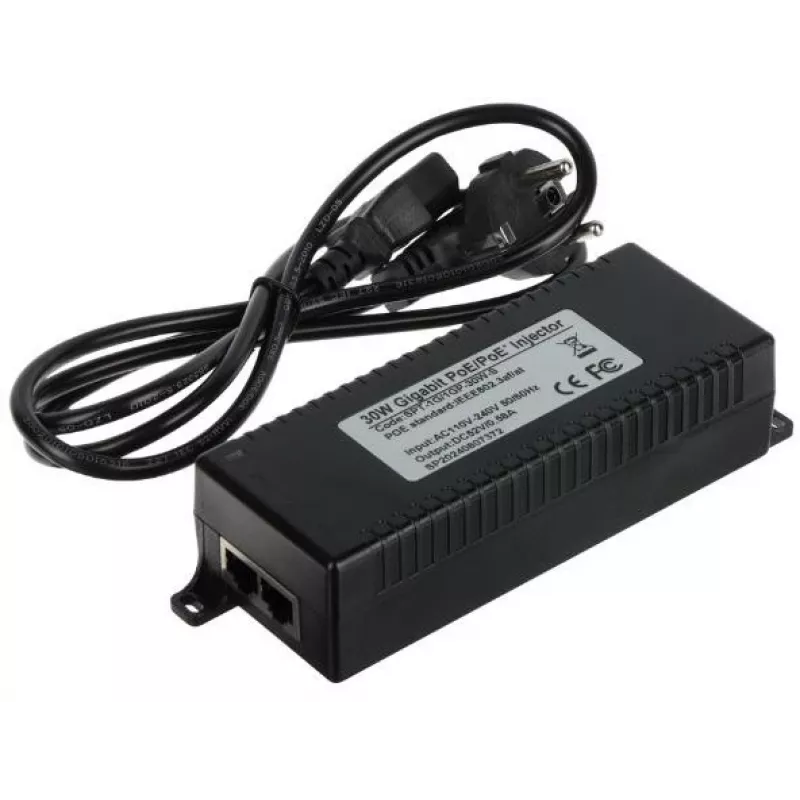

DELTA SPT-1G/1GP-30W-S PoE+ Injector 30W Gigabit

Need to power an IP camera or wireless access point where there's no electrical outlet? The DELTA SPT-1G/1GP-30W-S solves that problem instantly. This single-port Gigabit PoE+ injector blends both power and data into one Ethernet cable, giving you the freedom to place network devices exactly where they belong.

Key specifications

• PoE standard: IEEE 802.3af/at (PoE and PoE+) with up to 30W output
• Ethernet data rate: 10/100/1000 Mbps (Gigabit)
• Ports: 1 PoE output, 1 data input
• Input voltage: AC 100-240V; Output: DC 52V / 0.57A
• Protections: overcurrent, overvoltage, short-circuit
• Operating temperature: -10°C to 45°C; storage: -20°C to 70°C

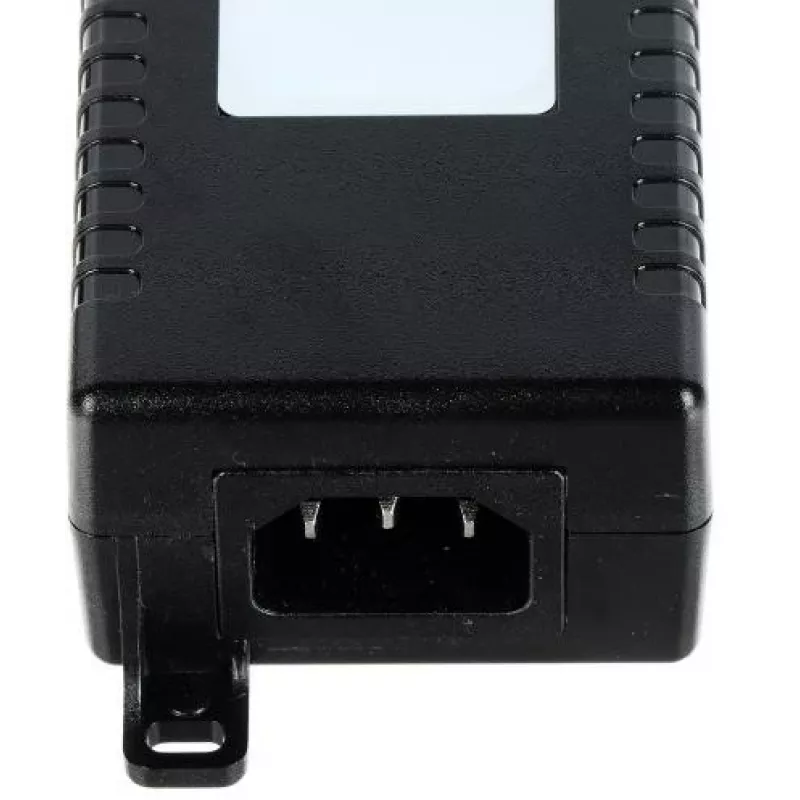

• Power connector: IEC C14 (standard AC inlet)
• Certifications: CE, FCC

Why choose it

Speed is where this injector stands apart. Many entry-level PoE devices are capped at 100 Mbps, but the SPT-1G/1GP-30W-S supports full Gigabit throughput, ensuring your high-bandwidth applications like video streaming and real-time surveillance run without bottlenecks. The generous 30W power budget can drive power-hungry equipment such as PTZ cameras, multi-radio access points, and video phones. And because it's plug-and-play, installation takes minutes—no software or configuration required.

Ideal use cases

• IP security cameras and NVR setups
• Wireless access points (including 802.11ac/ax)
• VoIP phones and door entry systems
• Any PoE-powered device needing up to 30W

Good to know

The injector delivers power over the spare pairs (Mode B, pins 4/5 and 7/8), which is fully compatible with all standard PoE devices. Pair it with your existing non-PoE switch or router, connect the power cord, and you're ready to go. The compact plastic housing can be placed on a desk or mounted to a wall using the included mounting slots. If you're decentralising your network or adding remote nodes, this is the straightforward, reliable power source you're after.
