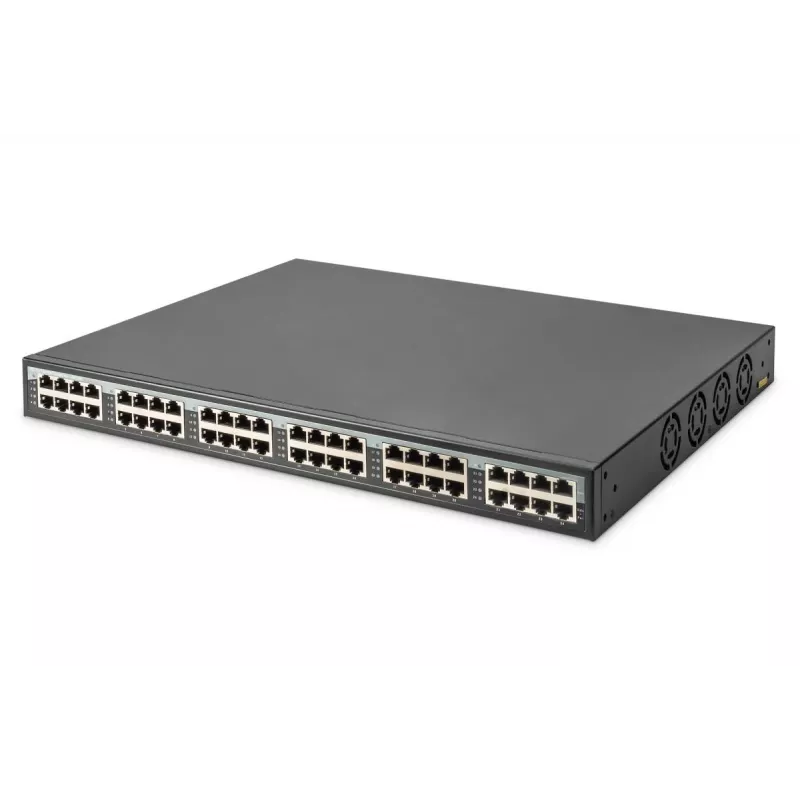

PoE Injector Digitus DN-95117 24 Port Gigabit Ethernet 370W

The DIGITUS DN-95117 PoE Injector is a 24-port Gigabit Ethernet mid-span device that supplies data and power to PoE-capable equipment. Designed for rack mounting in a 1U form factor, it delivers a total power budget of 370 W and supports IEEE 802.3af and IEEE 802.3at standards to power devices such as IP cameras, access points and IP telephones.

Advantages

This PoE injector provides 24 Gigabit Ethernet ports with PoE+ support, offering up to 30 W per port and a shared maximum budget of 370 W. It supports automatic surge protection and full Gigabit speeds for each port. The unit is compatible with IEEE802.3af and IEEE802.3at standards and is suitable for rack installation, reducing separate power cabling for connected devices.

Suitable for

• Powering PoE access points in office or public environments
• Supplying PoE IP cameras for surveillance systems
• Providing power to PoE IP telephones and other IEEE802.3af/at devices
• Centralized PoE deployment in server rooms or network closets

Key specifications

• Ports: 24 x Gigabit Ethernet (10/100/1000) RJ-45
• PoE standard: IEEE 802.3af / IEEE 802.3at (PoE+)
• Total PoE power budget: 370 W
• Max. power per port: up to 30 W
• Form factor: 1U rack-mountable
• 10G support: No
• Colour: Grey
• Weight: 4.39 kg

How to use

Install the DN-95117 in a standard 19" rack using the included brackets. Connect the network source (switch or uplink) to the injector's input ports and connect the output ports to your PoE devices with standard Ethernet cables (Cat5e or better recommended). Ensure the total connected load does not exceed the 370 W budget and verify device compatibility with IEEE802.3af/at to allow proper power negotiation. Observe standard safety and grounding practices during installation.

Recommendations

For reliable operation, distribute high-power devices across multiple ports to avoid exceeding the 370 W total budget. Use Cat5e or Cat6 cables for optimal Gigabit performance and keep the device in a ventilated rack space to maintain proper cooling.
