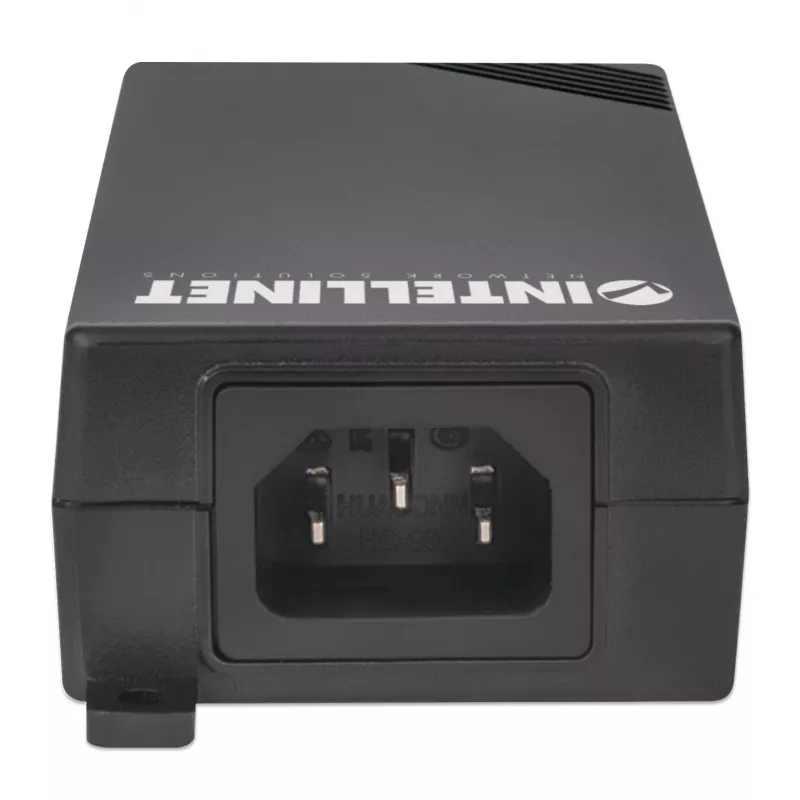

Intellinet Gigabit High-Power PoE+ Injector,1 x 30 W Port, IEEE 802.3at/af Compliant, Plastic Housing

The Intellinet Gigabit High-Power PoE+ Injector 561518 delivers power and data over existing Cat5/Cat5e/Cat6 cabling to IEEE 802.3af/at compliant Powered Devices (PD). With up to 30 W output and a Gigabit Ethernet interface (10/100/1000 Mbps), the injector allows connection of wireless access points, IP phones, network cameras and other PoE devices to non‑PoE LAN switch ports while providing protection against power faults. The compact unit is FCC, CE and UL certified and supports up to 100 m cable distance.

Advantages

This PoE+ injector supplies both DC power and network data via a single Cat5/5e/6 cable, reducing the need for separate AC power wiring at the device location. It provides up to 30 W output to support power‑hungry devices and includes built‑in protection against overvoltage, overload and short circuit to safeguard connected equipment. The gigabit Ethernet interface ensures full data throughput for modern network devices.

Suitable for

• Wireless access points
• IP phones
• Network/IP cameras
• Other IEEE 802.3af/at powered devices

Key specifications

• Standards: IEEE 802.3at/af
• Output power: up to 30 W
• Data rate: 10/100/1000 Mbps (Gigabit Ethernet)

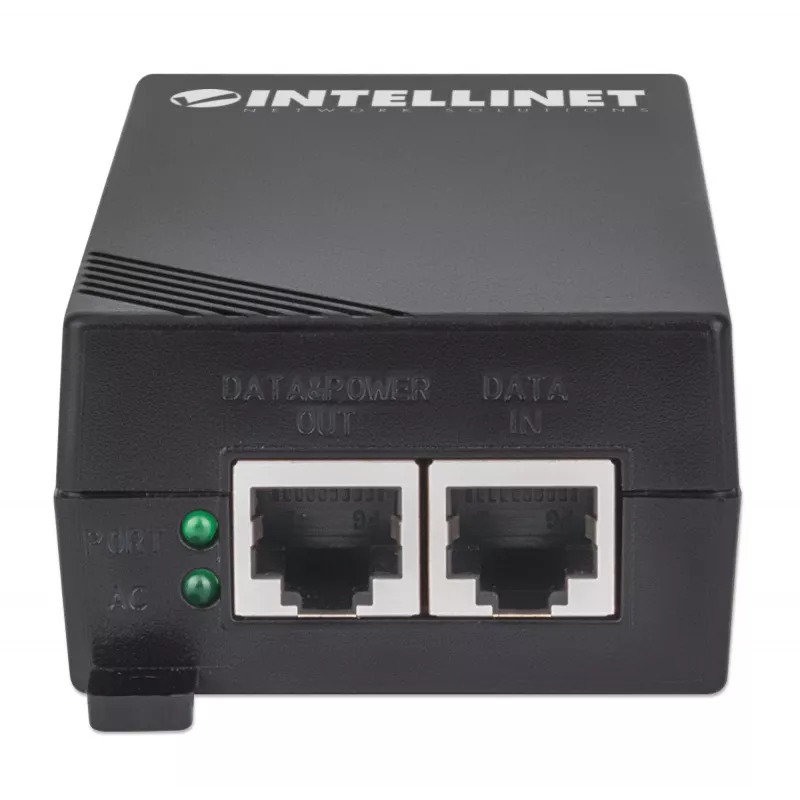

• Ports: 2 x RJ-45 (LAN in, PoE out)
• Maximum cable distance: 100 m
• Protections: overvoltage, overload, short circuit
• Dimensions: 67 x 136 x 34 mm
• Weight: 0.19 kg
• Certifications: FCC, CE, UL
• Brand / MPN / EAN: INTELLINET / 561518 / 0766623561518

How to use

Connect the injector's LAN input RJ-45 port to a non‑PoE switch port or router using standard Ethernet cable. Connect the PoE output RJ-45 port to the Powered Device using Cat5/5e/6 cable, keeping the total cable run within 100 m. Plug the injector into AC mains power to start supplying DC power and network connectivity to the PD. Verify the PD is IEEE 802.3af/at compliant before use.

Recommendations

Use Cat5e or Cat6 cabling for optimal performance, keep individual cable runs under 100 m, and ensure connected devices are compatible with IEEE 802.3af/at. Install the injector in a ventilated, dry location and avoid exposing it to extreme temperatures or moisture.
