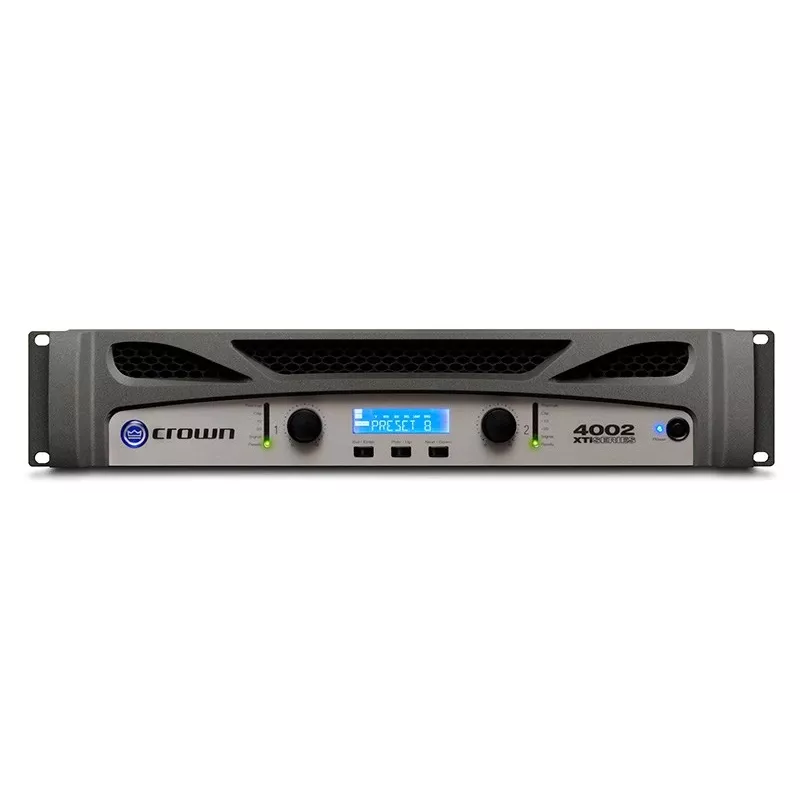

Crown XTi 4002 2-Channel Power Amplifier with DSP

The Crown XTi 4002 is a professional-grade 2-channel power amplifier designed for live sound, touring, and fixed installations. Featuring advanced DSP and high-efficiency Class D technology, it delivers robust power output while maintaining exceptional audio clarity and reliability.

Advantages

With 1200W per channel at 4Ω and 3200W bridged-mono at 4Ω, the XTi 4002 provides ample headroom for demanding applications. The built-in DSP offers comprehensive control over EQ, crossover, delay, limiting, and subharmonic synthesis, allowing precise system tuning. Its lightweight 2U rack-mountable design and efficient cooling make it ideal for portable and permanent setups.

Suitable for

• Live sound reinforcement for concerts, clubs, and theaters
• Portable PA systems for DJs and event production
• Fixed installations in houses of worship, schools, and auditoriums
• High-power subwoofer and full-range speaker systems

Key specifications

• Channels: 2
• Power Output (Stereo 4Ω): 1200W per channel
• Power Output (Bridged-Mono 4Ω): 3200W
• Frequency Response: 20 Hz - 20 kHz (+0 dB, -1 dB)
• THD: < 0.5%
• SNR: > 100 dB (A-weighted)
• Damping Factor: > 500 (20 Hz - 400 Hz)
• Inputs: 2 x XLR (balanced)
• Outputs: 2 x Neutrik Speakon NL4MP, 2 x Binding Post pairs
• Amplifier Class: D
• Rack Size: 2U
• DSP: Yes (EQ, Crossover, Delay, Limiter, Subharmonic Synth)
• Control: USB for HiQnet System Architect

Recommendations

For optimal performance, pair the Crown XTi 4002 with high-quality speakers and use the DSP to tailor the system to your venue. Ensure proper ventilation and use balanced XLR connections for best signal integrity.
