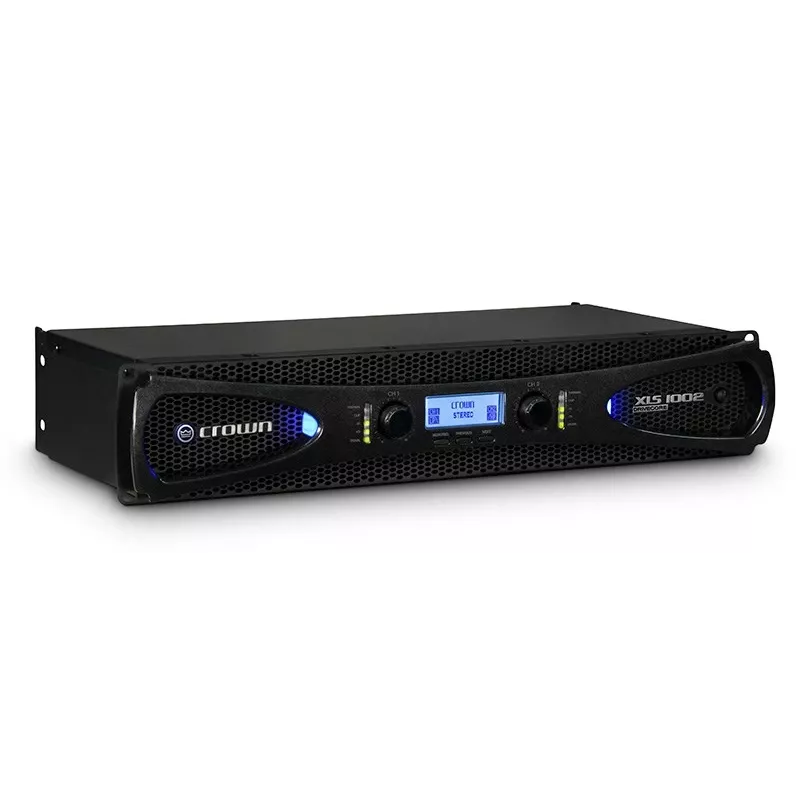

Crown XLS 1002 Power Amplifier, two-channel

The Crown XLS 1002 is a two-channel power amplifier that delivers robust, reliable power for live sound and installed audio applications. With its efficient Class D topology and advanced DSP, it provides clean, high-output performance in a lightweight 2U chassis.

Advantages

The XLS 1002 combines high power output with low distortion and a comprehensive feature set. Its PureBand™ crossover system and onboard DSP allow precise system tuning, while the universal power supply and efficient cooling ensure dependable operation in any environment. The amplifier's rugged construction and flexible connectivity make it a versatile choice for professionals.

Suitable for

• Live sound reinforcement for bands, DJs, and events
• Portable PA systems
• Installed sound in clubs, houses of worship, and conference rooms
• Monitor amplification
• Home theater and high-fidelity audio systems

Key specifications

• 2 channels, Class D amplification
• Power output: 215W per channel @ 8Ω, 350W @ 4Ω, 550W @ 2Ω
• Bridged mono: 700W @ 8Ω, 1100W @ 4Ω
• Frequency response: 20Hz - 20kHz (+0/-1 dB)
• Signal-to-noise ratio: >103 dB (A-weighted)
• THD: <0.5%
• Inputs: XLR, 1/4" TRS, RCA
• Outputs: Speakon, binding post
• PureBand™ Linkwitz-Riley 24dB/octave crossover
• DSP: crossover, EQ, delay, limiting
• 2U rack space, forced-air cooling
• Universal power supply (100-240VAC, 50/60Hz)

Recommendations

For reliable, high-quality amplification in a compact form factor, the Crown XLS 1002 is an excellent choice. Its combination of power, DSP flexibility, and rugged build makes it suitable for both touring and permanent installations.
