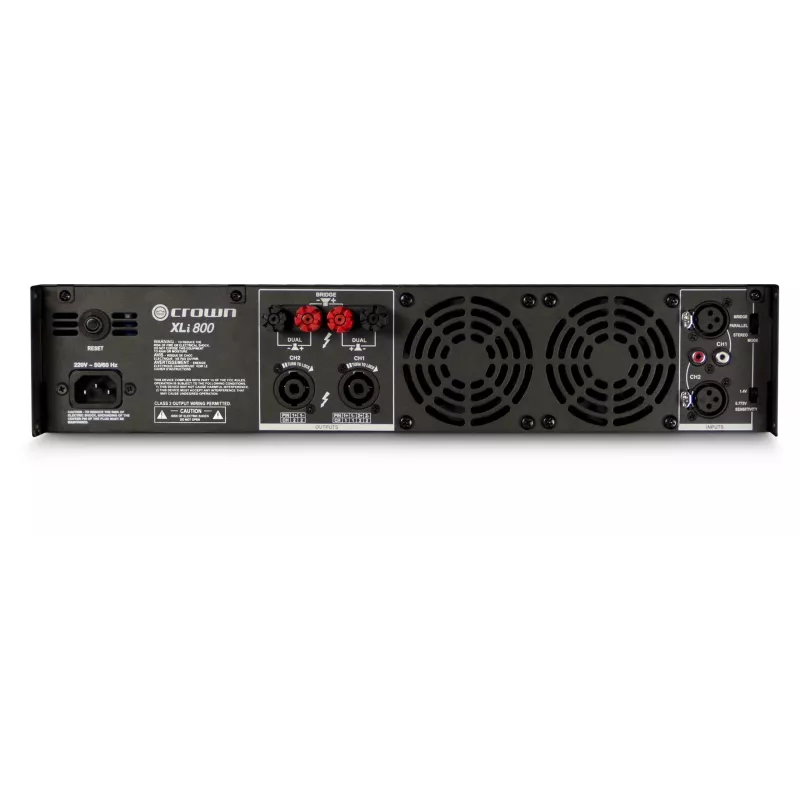

Crown XLi 800 - Two-Channel Power Amplifier

The Crown XLi 800 is a professional two-channel power amplifier designed for live sound, installations, and touring applications. With robust power output and reliable Class AB circuitry, it delivers clean audio reproduction for demanding environments.

Advantages

High power output with low distortion, versatile input and output connectivity, and comprehensive protection features ensure long-term reliability. The forced-air cooling system maintains optimal performance even under heavy load.

Suitable for

• Live sound reinforcement
• Fixed installations (clubs, houses of worship, schools)
• Portable PA systems
• Monitor amplification

Key specifications

• Channels: 2
• Power Output (Stereo, 8 Ohms): 200W per channel
• Power Output (Stereo, 4 Ohms): 300W per channel
• Power Output (Bridged-Mono, 8 Ohms): 600W
• Amplifier Class: Class AB
• Frequency Response: 20Hz - 20kHz (+0/-1 dB)
• Total Harmonic Distortion (THD): <0.5%
• Signal-to-Noise Ratio (SNR): >100 dB (A-weighted)
• Damping Factor: >200 (10 Hz to 400 Hz)
• Input Sensitivity: 0.775V or 1.4V (selectable)
• Input Impedance: 20k Ohms balanced, 10k Ohms unbalanced
• Input Connectors: XLR, RCA
• Output Connectors: Speakon, Binding Post
• Rack Space: 2U
• Cooling: Forced-air fan
• Protection Features: Short circuit, no-load, on/off thumps, RF interference, thermal
• Gain: 29 dB
• Crosstalk: >70 dB (at 1 kHz)

Recommendations

The Crown XLi 800 is an excellent choice for musicians, DJs, and sound engineers seeking a reliable and powerful amplifier for mid-sized venues and events. Its flexible input options and robust build make it a versatile addition to any sound system.
