OMNITRONIC MAVZ-240.6P 240W 6-Zone PA Mixing Amplifier with Bluetooth, USB, SD 80709789

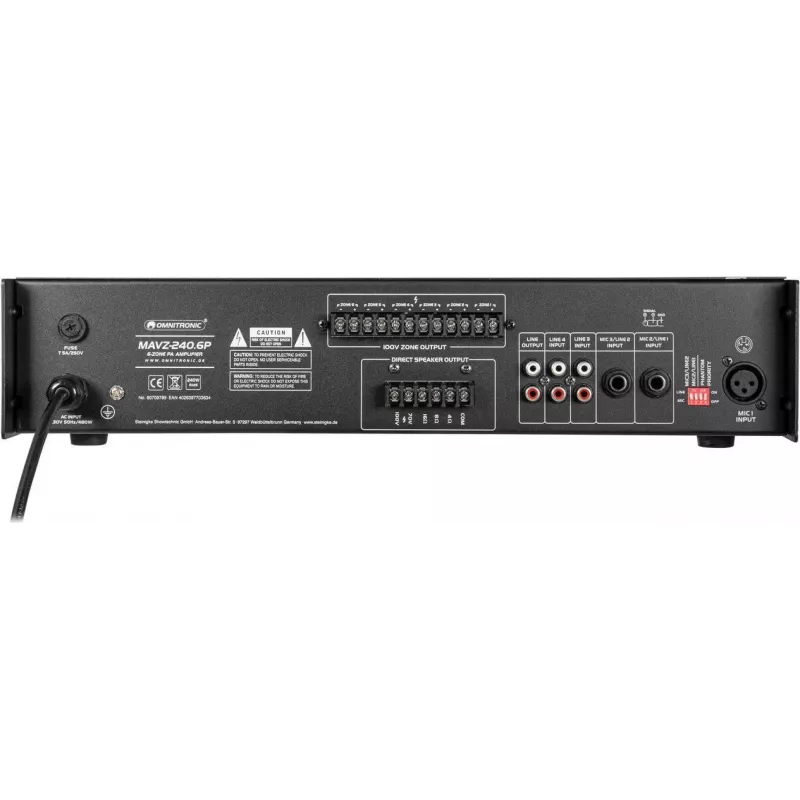

Managing audio across multiple zones in a commercial or public setting can be a challenge, but the OMNITRONIC MAVZ-240.6P solves that problem with a robust 240-watt mixing amplifier and six independently controllable zones. This 2U rack-mountable unit combines a mixer, amplifier, and media player in one, delivering clear announcements and background music to different areas from a single device.

Who is it for

This amplifier is ideal for restaurants, retail stores, schools, houses of worship, and small to medium venues that need flexible audio distribution. Installers and system integrators will appreciate its rack-mount design and comprehensive feature set, while end users benefit from simple front-panel controls and wireless streaming options.

Main features

• 240 W RMS output power with 100V, 70V, and 4-16 Ohm speaker connections
• Six individually controllable zones for targeted audio distribution
• Three balanced microphone inputs (XLR/6.3mm combo) with switchable +48V phantom power
• Two stereo RCA line inputs, one 3.5mm aux input, and one RCA emergency input
• Built-in media player with USB, SD card, and Bluetooth connectivity
• Priority function for microphone 1 and emergency input overrides other sources
• Bass and treble tone controls for sound shaping
• Protection circuits against overload, short circuit, overheating, and DC voltage
• Front-panel LED indicators and volume controls for easy operation

Specifications

• Output power: 240 W RMS
• Zones: 6 (individually controllable)
• Output options: 100V, 70V, 4-16 Ohm
• Microphone inputs: 3 x XLR/6.3mm combo (balanced)
• Line inputs: 2 x RCA stereo
• Aux input: 1 x 3.5mm jack stereo
• Emergency input: 1 x RCA
• Media player: USB, SD, Bluetooth
• Frequency response: 80 Hz - 16 kHz
• Signal-to-noise ratio (mic): >75 dB
• Signal-to-noise ratio (line): >85 dB
• Total harmonic distortion: <0.5%
• Phantom power: +48V switchable for mic inputs 1-3
• Priority function: Mic 1, emergency input
• Tone control: Bass, treble
• Protection: Overload, short circuit, over temperature, DC voltage
• Rack units: 2U
• Power supply: 230 V AC, 50 Hz
• Power consumption: 360 W

Tips

For best performance, use high-quality balanced microphone cables and ensure proper ventilation in the rack. When using 100V line speakers, set the speaker taps correctly to avoid overloading the amplifier. The Bluetooth function allows convenient wireless streaming from smartphones or tablets for background music.
