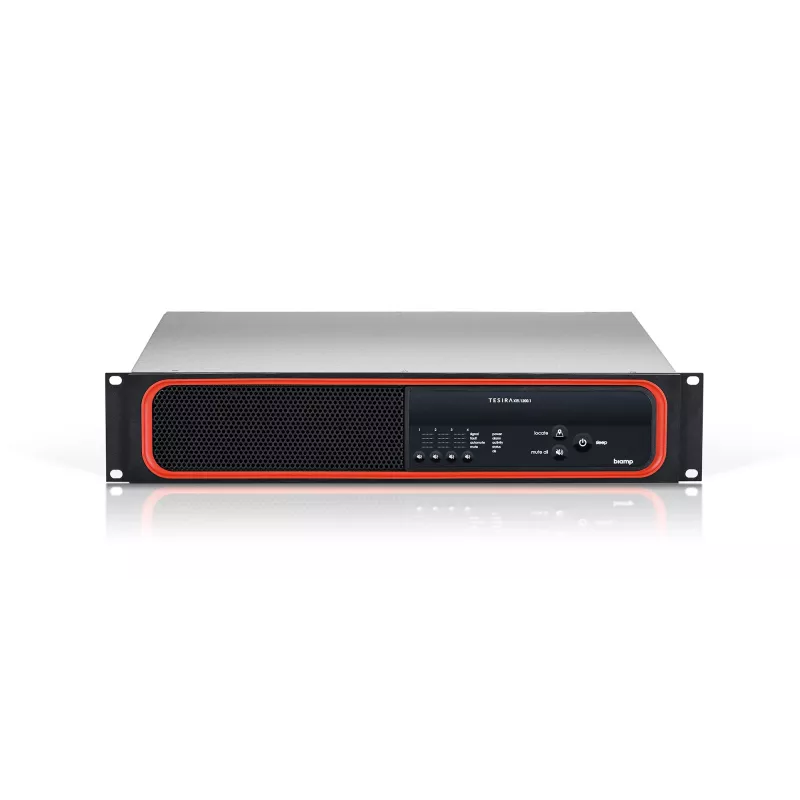

Biamp Tesira XEL 1200.1 4-channel 1200W Amplifier (Single Asymmetric Bank)

TesiraXEL™ 1200.1 is an AVB/TSN enabled, digital networked, four channel amplifier.

The 1200.1 delivers extraordinary flexibility — from power distribution, to selectable speaker impedance, to connectivity options, it’s an ideal choice. The 1200.1 leverages a unique power distribution architecture allowing users to distribute 1-100% of available power to any channel. The TesiraXEL 1200.1 also supports both selectable impedance (4Ω, 8Ω, 70V, or 100V) and delay equalization per channel, allowing for maximum design flexibility.

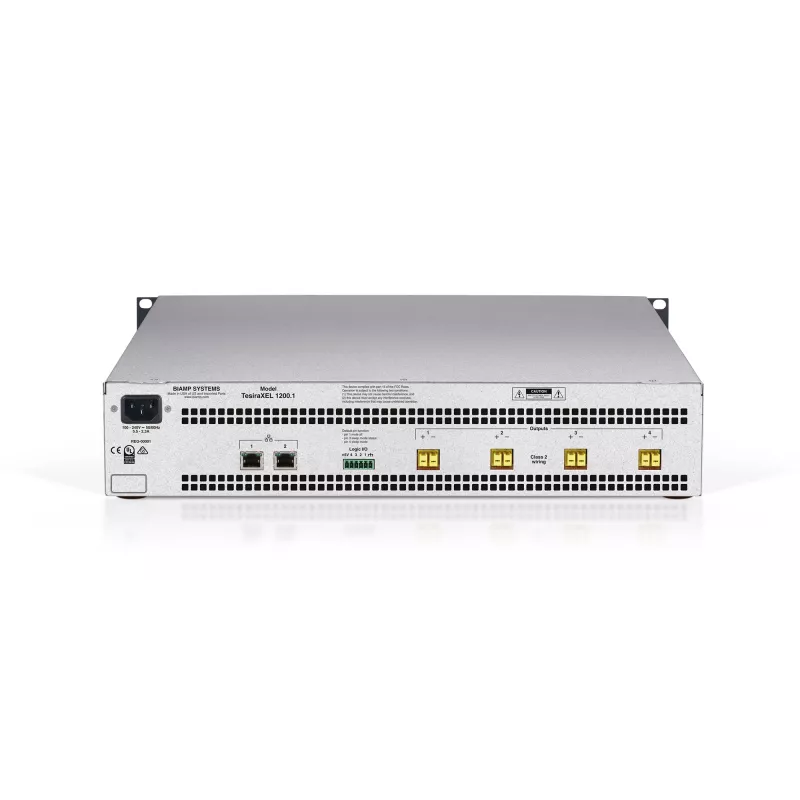

To streamline installations, the 1200.1 includes an audible locate function on the front panel to validate connected loudspeaker runs without requiring the amplifier to be configured. The TesiraXEL 1200.1 comes with a software-configurable media interface, allowing designers to choose their preferred network topology — redundancy, daisy chain, single-cable, or separate control and media are all supported.

The 1200.1 is ideal for training rooms, lecture halls, performing arts venues, houses of worship or other applications where sound distribution or reinforcement is needed.

The TesiraXEL 1200.1 complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.

Biamp Tesira XEL 1200.1 4-channel 1200W Amplifier (Single Asymmetric Bank). Audio output channels: 4.0 channels, Peak power per channel: 1200 W, Amplifier class: D. Power source type: AC, AC input voltage: 100-240 V, AC input frequency: 50/60 Hz. Width: 483 mm, Depth: 442 mm, Height: 89 mm. Package width: 228.6 mm, Package depth: 584.2 mm, Package height: 584.2 mm. Export Control Classification Number (ECCN): EAR99
