CLUB3D HDMI™ 4K@60Hz UHD Splitter AC Power 4 ports

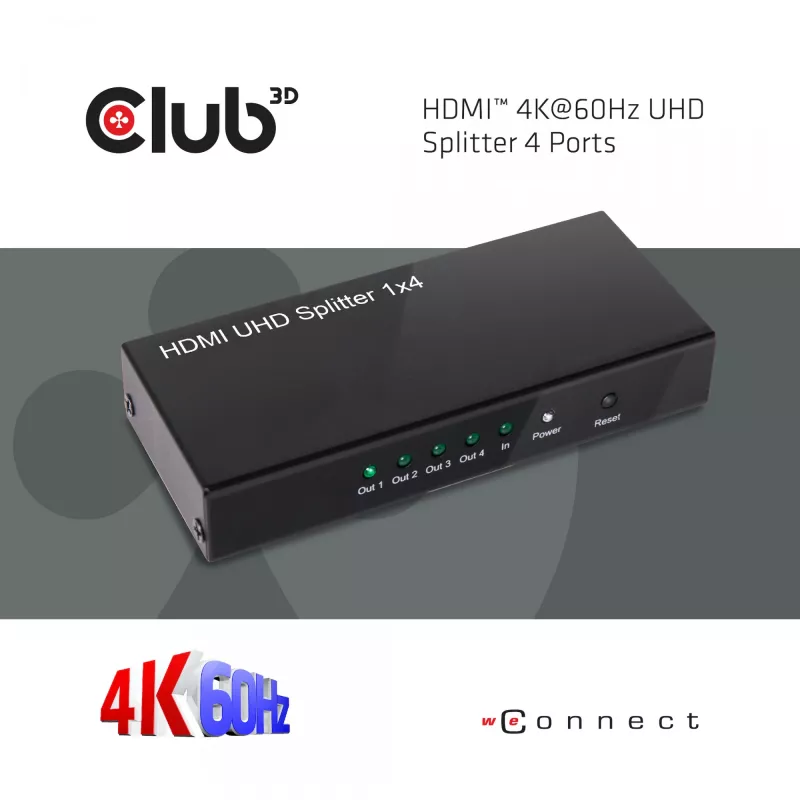

The CLUB3D HDMI Splitter 4K@60Hz UHD 4 ports (model CSV-1380) is a compact metal-bodied HDMI 2.0a device that takes a single HDMI input and distributes the video and digital audio to up to four HDMI displays simultaneously. It supports resolutions up to 4096 x 2160 at 60Hz and is designed for reliable use in home and office AV setups. The unit has a durable matte black metal casing and comes with an AC 5V power adapter.

Advantages

The splitter supports HDMI 2.0a bandwidth and 4K@60Hz output to four displays at once, ensuring consistent video and audio distribution without the need for multiple source devices. Its compact metal housing offers physical durability while keeping the footprint small (approximately 122 x 50 x 20 mm) and lightweight (about 156 g), making installation and placement flexible. The included 5V power adapter provides stable power for typical operation.

Suitable for

• Connecting one 4K source to multiple TVs or monitors
• Retail or showroom video playback across several screens
• Office presentations where the same content needs to appear on multiple displays
• Classroom or training environments requiring identical output on several projectors or screens

Key specifications

• Model: CSV-1380
• Standard: HDMI 2.0a

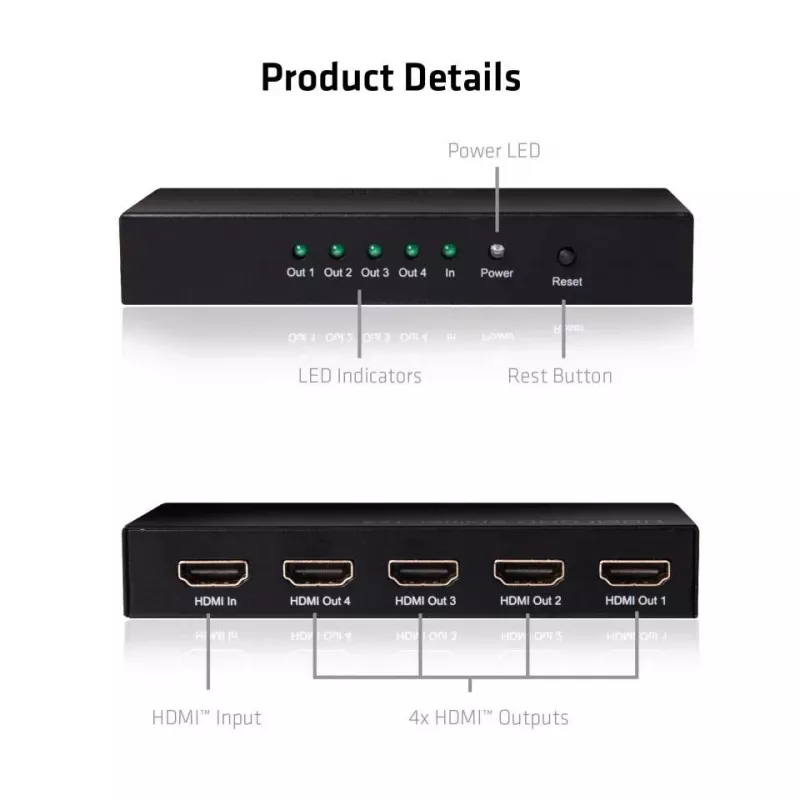

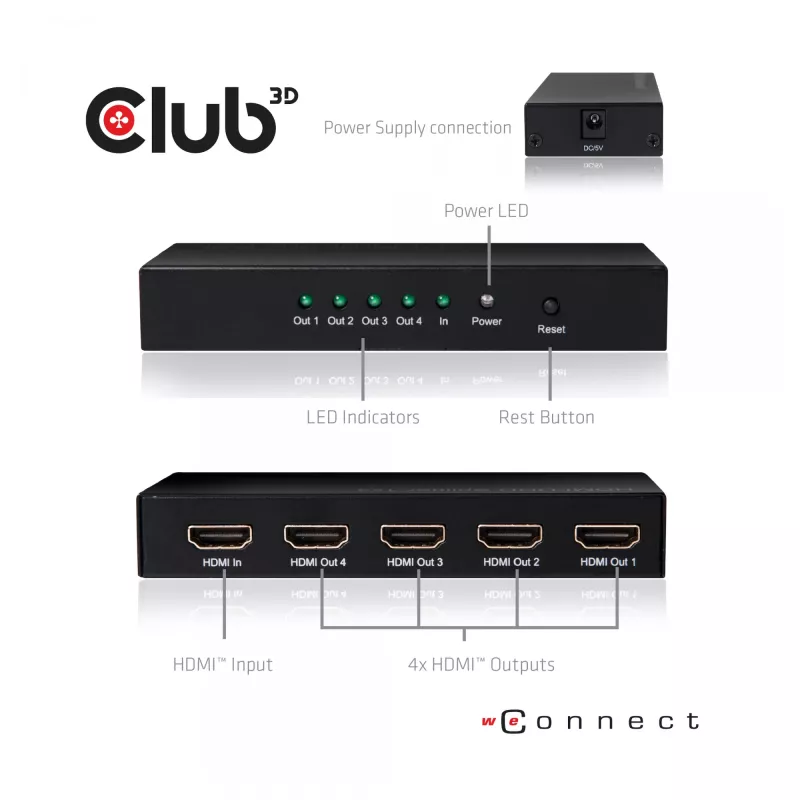

• Input: 1 x HDMI
• Outputs: 4 x HDMI
• Maximum resolution: 4096 x 2160 @ 60Hz (4K@60Hz)
• Power input: 5 V (AC adapter included)
• Typical power consumption: listed around 10 W (product data) / earlier unit spec shows 3.2 W maximum
• Housing: matte black metal
• Dimensions (approx.): 122 x 50 x 20 mm
• Weight: 0.156 kg

How to use

Connect the HDMI output of your source device (PC, Blu-ray player, media player or set-top box) to the splitter's HDMI input. Connect up to four HDMI cables from the splitter's outputs to the HDMI inputs on your displays. Plug the supplied 5V AC power adapter into the splitter and an appropriate mains outlet. Power on the source and the displays; the splitter will route the same video and audio signal to all connected outputs at the supported resolution. If a display does not support 4K@60Hz, the splitter will negotiate the highest mutually supported resolution.

Recommendations

Use good-quality HDMI cables rated for 4K@60Hz to ensure signal integrity. For longest reliable distances, consider using active HDMI cables or signal extenders if displays are far from the source. Verify that connected displays support the desired resolution and refresh rate to avoid scaling or downsampling.
