CHINT Smart Power Sensor 3Ph+N Modbus 5(80)A MID

CHINT Smart Power Sensor 3Ph+N Modbus 5(80)A MID
CHINT Smart Power Sensor 3Ph+N Modbus 5(80)A MID
CHINT Smart Power Sensor 3Ph+N Modbus 5(80)A MID
CHINT Smart Power Sensor 3Ph+N Modbus 5(80)A MID
CHINT Smart Power Sensor 3Ph+N Modbus 5(80)A MID
CHINT Smart Power Sensor 3Ph+N Modbus 5(80)A MID
CHINT Smart Power Sensor 3Ph+N Modbus 5(80)A MID
CHINT Smart Power Sensor 3Ph+N Modbus 5(80)A MID
R2,513

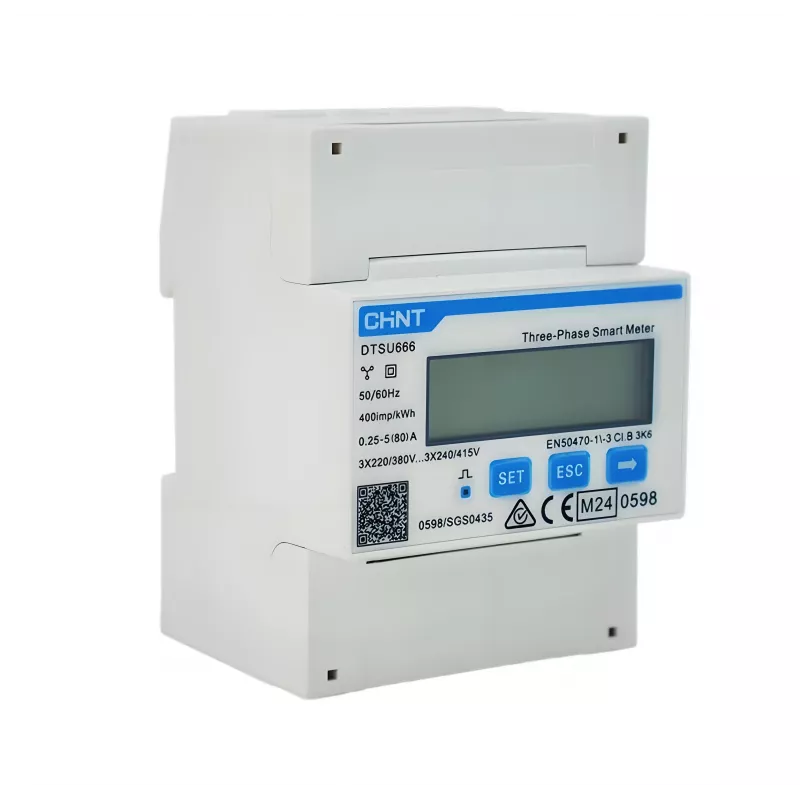

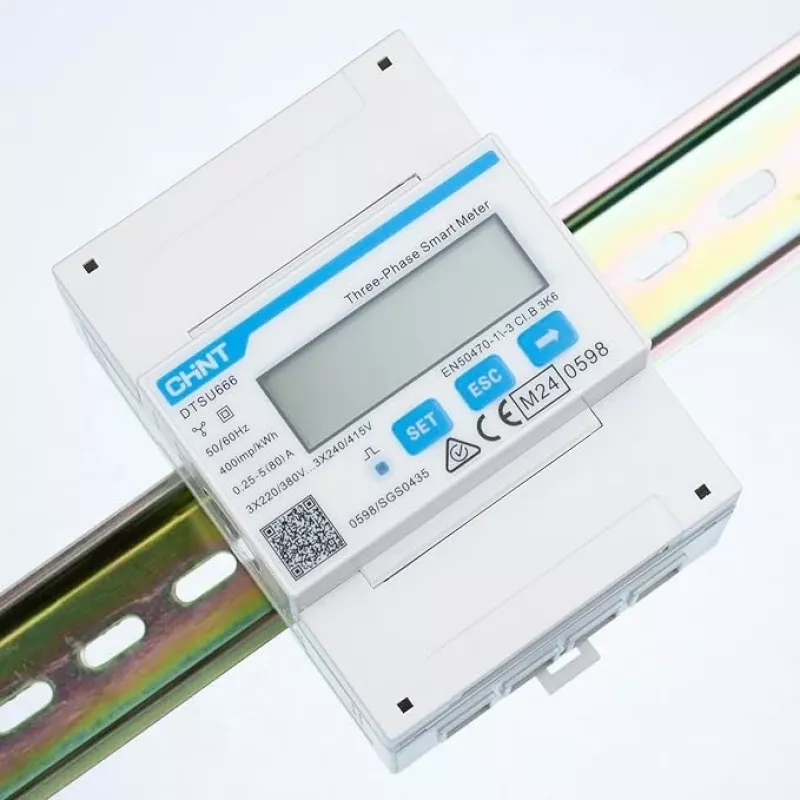

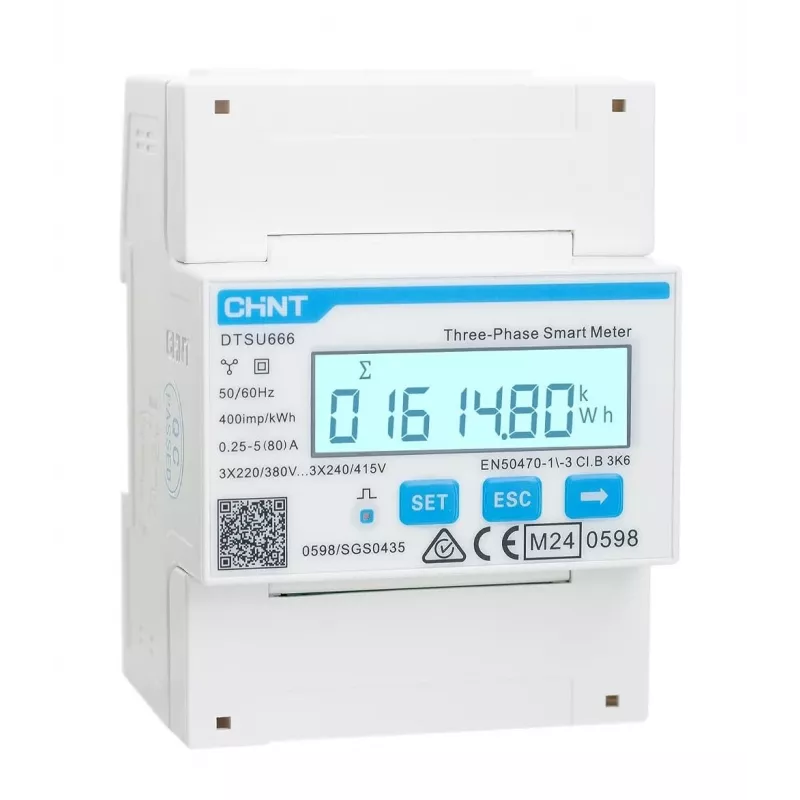

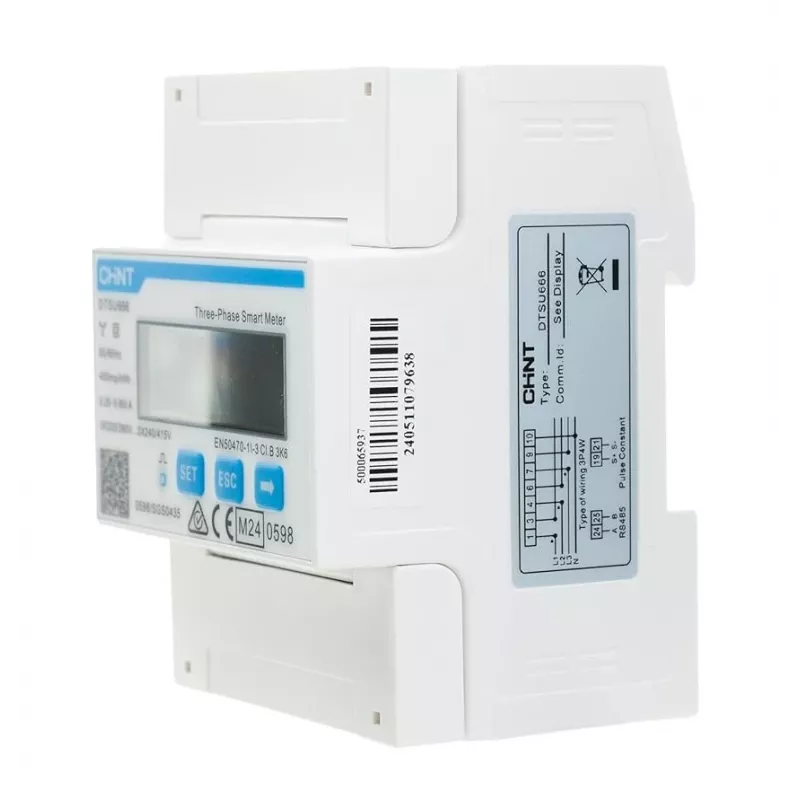

The CHINT DTSU666 Smart Power Sensor is a three-phase energy meter designed for accurate measurement and monitoring of electrical parameters in commercial and industrial installations. With direct connection up to 80A and Modbus RTU communication, it integrates seamlessly into energy management syst... Read More
Stock 5 Code 3048384 Brand CHINT Model DTSU666 Warranty 2 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The CHINT DTSU666 Smart Power Sensor is a three-phase energy meter designed for accurate measurement and monitoring of electrical parameters in commercial and industrial installations. With direct connection up to 80A and Modbus RTU communication, it integrates seamlessly into energy management systems.

Advantages

High accuracy Class 1 for active energy, MID certification for billing purposes, and easy DIN rail mounting. The LCD backlit display provides clear readings, while the RS485 Modbus interface enables remote data collection and system integration.

Suitable for

  • Sub-metering in commercial buildings
  • Industrial energy monitoring
  • Solar PV system monitoring
  • Building management systems (BMS)

Key specifications

  • Three-phase, 4-wire direct connect
  • Nominal voltage: 3x230/400V AC
  • Current range: 5(80)A
  • Frequency: 50/60 Hz
  • Accuracy: Class 1 (active), Class 2 (reactive)
  • Communication: RS485 Modbus RTU
  • Display: LCD with backlight
  • Mounting: DIN rail, 4 modules
  • Certification: MID B+D
  • Operating temperature: -25°C to +55°C

Recommendations

For optimal performance, use shielded twisted-pair cable for RS485 communication and ensure proper tightening torque (2.0 Nm) for terminals. The meter is suitable for indoor installation only.

Specifications
Accuracy
Class 1 (active), Class 2 (reactive)
Ammeter accuracy
Class 1
Brand
CHINT
Cable section
16 mm²
Category
Energy Meters
DIN rail mounting
Yes
EAN
6932103835323
Frequency range
50/60 Hz
Maximum current
80 A
Model
DTSU666
MPN
DTSU666
Operating temperature (T-T)
-25 to 55 °C
Voltmeter (RMS for each phase)
Yes
Weight
0.55 kg
