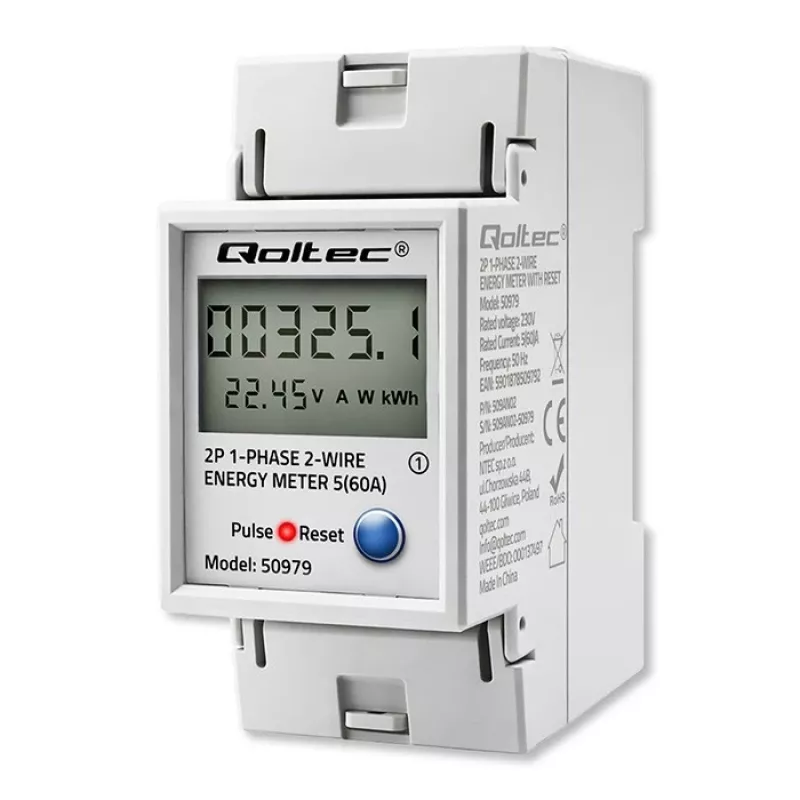

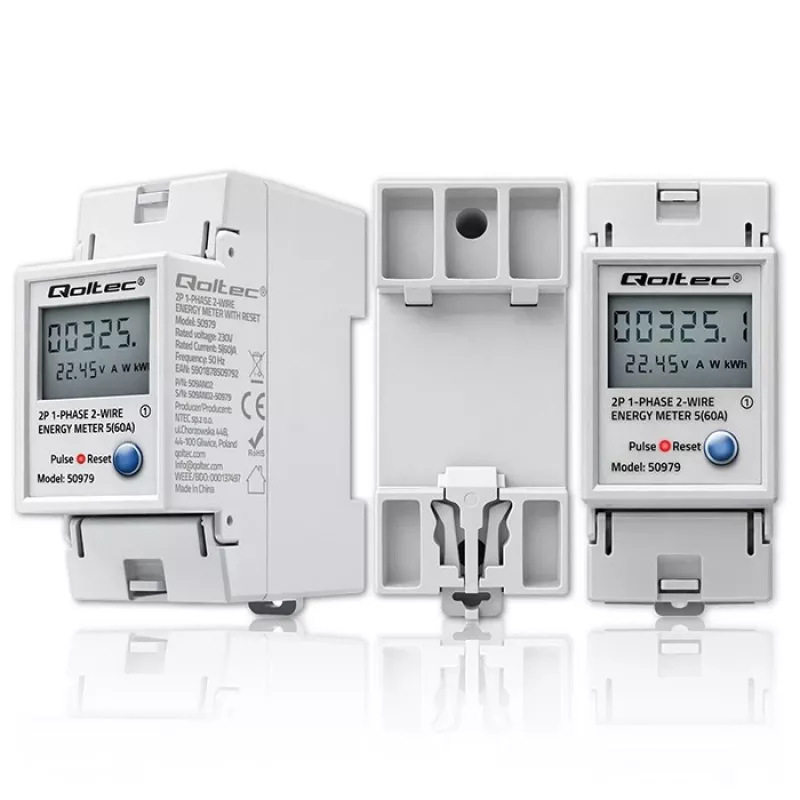

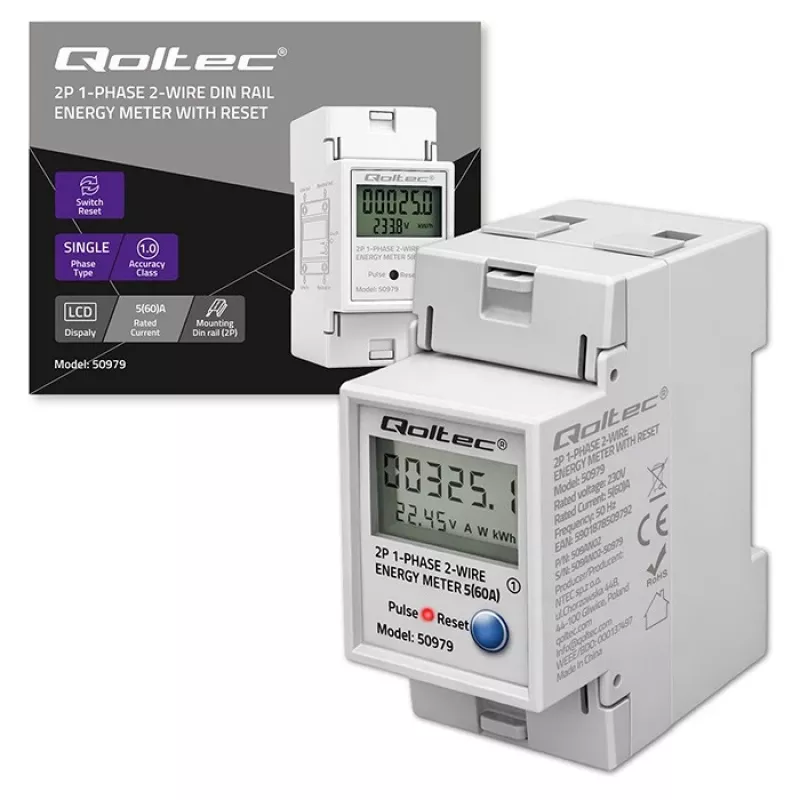

Energy meter QOLTEC Single-phase DIN-rail 230V (MPN 50979)

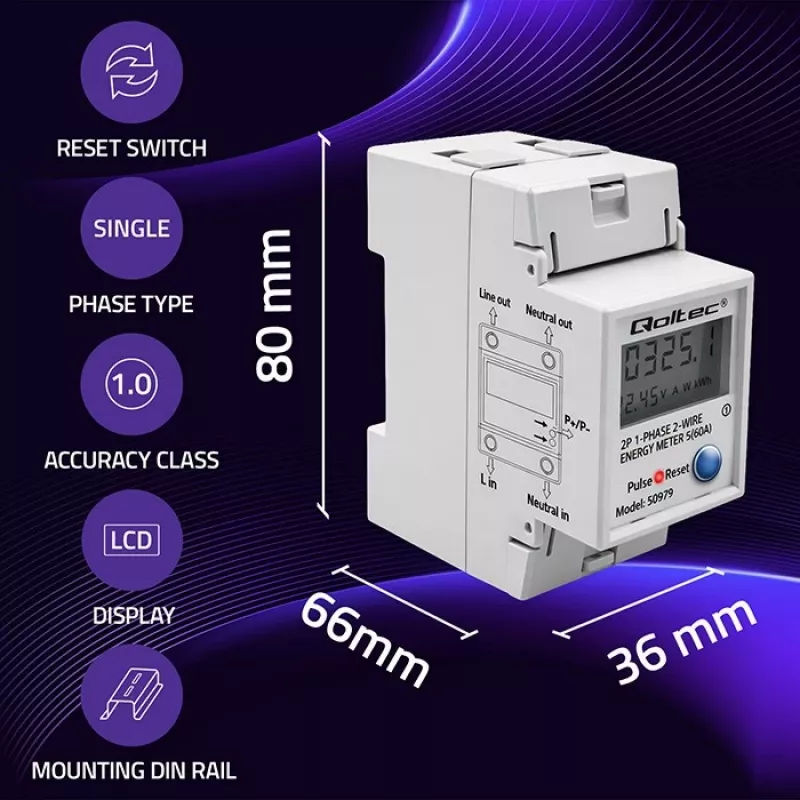

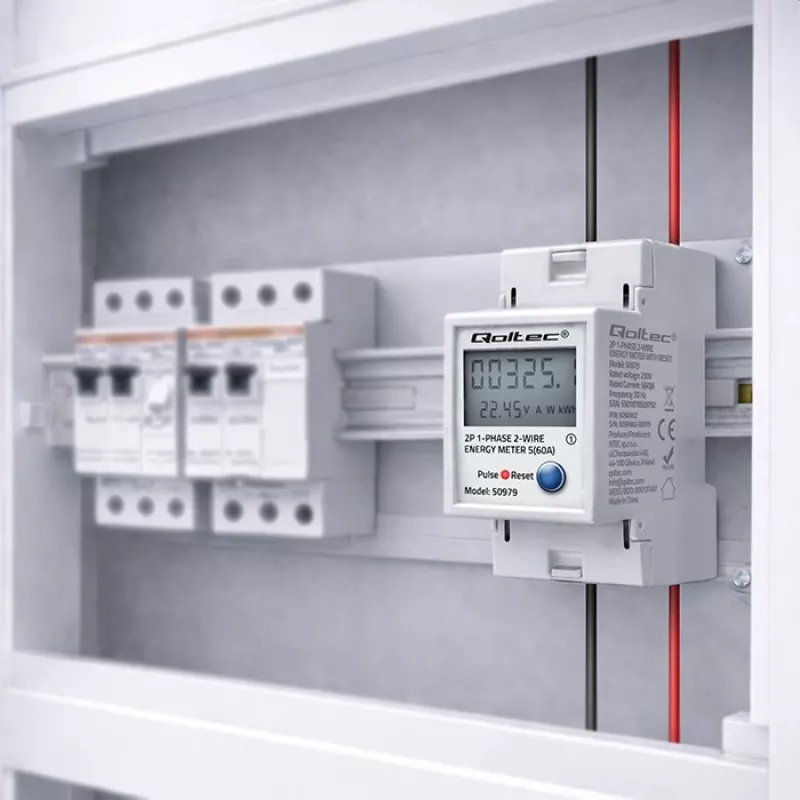

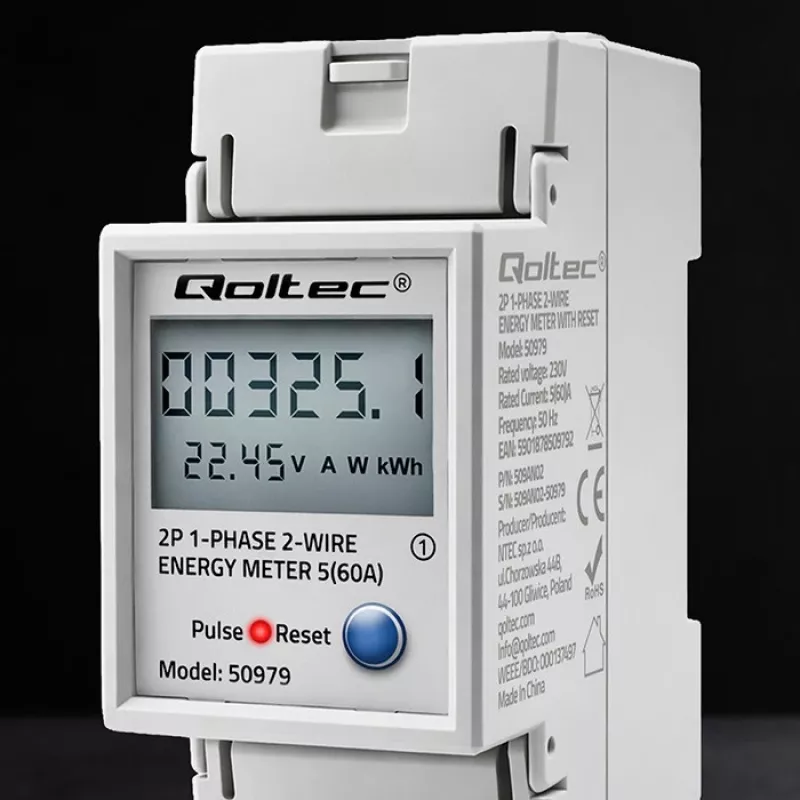

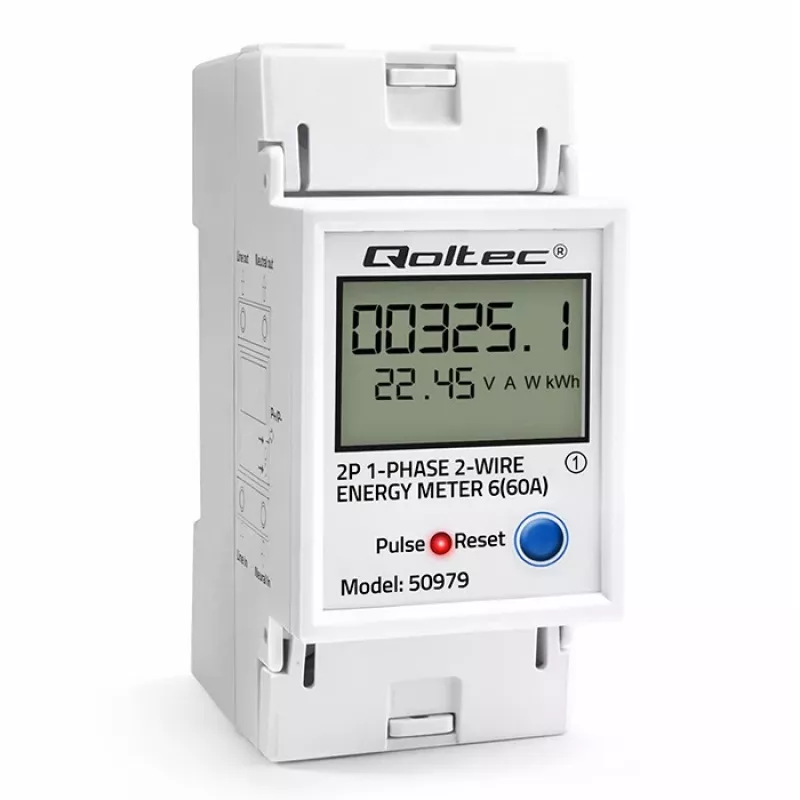

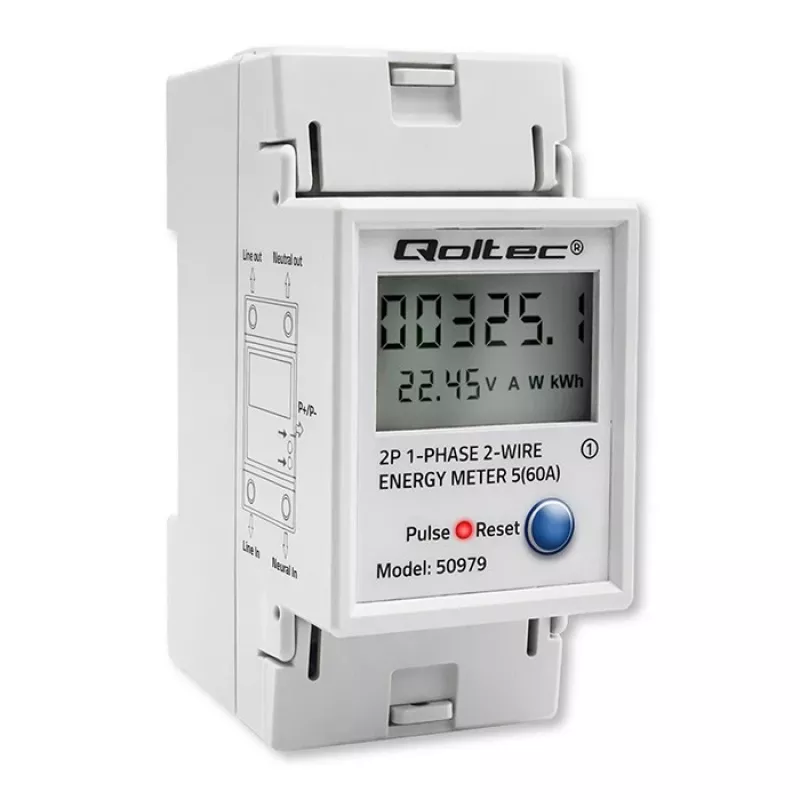

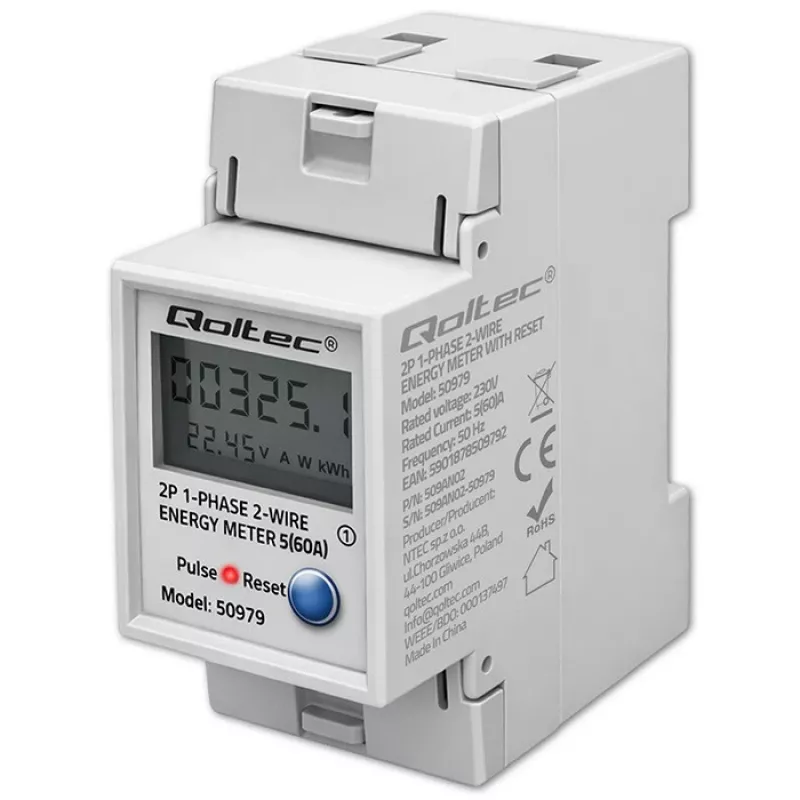

Description: Investment in energy saving and consumption controlThe electronic electricity consumption meter allows you to monitor the level of electricity consumption by single-phase receivers powered by 230V alternating current with a frequency of 50Hz. The device has an LED indicator that signals energy consumption; the diode flashes at a frequency that depends on the energy consumed, with a constant pulse rate of 400imp/kWh. The LCD display shows the amount of energy consumed, calculated on the basis of the number of pulses. The meter is designed for installation in switchboards on a DIN TH35 rail. An additional advantage of the product is its very easy operation and small size, which will certainly facilitate the installation of the device.Convenient and precise monitoringThe Qoltec electricity consumption meter is a precise tool for monitoring energy consumption. The LCD display provides clear and accurate data on energy consumption, allowing for effective energy management and identification of potential savings. The meter can be used in both domestic and industrial installations.Product features: Single-phase, Unidirectional, Standard installation of the device in a switchboard on a 35 mm DIN rail, Dual energy meter resettable and permanent, Energy consumption measurement displayed in kWh, Features an LCD display for monitoring measurements, Compliant with IEC 62053-21 and DIN EN50022 standards, Base current is 5A, maximum current 60A, Accuracy class 1.0. Dual energy measurement systemThe energy meter enables energy consumption measurement over a selected period of time thanks to the RESET function not only allows you to measure consumption, but also to reset the readings at any time and start a new count from 0. This allows you to easily check how much energy you consume in a specific period of time e.g. in one day, one week, during device operation or during installation tests. It facilitates cost control, consumption analysis and comparison of device operation (e.g. heaters, boilers, pumps, air conditioning). The ideal solution when you want to calculate your energy consumption for today e.g. you reset the meter in the morning and in the evening you see the actual result for one day.At the same time, the device has a permanent total counter that cannot be reset and records total energy consumption on an ongoing basis. This gives you access to both periodic data (after reset) and the full, cumulative consumption value.Continuous monitoring of voltage and power of devicesThe energy meter enables comprehensive control of electrical installation parameters. The device measures not only energy consumption (kWh) but also current voltage (V) and instantaneous power (W), allowing you to check the load and operating status of connected devices in real time. Mains voltage (V) allows you to monitor the stability of the power supply on an ongoing basis and detect any deviations. Instantaneous power (W) shows the current load on the installation in real time, which facilitates the analysis of the operation of connected devices. | Cable locator: No | Power: Not applicable | Accessories included: Energy meter User manual Warranty card | Color: Gray | Dimensions: 66 x 36 x 80 mm | Weight: 113

How to use

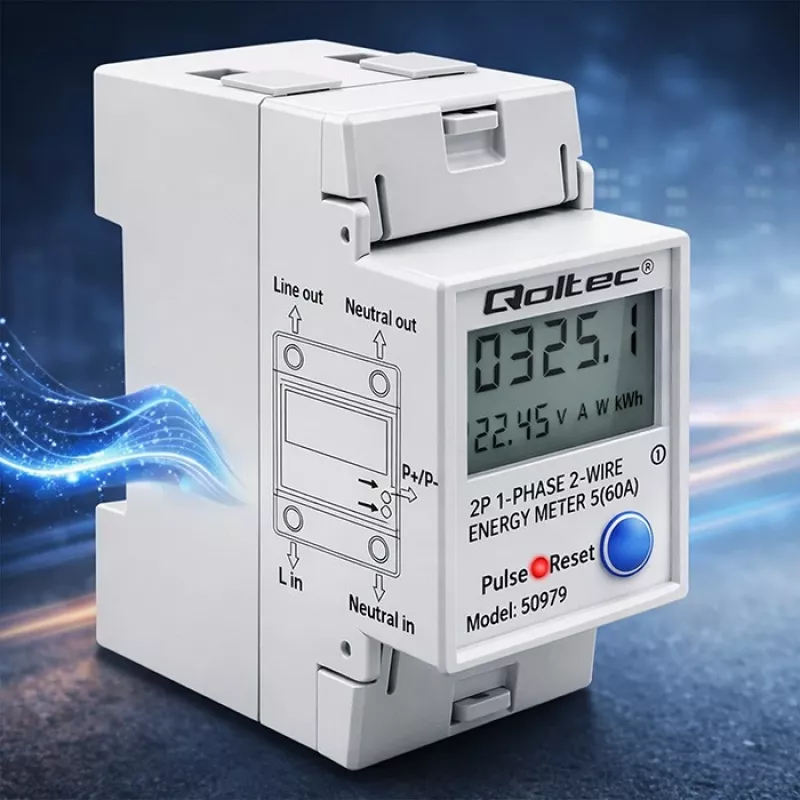

Install the meter on a standard DIN rail inside the electrical distribution panel and connect the line and neutral conductors according to wiring diagrams and local electrical codes. After connection to the 230 V single-phase supply, the device begins measuring active energy consumption and accumulating kWh on its display. Regularly read the numeric display to obtain cumulative consumption values; record readings for billing or energy management as needed.

Recommendations

Ensure installation and wiring are carried out by a qualified electrician, follow local regulations, and switch off the supply before mounting or connecting the meter. Use the device within the specified supply voltage range and environmental conditions to maintain measurement accuracy and safety.
