Cable splitter Kathrein EBC 02/G

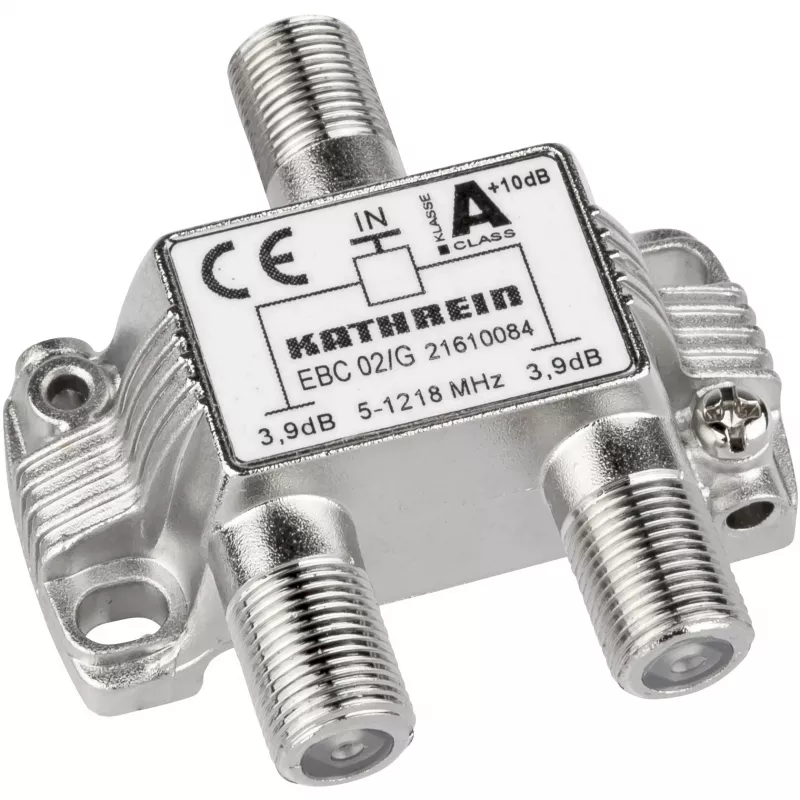

Kathrein EBC 02/G is a two-way cable splitter with F-connectors, designed to distribute RF signals in the 5–1218 MHz range. It has an impedance of 75 Ω and compact dimensions (52 × 50 × 25 mm), providing a reliable, space-saving solution for cable installations that require signal division with 3.9 dB insertion loss and galvanic isolation at inputs and outputs.

Advantages

The EBC 02/G offers screening class A according to CENELEC EN 50083-2 and uses isolating capacitors at both inputs and outputs to prevent DC transfer between ports. Its F-type connectors and small footprint make it suitable for mounting in constrained enclosures while maintaining consistent RF performance across the specified frequency range.

Suitable for

Key specifications

How to use

Connect the incoming coaxial cable to the splitter input using an F-connector and attach the two output cables to the splitter outputs. Ensure all connections are tightened appropriately to maintain screening and minimize signal loss. Mount the splitter in a dry, ventilated location and avoid placing it near strong sources of electrical interference.

Recommendations

For best results, use quality coaxial cables and properly fitted F-connectors; if long cable runs or additional splitters are used, check signal levels and, if necessary, use amplification to compensate for insertion losses.
