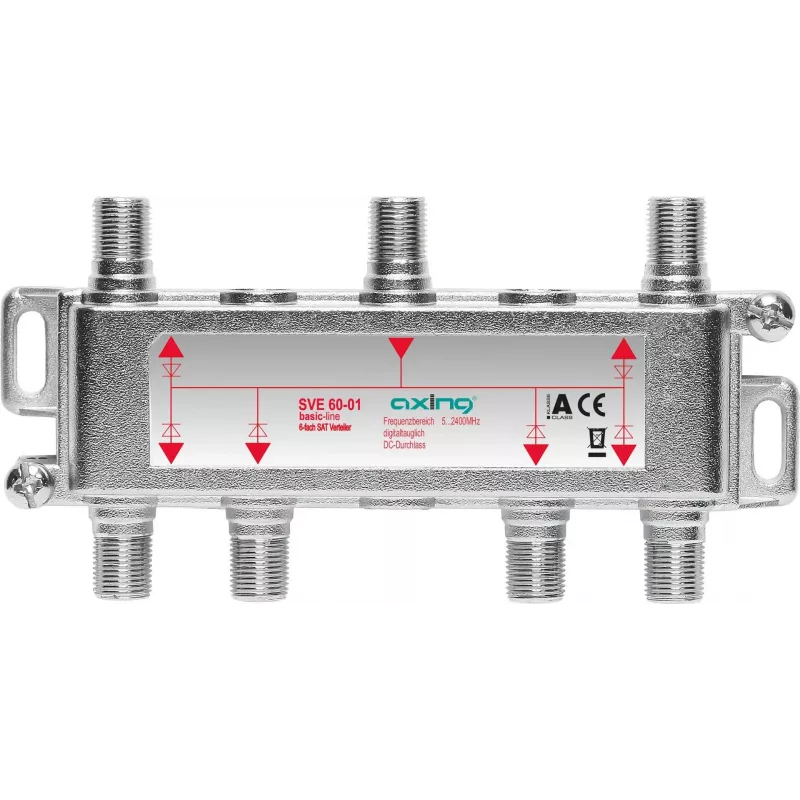

Cable splitter Axing SVE06001 75 Ω 5 - 2400 MHz

The Axing SVE06001 75 Ω cable splitter provides signal distribution from one F-type input to six F-type outputs across a frequency range of 5–2400 MHz. Designed for cable TV and satellite systems, the splitter has DC power pass capabilities and DC isolation via diodes to protect connected equipment. Connectors are gold-plated for improved contact reliability, and the unit includes detachable mounting brackets for flexible installation.

Advantages

The device offers wideband operation (5–2400 MHz) suitable for terrestrial, cable and satellite signals. DC-isolated outputs with diodes reduce the risk of unwanted current flow between ports while allowing DC power pass where required. Gold-plated connectors improve corrosion resistance and connection stability. Included detachable mounting brackets simplify mounting in different locations.

Suitable for

Key specifications

How to use

Connect the incoming coaxial cable to the single F-type input and attach up to six coaxial cables to the F-type outputs leading to receivers or active devices. If DC power pass is needed to feed an amplifier or LNB, allow DC on the input; the splitter’s diode isolation prevents backfeed between outputs. Secure the splitter using the detachable mounting brackets in a dry, ventilated location and route cables to avoid sharp bends.

Recommendations

Install the splitter close to the signal source when possible to minimize loss; use quality coaxial cables and tighten F-type connectors properly. Do not exceed the specified frequency range and verify compatibility of connected active devices with DC power pass.
