Antenna Kathrein EAX 24/G

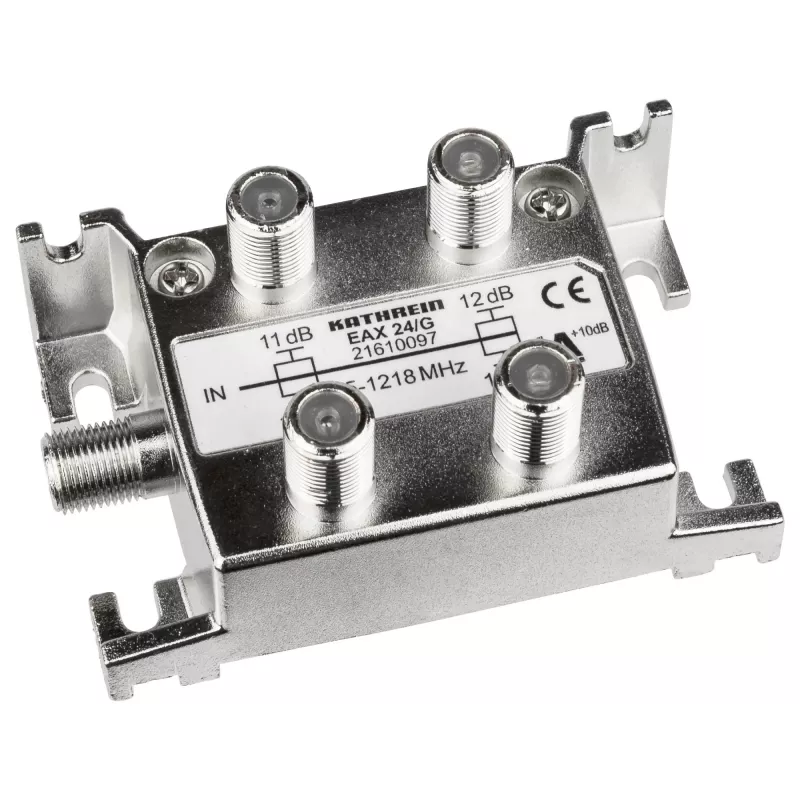

The Kathrein EAX 24/G is a 4-way F-terminated tap designed for distribution of RF signals across the 5–1218 MHz band. It has a 75 Ω impedance, F-type connectors and isolating capacitors at inputs and outputs. The unit is constructed from aluminum and has compact dimensions (74 mm × 44 mm × 36 mm), making it suitable for wall- or rack-mounted installations where space is limited. Screening class A ensures effective shielding against external interference.

Advantages

The EAX 24/G offers four outputs with calibrated tap loss values (11.0 / 12.0 dB) and F connectors for reliable, low-reflection connections. Isolating capacitors at inputs and outputs prevent DC and ground loops between connected devices. Its aluminum housing provides mechanical strength and corrosion resistance, while the screening class A rating delivers high electromagnetic shielding.

Suitable for

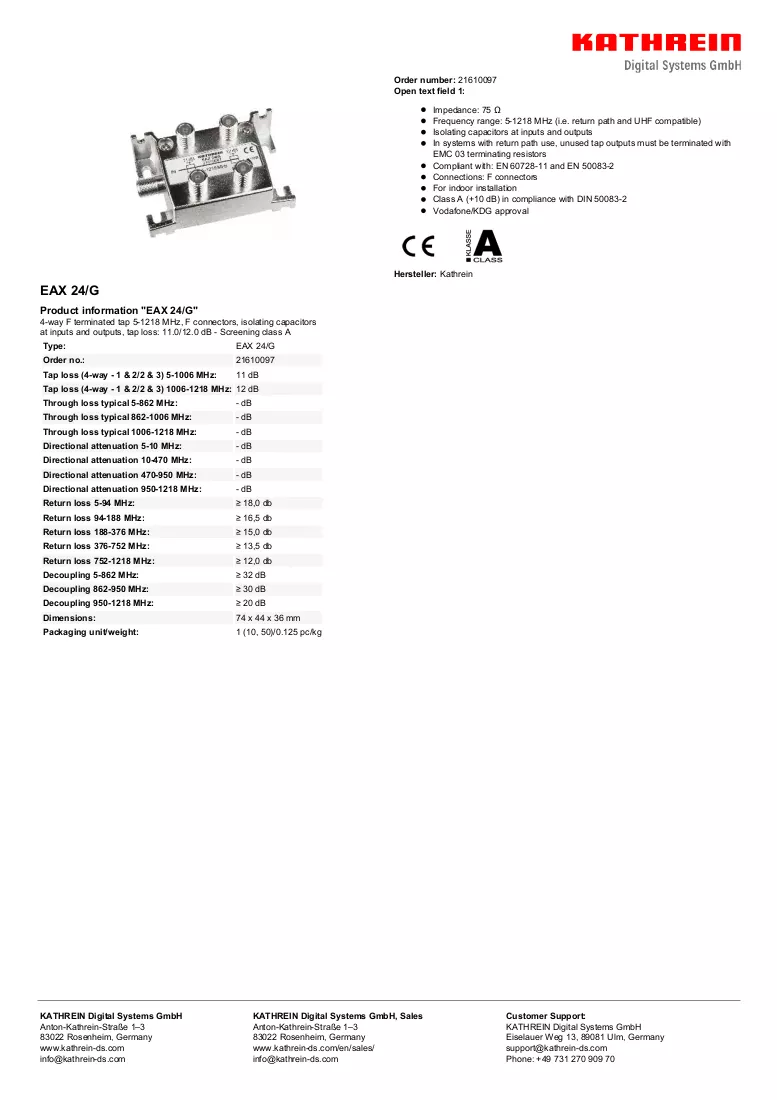

Key specifications

How to use

Mount the EAX 24/G in a suitable enclosure or on a flat surface using appropriate screws or brackets. Connect the incoming coaxial feed to the F-type input and attach receiver or distribution coaxial cables to the four F-type outputs. Verify correct orientation of the connectors and tighten fittings to ensure solid RF contact. Because isolating capacitors are fitted at inputs and outputs, the device provides DC blocking where needed; confirm system grounding and power-through requirements of other equipment before connecting.

Recommendations

Use the tap within its specified frequency range and impedance (5–1218 MHz, 75 Ω). Avoid exposure to prolonged moisture or corrosive environments despite the aluminum housing; install in ventilated, dry locations and ensure connectors are weather-sealed if used outdoors. Check tap loss values when planning link budgets to maintain adequate signal levels across the distribution network.
