Cable gender changer adapter InLine 92505B — coupler for converting connector gender

Time savings during installation:The screw terminal block for 8 wires plus shield enables fast, solder-free wiring – tool-assisted with a flat-head screwdriver ≤ 2.5 mm, suitable for 16–26 AWG.

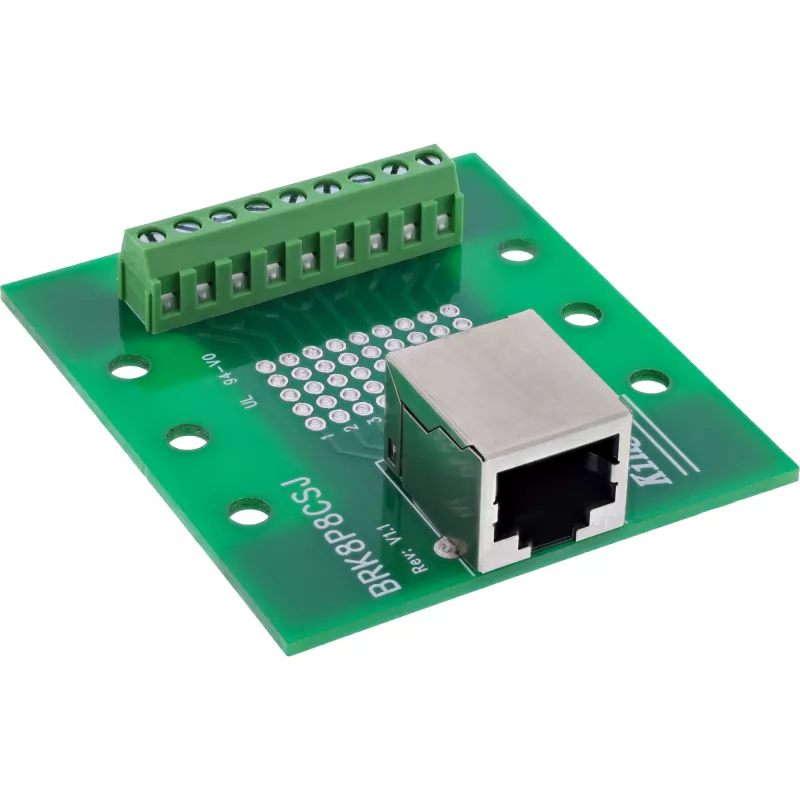

Integrated RJ45 interface for structured wiring: The standardized RJ45 socket (8P8C) in a straight design allows direct connection to network components – ideal for test benches, service work, or digital controls.

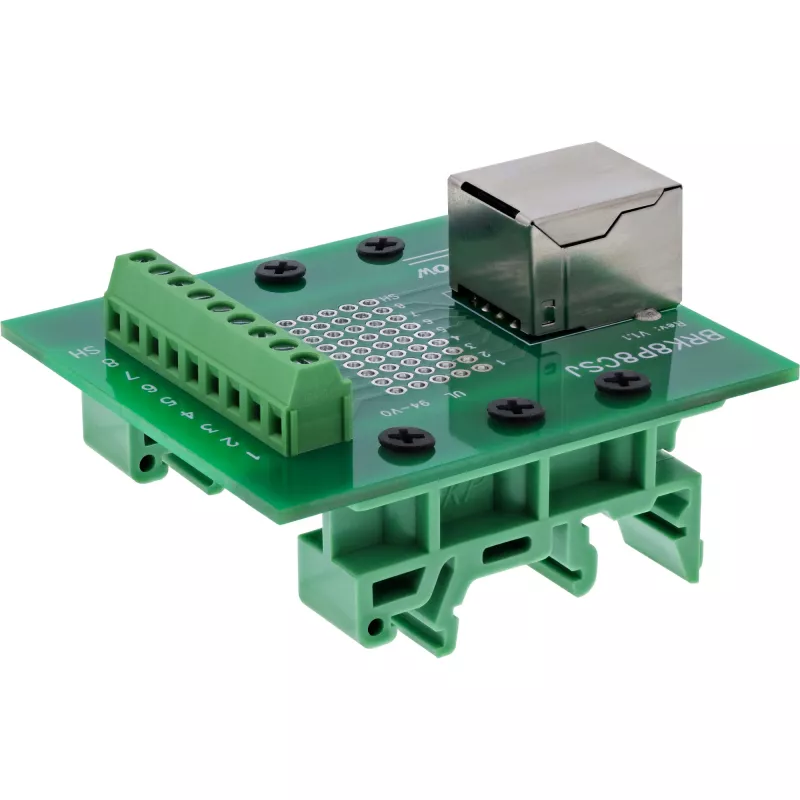

Space-saving DIN rail mounting:The housing is prepared for DIN mounting rails and enables standard-compliant, space-saving installation in the control cabinet.
Versatile use in industry:Suitable for network diagnostics, machine communication, embedded systems, control technology, or test setups with Ethernet connection.
High signal quality:An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 1.0 A per pin ensure reliable and secure data transmission – even under continuous load in industrial environments.

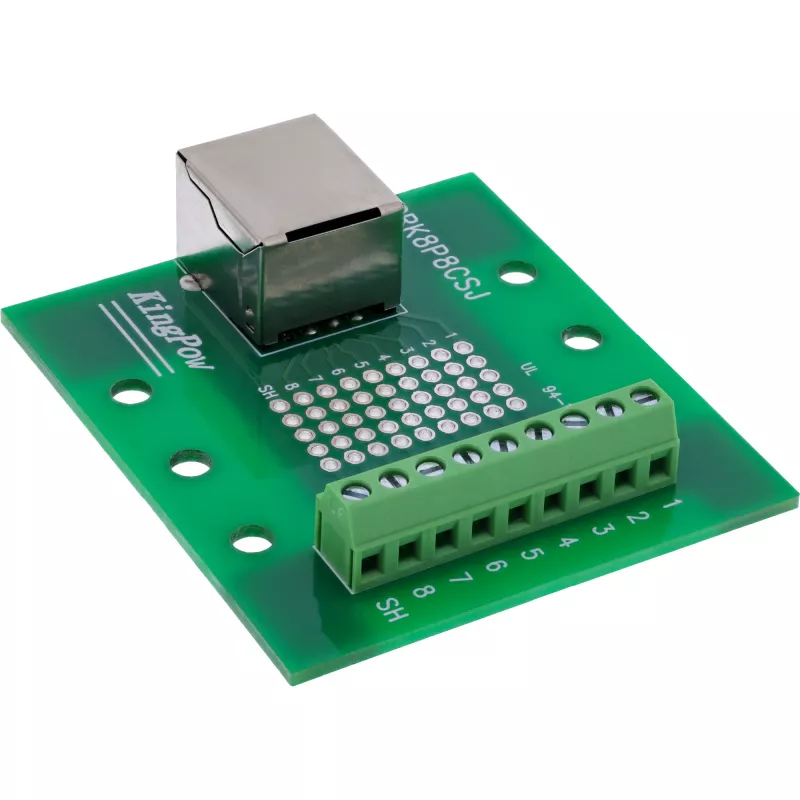

The InLine® RJ45 terminal block with straight socket and side screw terminal strip enables the structured connection of Ethernet signals in control cabinets, test fields, or laboratories. The permanently installed RJ45 socket (8P8C) is directly connected to a 9-pin screw terminal – 8 wires plus shield.

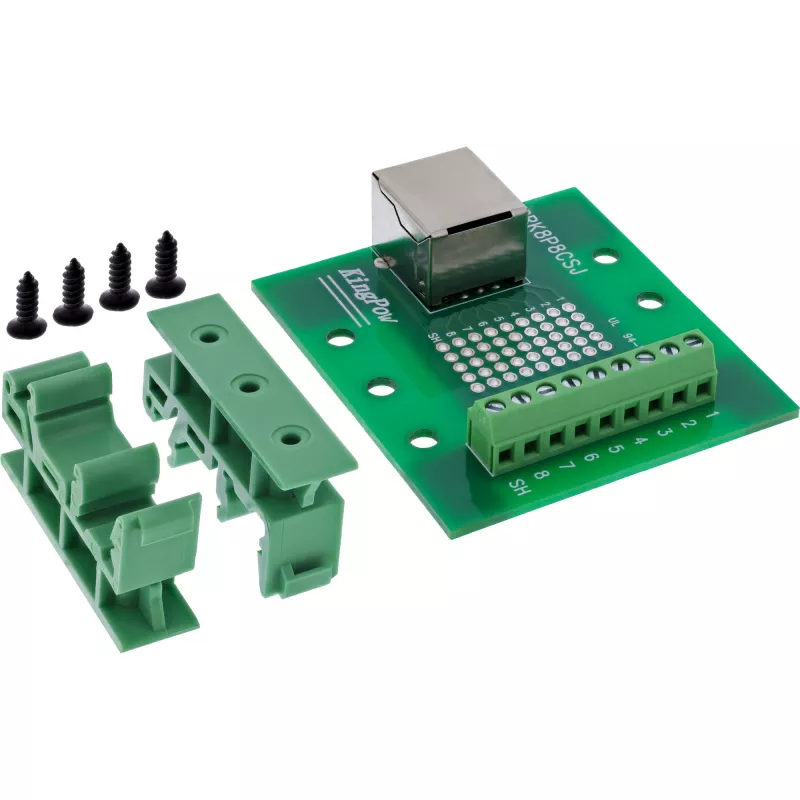

The terminal strip supports wires in the range of 16–26 AWG and is easy to wire with a flat-blade screwdriver ≤ 2.5 mm. The pre-mounted DIN rail clip allows the module to be integrated onto mounting rails quickly and securely. The robust design and tested short-circuit and miswiring protection make the adapter ideal for industrial applications.

RJ45 interface:8P8C socket (straight version)
Screw terminal block:9 terminals (8 signals + shield), 5.0 mm pitch, with pressure plate
Connection range:16–26 AWG
Actuation:With flat-blade screwdriver ≤ 2.5 mm
Rated current:1.0 A per pin
Max. operating voltage:100 V between two signals
Insulation resistance:≥ 10 MΩ @ 300 V DC
Operating temperature:–20 °C to +70 °C
Insulation layer:EVA insulation on underside
Mounting:Prepared for DIN top-hat rail
Dimensions:approx. 60 × 54 × 17 mm (W × H × D)

InLine 92505B. Connector(s): RJ45 8P8C / Terminal block 9 terminals, Product colour: Green, Connector gender: Female/Female. Compliance certificates: RoHS, TÜV mark. Weight: 19 g, Width: 54 mm, Depth: 60 mm. Quantity per pack: 1 pc(s), Package volume: 100 cm³. Country of origin: Taiwan

How to use

Mount the module on a standard DIN top-hat rail using the pre-mounted clip. Strip and prepare wires in the 16–26 AWG range, insert each conductor into the corresponding screw terminal and secure with a flat-head screwdriver (≤ 2.5 mm) using the pressure plate. Plug a standard straight RJ45 plug into the 8P8C socket to establish the connection. Observe wiring order and shield termination to maintain signal integrity.

Recommendations

For reliable operation, use within the specified temperature range (–20 °C to +70 °C), ensure connections do not exceed 1.0 A per pin, and follow correct pair/wire assignment and shielding practices. Install on a grounded DIN rail and verify wiring with appropriate network-test equipment after installation.
