Cable gender changer InLine 92504P — adapter for reversing connector gender (model 92504P)

Time savings during installation:The 10-pin screw terminal block with pressure plate allows for quick, tool-assisted wiring – for wires in the 16–26 AWG range.
Standardized IDC interface with clear pin assignment:The 20-pin socket (2×10) ensures structured signal separation – ideal for orderly system wiring in test, control, and prototype environments.

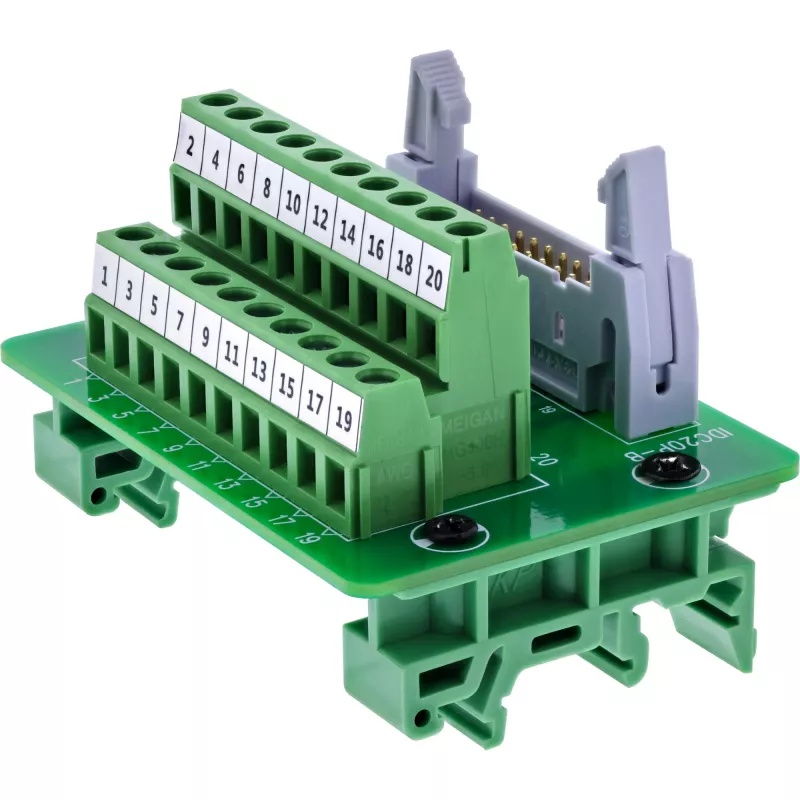

Compact design for structured installation:Compact design on a sturdy printed circuit board for direct integration into housings, adapter panels, or test environments.
For modular control and test systems:Ideal for prototyping, embedded applications, system tests, or signal distributors with IDC ribbon cables.
High signal quality:Tested insulation resistance up to 300 V AC, rated current 1 A per pin, and 100% short-circuit testing for long-term operational reliability.

The InLine® IDC-20-to-terminal block adapter connects a 20-pin IDC socket (2×10) to a 10-pin screw terminal strip for easy signal wiring – no soldering required. The robust design on a stable circuit board is particularly suitable for structured installations in test benches, control devices, or embedded systems.
The screw terminals (5.0 mm pitch) are clearly labeled and support single wires from 16–26 AWG. Wiring is tool-assisted with a flat-head screwdriver ≤ 2.5 mm. An EVA insulating layer provides reliable protection when mounting on conductive surfaces.
Thanks to 100% short-circuit and wiring testing and standardized signal routing, the adapter is ideal for professional use in industrial test environments, prototypes, or control cabinets.
Note: Two adjacent IDC pins are internally connected to a screw terminal (e.g., pins 1+2 → terminal 1).

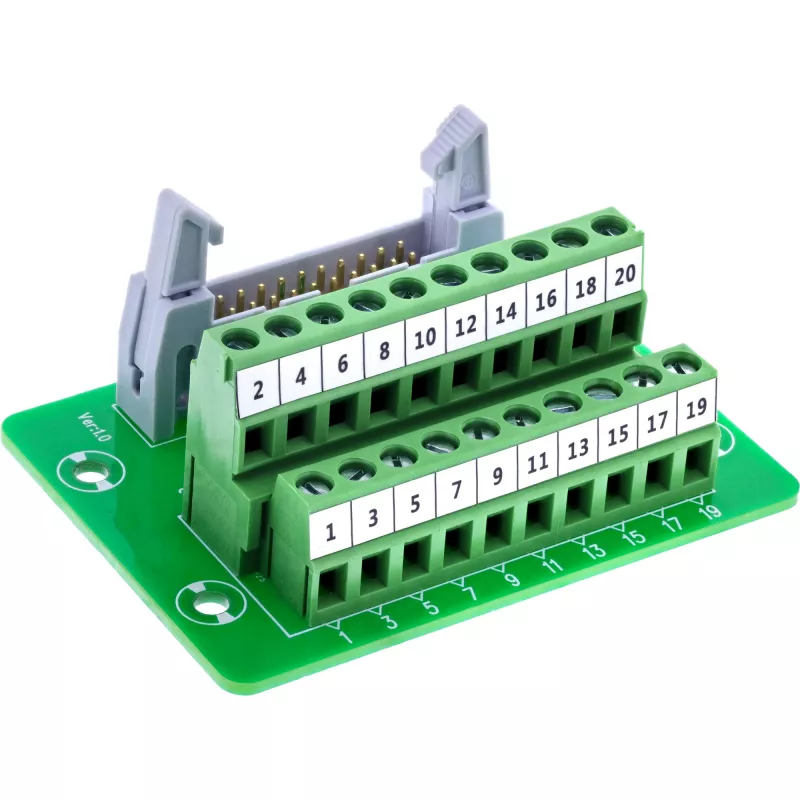

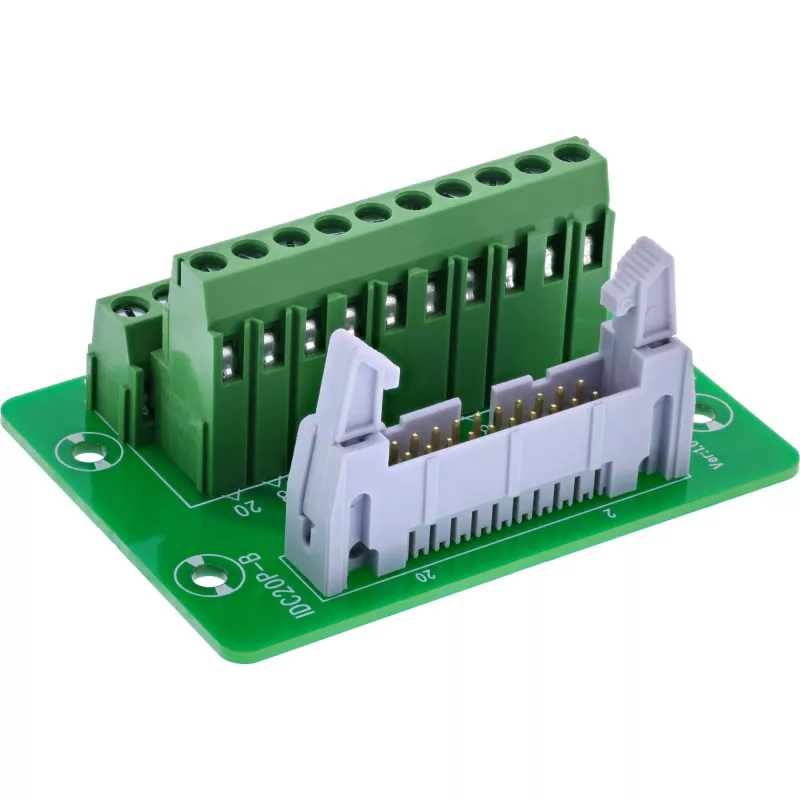

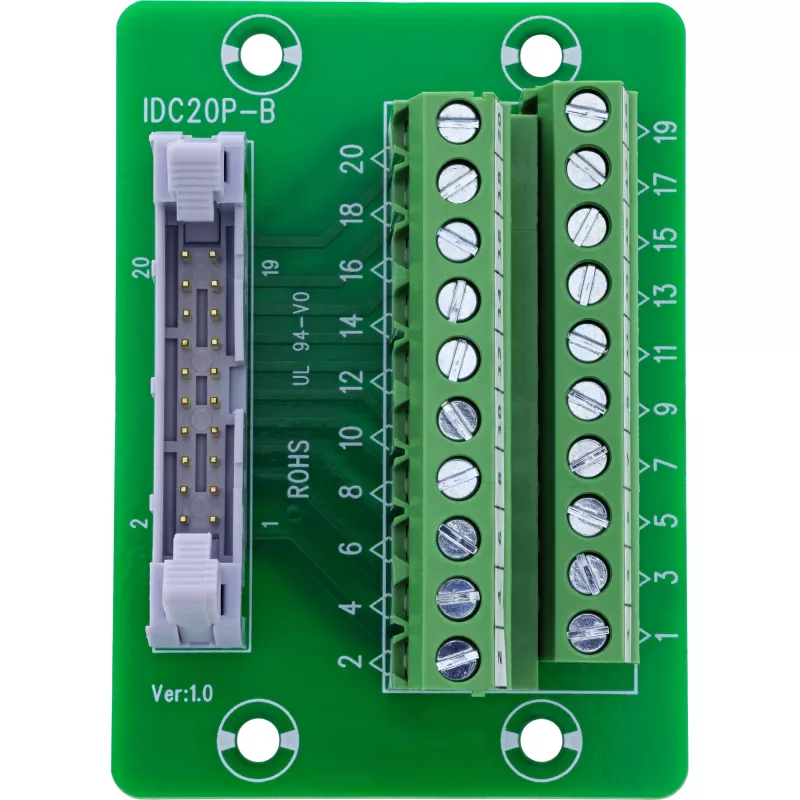

IDC interface:20-pin IDC socket (2×10), pitch 2.54 mm
Screw terminal strip:10 terminals, pitch 5.0 mm, with pressure plate
Signal assignment:GND (ground), D0 to D7 (digital signal lines, assignable depending on application)
Connection range:16–26 AWG
Actuation:With flat-head screwdriver ≤ 2.5 mm
Rated current:0.8 A per pin
Max. operating voltage:100 V between two signals
Insulation resistance:≥ 10 MΩ @ 300 V DC
Max. conductor resistance:5 ohms
Operating temperature:–10 °C to +70 °C
Insulation layer:EVA insulation on underside
Dimensions:approx. 71 × 51 × 29 mm (W × H × D)

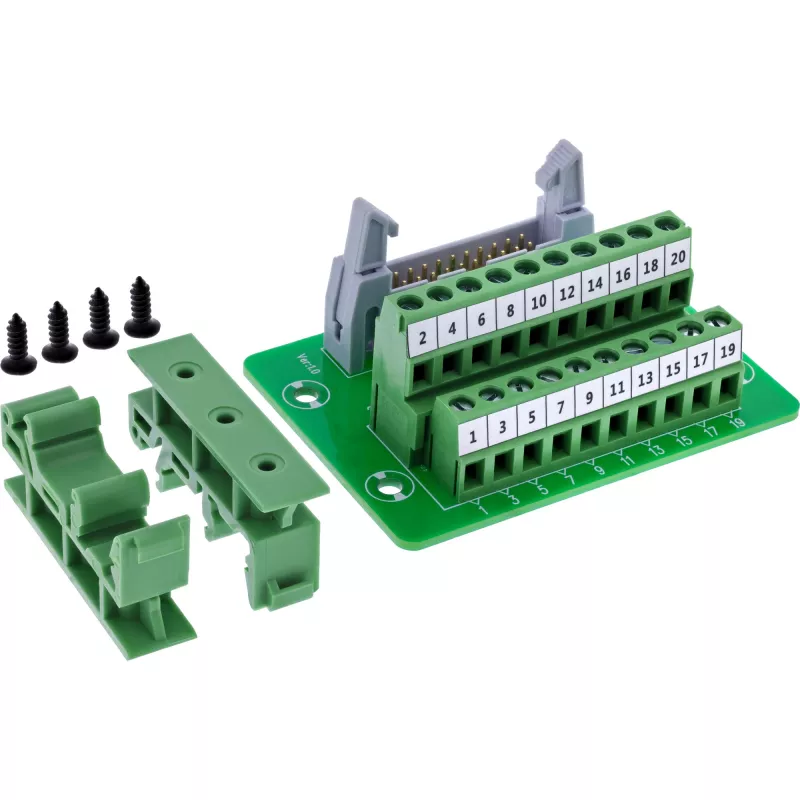

InLine 92504P. Connector(s): IDC 20 / Terminal block 10 terminals, Product colour: Green, Light grey, Connector gender: Female/Female. Compliance certificates: RoHS, TÜV mark. Dimensions (WxDxH): 51 x 71 x 29 mm, Weight: 49 g, Width: 51 mm. Quantity per pack: 1 pc(s), Package volume: 100 cm³, Package type: Polybag. Country of origin: Taiwan

How to use

Insert the matching IDC ribbon cable into the 20-pin IDC socket (2×10) and secure it according to the connector’s retention method. Strip single conductors to the appropriate length and insert them into the corresponding screw terminals (terminals labeled for clarity). Tighten each pressure plate terminal with a flat-head screwdriver (≤ 2.5 mm) until the conductor is securely clamped. Note that two adjacent IDC pins are internally combined to one screw terminal (e.g., pins 1+2 → terminal 1); verify pin-to-terminal mapping before wiring.

Recommendations

Use the adapter in dry, indoor environments within the specified temperature range and avoid exceeding the rated current and voltage. Verify wiring and continuity after installation; for long-term reliability in industrial systems, follow standard practices for strain relief and cable routing.
