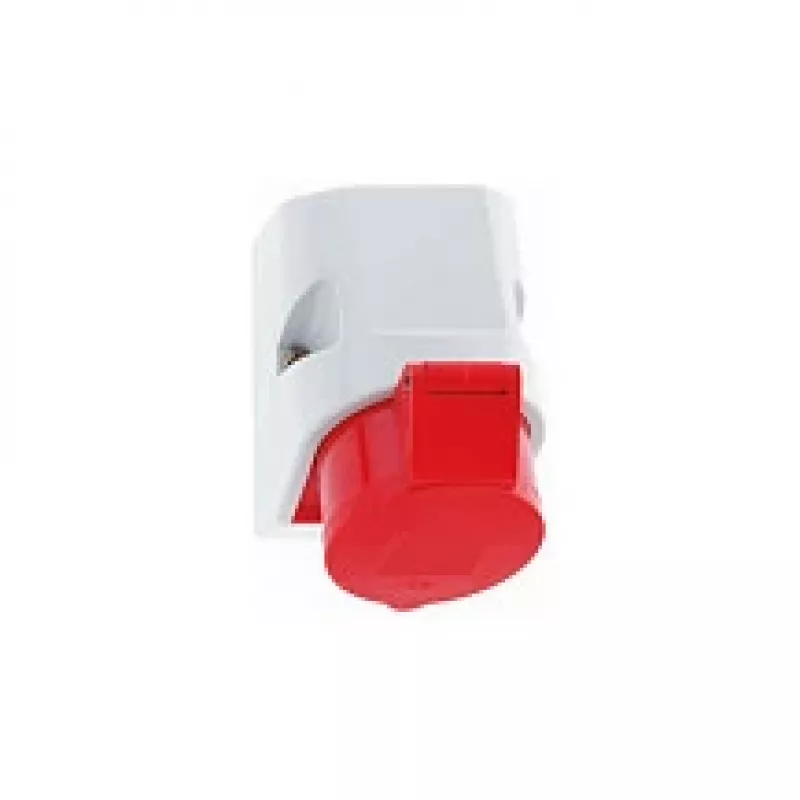

BALS CEE Wall-Mounted Socket 5x16A 400V IP44 6h Quick-Connect

BALS CEE Wall-Mounted Socket 5x16A 400V IP44 6h Quick-Connect
BALS CEE Wall-Mounted Socket 5x16A 400V IP44 6h Quick-Connect
R469
This CEE wall-mounted socket delivers a robust 16 A, 400 V three-phase power connection with IP44 splash protection, making it a reliable choice for industrial and outdoor applications. Its Quick-Connect screwless terminals reduce wiring time significantly, while the 6h earth contact position ensure... Read More
Stock 74 Code 3329375 Brand BALS Model 11906 Warranty 2 Years

Shipping & Returns

Estimated delivery Thursday, October 22
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

This CEE wall-mounted socket delivers a robust 16 A, 400 V three-phase power connection with IP44 splash protection, making it a reliable choice for industrial and outdoor applications. Its Quick-Connect screwless terminals reduce wiring time significantly, while the 6h earth contact position ensures correct phase alignment for 400 V equipment.

Advantages

The socket's polyamide housing withstands mechanical stress and UV exposure, and the IP44 rating guards against water splashes from any direction. The Quick-Connect system allows tool-free insertion of solid or stranded conductors from 1.5 to 4 mm², cutting installation effort by up to 50%. Brass contacts with low contact resistance ensure minimal heating under full load, and the red RAL 3000 colour provides instant identification of 400 V circuits.

Suitable for

  • Industrial machinery and three-phase tools
  • Outdoor power distribution in construction sites
  • Marinas, campsites, and agricultural facilities
  • Permanent wall-mounted installations in workshops

Key specifications

  • Rated current: 16 A
  • Rated voltage: 400 V (3P+N+PE)
  • Frequency: 50/60 Hz
  • Ingress protection: IP44
  • Earth contact position: 6h
  • Connection technology: Quick-Connect (screwless)
  • Terminal cross-section: 1.5–4 mm²
  • Housing material: Polyamide (PA6)
  • Contact material: Brass
  • Standards: IEC 60309, EN 60309
  • Operating temperature: -25 °C to +40 °C
  • Glow wire test: 850 °C

Recommendations

Pair this socket with a matching BALS CEE plug and a suitable cable gland to maintain the IP44 rating.

Specifications
Brand
BALS
Built-in battery
No
Card pocket
No
Case type
Wall-mounted socket
Category
CEE Wall-Mounted Socket
Compatibility
BALS CEE plugs and cable glands
Country of origin
Germany
Depth
75 mm
EAN
4024941119061
Height
75 mm
Made with recycled materials
No
Master (outer) case GTIN (EAN/UPC)
4024941119061
Material
Polyamide (PA6), Brass
Model
11906
MPN
11906
Number of card pockets
0
Package depth
80 mm
Product colour
Red
Protection features
IP44, UV resistant, mechanical stress resistant
Quantity per pack
1
Shipping (inner) case gross weight
0.25 kg
Shipping (inner) case GTIN (EAN/UPC)
4024941119061
Weight
0.25 kg
Wireless charging
No
Price history over the last 6 months
BALS CEE Wall-Mounted Socket 5x16A 400V IP44 6h Quick-Connect
Current
R469
Lowest
R434
Highest
R469
Change 24H
+R30   +7%
Week
+R33   +8%
Month
+R33   +8%
