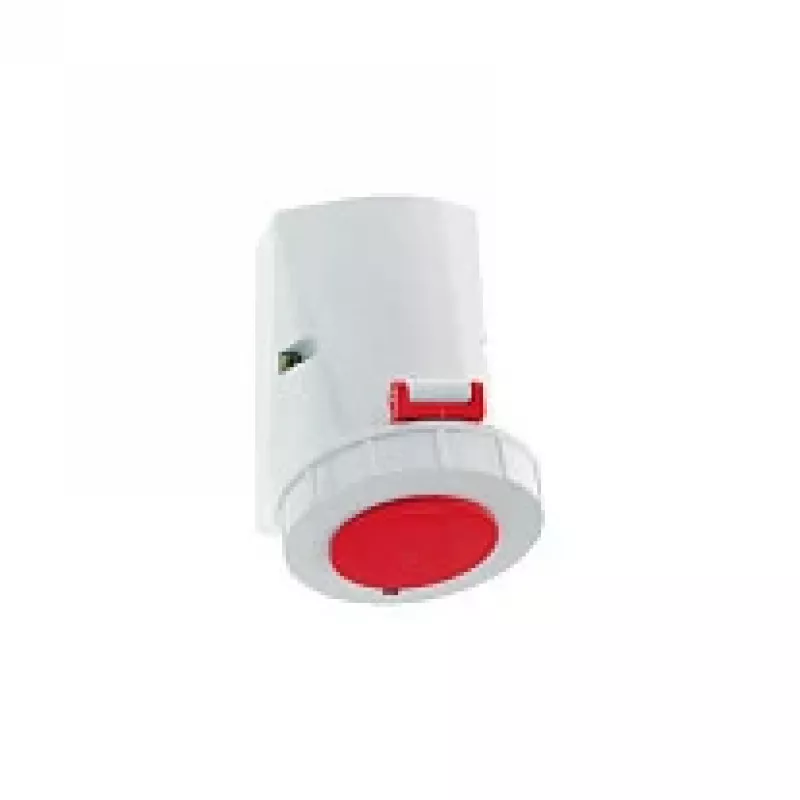

BALS 1155 Wall-Mounted Receptacle 32A 5-Pole 400V 6h IP67 Red/Grey

Where many industrial sockets force a compromise between rugged sealing and compact footprint, the BALS 1155 delivers both: an IP67-rated, IK08 impact-resistant receptacle with a flange measuring just 126 x 83 mm. Built for 32 A at 400 V across five poles (3P+N+PE) with the earth contact at 6 o'clock, it suits tight spaces in panels, machinery, and outdoor installations where reliability cannot be optional.

Highlights

• Rated current 32 A, voltage 400 V, frequency 50/60 Hz
• 5-pole (3P+N+PE) with 6h earth contact position
• IP67 protection against dust and temporary immersion
• Impact resistance IK08 and glow wire tested at 850 °C
• Flange dimensions 126 x 83 mm for compact mounting
• Nickel-plated brass contacts for excellent conductivity
• Operating temperature range -25 °C to +40 °C

In daily use

Installation is straightforward thanks to rear cable entry and a wall-mounting design that suits industrial panels, machinery, and outdoor applications. The red housing with grey base provides high visibility and clear identification of voltage rating. Screw terminals ensure a durable connection even under vibration, and the polyamide material withstands oils, greases, and UV exposure, reducing maintenance over time.

Full specifications

• Product type: Wall-mounted receptacle
• Rated current: 32 A
• Rated voltage: 400 V (3P+N+PE)
• Number of poles: 5
• Earth contact position: 6h
• Ingress protection: IP67
• Frequency: 50/60 Hz
• Housing material: Polyamide (PA6)
• Connection technology: Screw terminals
• Mounting type: Wall-mounted
• Color: Red housing, grey base
• Standards compliance: IEC 60309-1, IEC 60309-2
• Operating temperature range: -25 °C to +40 °C
• Terminal cross-section: 2.5 - 10 mm²
• Flange dimensions: 126 x 83 mm
• Rated impulse withstand voltage: 6 kV
• Glow wire test: 850 °C
• Contact material: Nickel-plated brass
• Cable entry: Rear
• Protection against mechanical impact: IK08

Final note

A compact, high-visibility receptacle that meets IEC 60309 standards and thrives in demanding environments.
