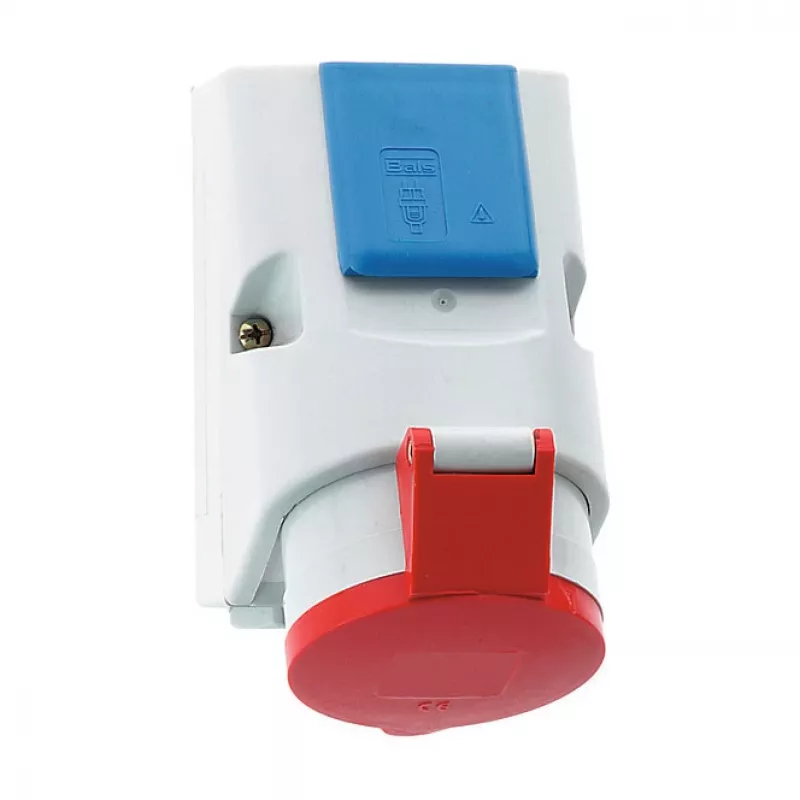

BALS CEE Combination Socket 16A 5-Pole 1010 6h IP44 400V

The BALS 1010 CEE combination socket delivers dependable 400V power distribution for industrial and outdoor settings. This 16A, 5-pole outlet (3P+N+PE) features a 6h clock-face earth contact and robust IP44 ingress protection, making it a solid choice for demanding environments.

Advantages

Constructed from high-impact polyamide (PA6), this socket withstands mechanical stress and harsh weather conditions. Screw terminals ensure secure and durable connections, while multiple cable entry options—top, bottom, or rear—offer flexible installation. Compliant with IEC 60309 and VDE standards, it guarantees safe and reliable performance.

Suitable for

• Three-phase equipment and generators
• Industrial machinery and workshop power supply
• Temporary power distribution at construction sites
• Outdoor events and mobile power setups

Key specifications

• Rated current: 16 A
• Number of poles: 5 (3P+N+PE)
• Rated voltage: 400 V (380-415 V)
• Frequency: 50/60 Hz
• Earth contact position: 6h
• Ingress protection: IP44
• Housing material: PA6 polyamide
• Mounting: wall-mounted (surface)
• Connection type: screw terminals
• Cable entry: top, bottom, rear
• Terminal capacity: 1.5 - 4 mm²
• Operating temperature: -25°C to +40°C
• Standards: IEC 60309, VDE
• Mechanical impact protection: IK08

Recommendations

For safe installation, always disconnect the power supply before wiring. Ensure the socket is mounted on a stable surface and that all connections are tightened to the specified torque. Use only with compatible CEE plugs having the same current, voltage, and earth position ratings.
