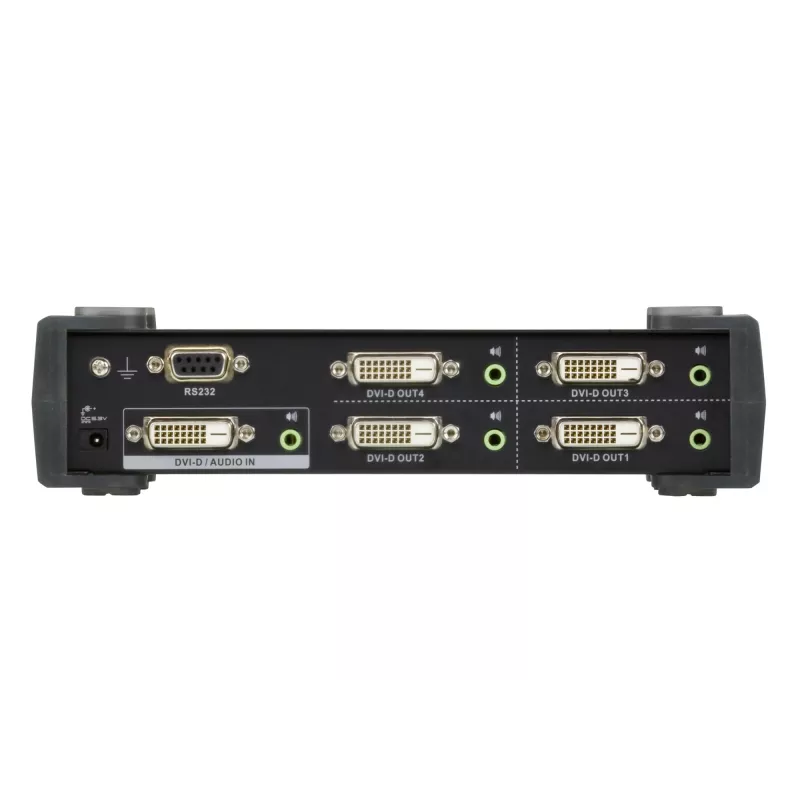

ATEN VS174 video splitter DVI 4x DVI-D

ATEN VS174 video splitter DVI 4x DVI-D
ATEN VS174 video splitter DVI 4x DVI-D
ATEN VS174 video splitter DVI 4x DVI-D
ATEN VS174 video splitter DVI 4x DVI-D
ATEN VS174 video splitter DVI 4x DVI-D
ATEN VS174 video splitter DVI 4x DVI-D
R6,881
The VS174 4-Port DVI Dual Link Splitter with Audio combines DVI quality video and audio, taking signals from an audio/ video source and replicating them to four audio/video outputs. This video splitter uses dual link technology, which offers high bandwidth capacity for added transmission power and f... Read More
Stock 4 Code 1206167 Brand ATEN Model VS174 Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, October 6
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
The VS174 4-Port DVI Dual Link Splitter with Audio combines DVI quality video and audio, taking signals from an audio/ video source and replicating them to four audio/video outputs. This video splitter uses dual link technology, which offers high bandwidth capacity for added transmission power and faster refresh rates, thereby providing better video quality of viewing resolutions up to 2560 x 1600.

ATEN VS174. Video port type: DVI, Video out: 4x DVI-D, Video in: DVI-D DL. Maximum resolution: 2560 x 1600 pixels, Product colour: Black, Housing material: Metal. AC input voltage: 5.3 V, Power consumption (typical): 5.6 W. Dimensions (WxDxH): 88 x 210 x 55.5 mm, Weight: 730 g

Key Highlights
  • Displays DVI audio/video to multiple DVI-compatible monitors or projectors
  • Superior video quality - up to 2560 x 1600 @ 60 Hz including 2K-resolution (2048 x 2048 @ 60 Hz)
  • Cascadable to 3 levels – provides up to 64 video signals
  • Audio enabled
  • Features RS-232 serial port for command controls
  • RS-232 Chain Control – use RS-232 commands to control cascaded devices via a DVI Cable
  • EDID Expert – selects the optimum EDID settings via RS-232
  • Note:
  • * The VS174 AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)
  • ** HDCP is not supported
  • Video port type: DVI Video ports quantity: 5 Black
  • DC-in jack
  • 2560 x 1600 pixels
Specifications
AC input voltage
5.3 V
Audio input
3.5mm
Audio output
3.5mm
Audio ports quantity
5
Certification
RoHS
DC-in jack
Yes
Dimensions (WxDxH)
88 x 210 x 55.5 mm
Housing material
Metal
Maximum resolution
2560 x 1600 pixels
Operating relative humidity (H-H)
0 - 80%
Operating temperature (T-T)
0 - 50 °C
Power consumption (typical)
5.6 W
Power LED
Yes
Product colour
Black
Serial ports quantity
1
Storage temperature (T-T)
-20 - 60 °C
Video in
DVI-D DL
Video out
4x DVI-D
Video port type
DVI
Video ports quantity
5
Weight
730 g

Leaflet

Open Leaflet
