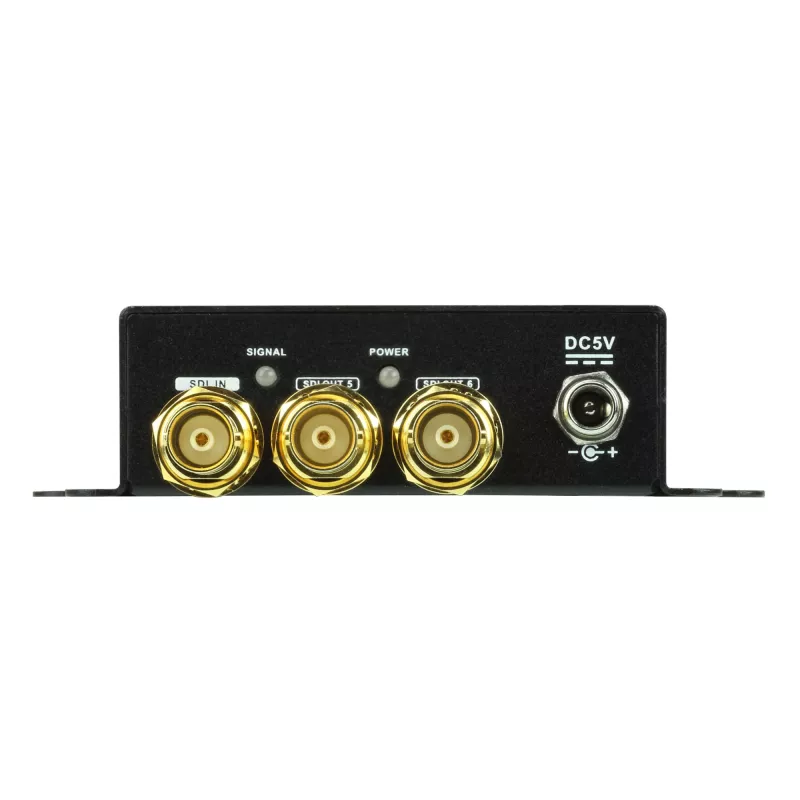

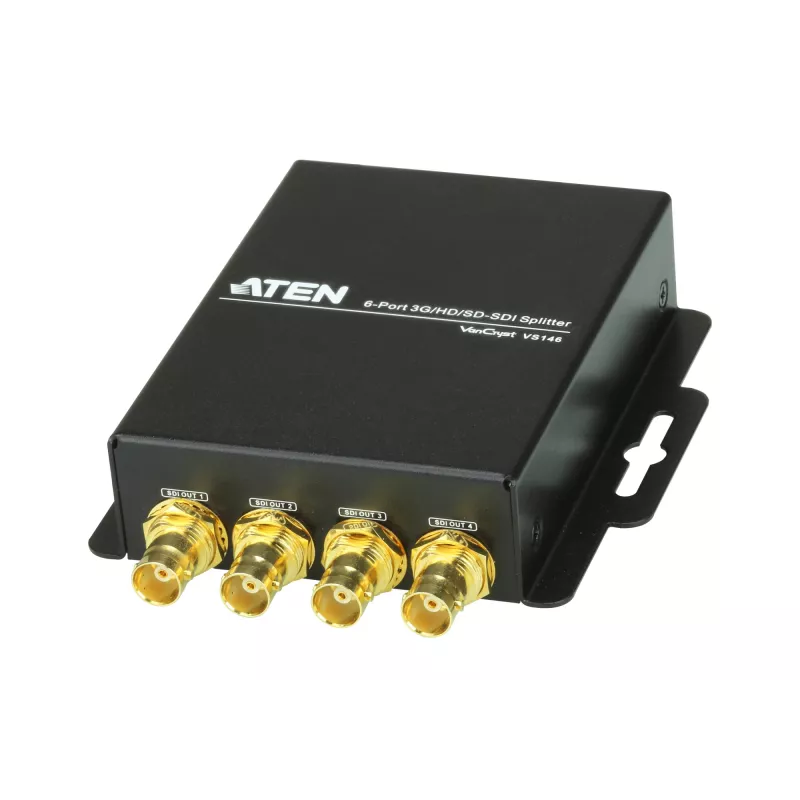

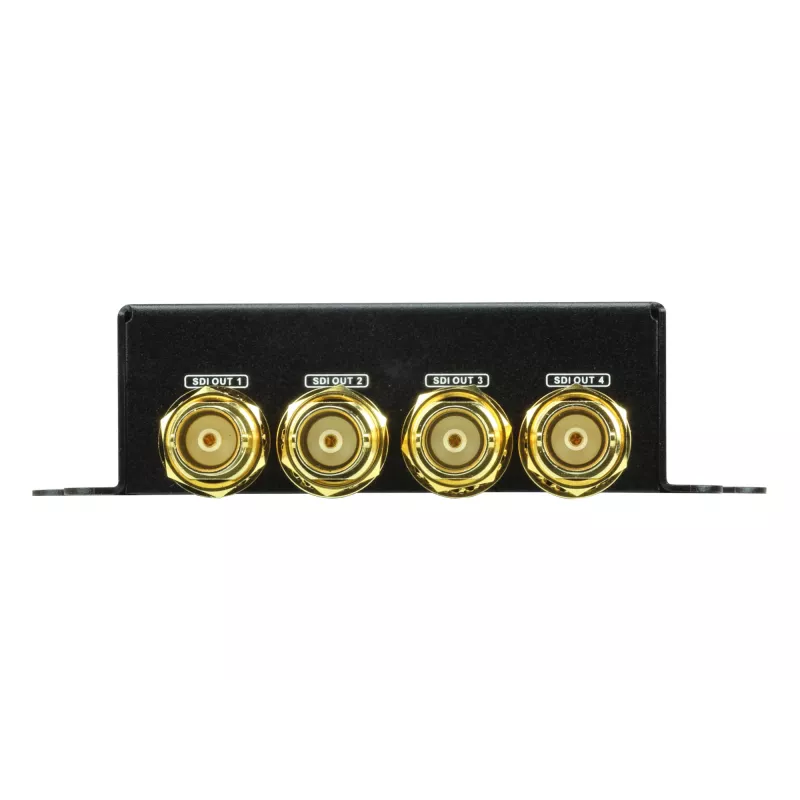

ATEN VS146 video splitter BNC 6x BNC

ATEN VS146 video splitter BNC 6x BNC
ATEN VS146 video splitter BNC 6x BNC
ATEN VS146 video splitter BNC 6x BNC
ATEN VS146 video splitter BNC 6x BNC
ATEN VS146 video splitter BNC 6x BNC
ATEN VS146 video splitter BNC 6x BNC
R8,323
The VS146 6-Port 3G/HD/SD-SDI Splitter receives one SDI input and retransmits the signal to six SDI outputs for real time viewing across multiple displays. It provides automatic cable equalization and distributes the SD-SDI signal over 300 meters. The VS146 has the ability to re-clock SDI signals fo... Read More
Stock 3 Code 2527895 Brand ATEN Model VS146 Warranty 2 Years

Shipping & Returns

Estimated delivery Monday, November 9
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
The VS146 6-Port 3G/HD/SD-SDI Splitter receives one SDI input and retransmits the signal to six SDI outputs for real time viewing across multiple displays. It provides automatic cable equalization and distributes the SD-SDI signal over 300 meters. The VS146 has the ability to re-clock SDI signals for cascading and thus provide even longer transmissions. It's particularly ideal for surveillance systems,TV studio, digital cinema, or any AV application where you need to split signals from a camera or other device equipped with 3G/HD/SD-SDI outputs to six SDI-compliant displays or video processors.
Key Highlights
  • One video inputs to 6 video outputs
  • Supports an SDI distance of up to 90M (3G-SDI), 150M (HD-SDI) or 300M (SD-SDI) of RG6
  • Reclocking SDI signals for cascading and thus longer transmission
  • Supported SDI formats:
  • • SD-SDI (SMPTE 259M, up to 270Mbps)
  • • HD-SDI (SMPTE 292M, 296M up to 1.485 Gbps)
  • • 3G-SDI (SMPTE 424M, 425M level A,B up to 2.97 Gbps)
  • Video bandwidth: 2.97Gpbs, 2.97/1.001Gbps
  • Features automatic detection of 3G/HD/SD-SDI signals
  • LED indication of power status and SDI signal
  • Locking power connector for secure communications
  • Passes all ancillary data
  • Video port type: BNC Video ports quantity: 6 Black
  • DC-in jack
  • Maximum operating distance: 300 m
Specifications
AC input voltage
5 V
Certification
RoHS
Connector contacts plating
Gold
DC-in jack
Yes
Dimensions (WxDxH)
80 x 145 x 25 mm
Housing material
Metal
Maximum operating distance
300 m
Operating relative humidity (H-H)
20 - 90%
Operating temperature (T-T)
0 - 40 °C
Packaging content
Power Adapter
Power consumption (typical)
10 W
Power LED
Yes
Product colour
Black
Storage temperature (T-T)
-20 - 60 °C
User guide
Yes
Video in
1x BNC
Video out
6x BNC
Video port type
BNC
Video ports quantity
6
Weight
310 g

Document

Open Document

Leaflet

Open Leaflet
