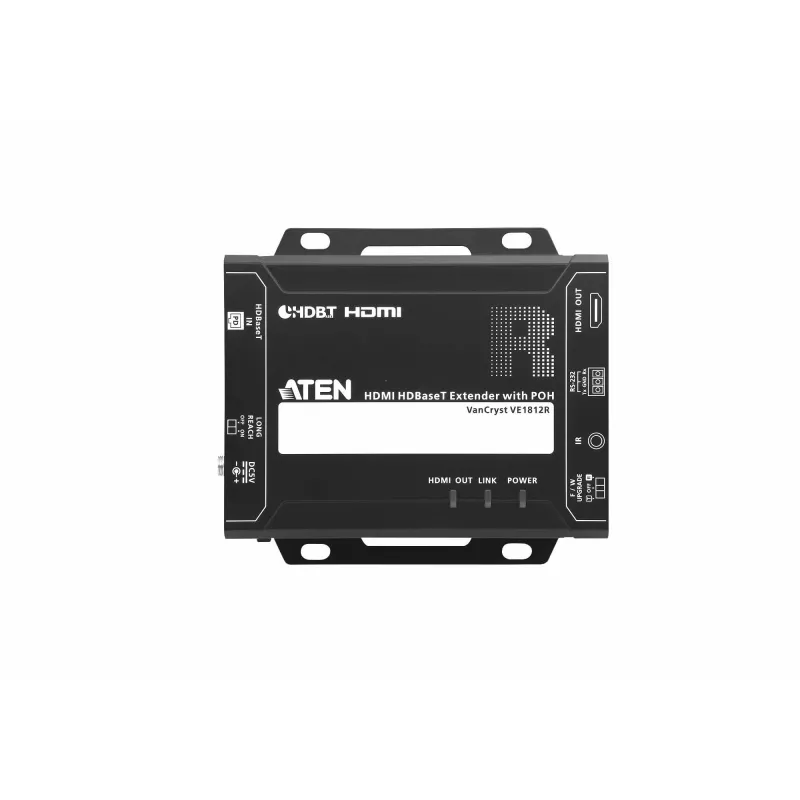

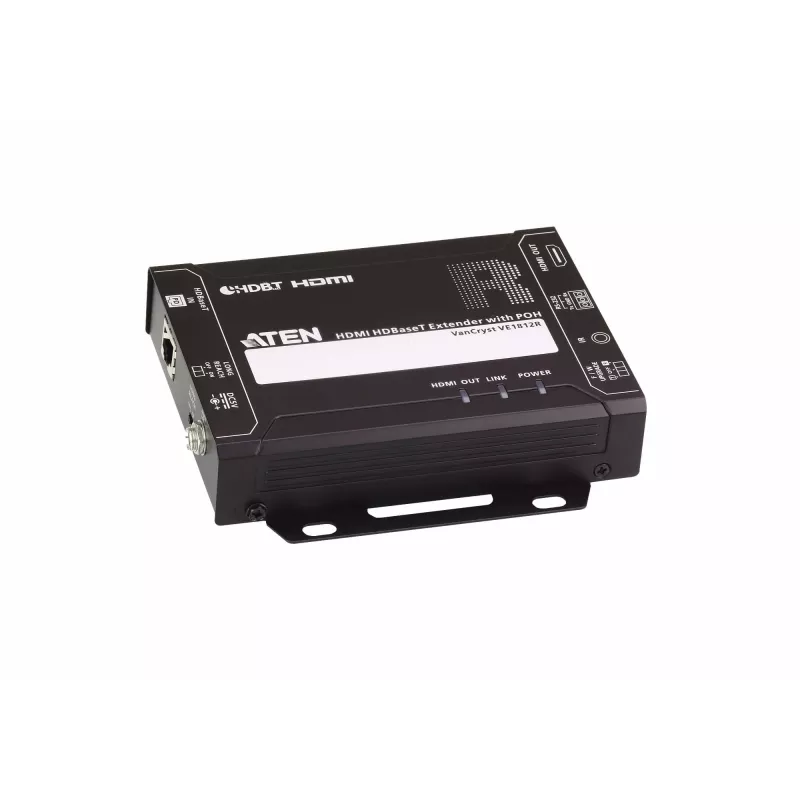

ATEN HDMI HDBaseT Receiver with POH, 4096 x 2160 pixels, AV receiver, 150 m, Wired, 3D, HDCP

ATEN HDMI HDBaseT Receiver with POH, 4096 x 2160 pixels, AV receiver, 150 m, Wired, 3D, HDCP
ATEN HDMI HDBaseT Receiver with POH, 4096 x 2160 pixels, AV receiver, 150 m, Wired, 3D, HDCP
ATEN HDMI HDBaseT Receiver with POH, 4096 x 2160 pixels, AV receiver, 150 m, Wired, 3D, HDCP
ATEN HDMI HDBaseT Receiver with POH, 4096 x 2160 pixels, AV receiver, 150 m, Wired, 3D, HDCP
ATEN HDMI HDBaseT Receiver with POH, 4096 x 2160 pixels, AV receiver, 150 m, Wired, 3D, HDCP
ATEN HDMI HDBaseT Receiver with POH, 4096 x 2160 pixels, AV receiver, 150 m, Wired, 3D, HDCP
ATEN HDMI HDBaseT Receiver with POH, 4096 x 2160 pixels, AV receiver, 150 m, Wired, 3D, HDCP
ATEN HDMI HDBaseT Receiver with POH, 4096 x 2160 pixels, AV receiver, 150 m, Wired, 3D, HDCP
ATEN HDMI HDBaseT Receiver with POH, 4096 x 2160 pixels, AV receiver, 150 m, Wired, 3D, HDCP
ATEN HDMI HDBaseT Receiver with POH, 4096 x 2160 pixels, AV receiver, 150 m, Wired, 3D, HDCP
R5,844
The VE1812R features Power over HDBaseT (POH) which sends power from Tx to Rx over Cat 5e / 6 / 6a cable without any additional power supply. The VE1812R supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the receiver unit (VE1812R) while also accessin... Read More
Stock 1 Code 1502173 Brand ATEN Model VE1812R-AT-G Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, October 6
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
The VE1812R features Power over HDBaseT (POH) which sends power from Tx to Rx over Cat 5e / 6 / 6a cable without any additional power supply. The VE1812R supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the receiver unit (VE1812R) while also accessing the HDMI display device from the transmitter unit (VE1812T). The IR signals can also be extended in both directions.
1x VE1812R HDMI HDBaseT Receiver with POH
1x 0AD9-1F05-26EG Power Adapter
1x RS-232 Terminal Block
1x User Instructions

ATEN HDMI HDBaseT Receiver with POH. Type: AV receiver, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat5e, Cat6, Cat6a. Connectivity technology: Wired. Operating voltage (receiver): 5 V, Power consumption (receiver) (max): 6.4 W. Weight: 650 g, Receiver dimensions (WxDxH): 123 x 140.4 x 30 mm, Receiver weight: 450 g. Quantity per pack: 1 pc(s), Package width: 59 mm, Package depth: 239 mm

Key Highlights
  • HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e / 6 / 6a cable
  • Supports HDBaseT Long Reach Mode – Up to a maximum range of 150 meters @ 1080p
  • POH (Power over HDBaseT) – supplies power from Transmitter to Receiver over a long distance via one Cat 5e / 6 / 6a cable
  • Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
  • AV receiver 4096 x 2160 pixels Black
  • Maximum transfer distance: 150 m
  • HDCP
  • Wired DC-in jack
Specifications
3.5 mm (1/8-inch) out
Yes
3D
Yes
AC adapter included
Yes
Bandwidth
340 MHz
Cable types supported
Cat5e, Cat6, Cat6a
Compliance certificates
RoHS
Connectivity technology
Wired
Consumer Electronics Control (CEC) support
Yes
DC-in jack
Yes
External power adapter
Yes
HDBaseT port
Yes
HDCP
Yes
Impedance
100 Ω
LED indicators
Yes
Master (outer) case gross weight
4.48 kg
Master (outer) case height
175 mm
Master (outer) case length
325 mm
Master (outer) case net weight
3.25 kg
Master (outer) case width
250 mm
Material
Metal
Maximum resolution
4096 x 2160 pixels
Maximum transfer distance
150 m
Number of HDMI outputs
1
Operating relative humidity (H-H)
0 - 80%
Operating temperature (T-T)
0 - 40 °C
Operating voltage (receiver)
5 V
Package depth
239 mm
Package height
160 mm
Package weight
750 g
Package width
59 mm
Power consumption (receiver) (max)
6.4 W
Product colour
Black
Products per master (outer) case
5 pc(s)
Quantity per pack
1 pc(s)
Quick start guide
Yes
Receiver dimensions (WxDxH)
123 x 140.4 x 30 mm
Receiver weight
450 g
Remote (IR) output
1
RJ-45 input ports
1
RS-232 output ports
1
Storage temperature (T-T)
-20 - 60 °C
Supported graphics resolutions
3840 x 2160, 4096 x 2160
Supported video modes
1080p, 2160p
Type
AV receiver
Video out
1
Weight
650 g

Leaflet

Open Leaflet
