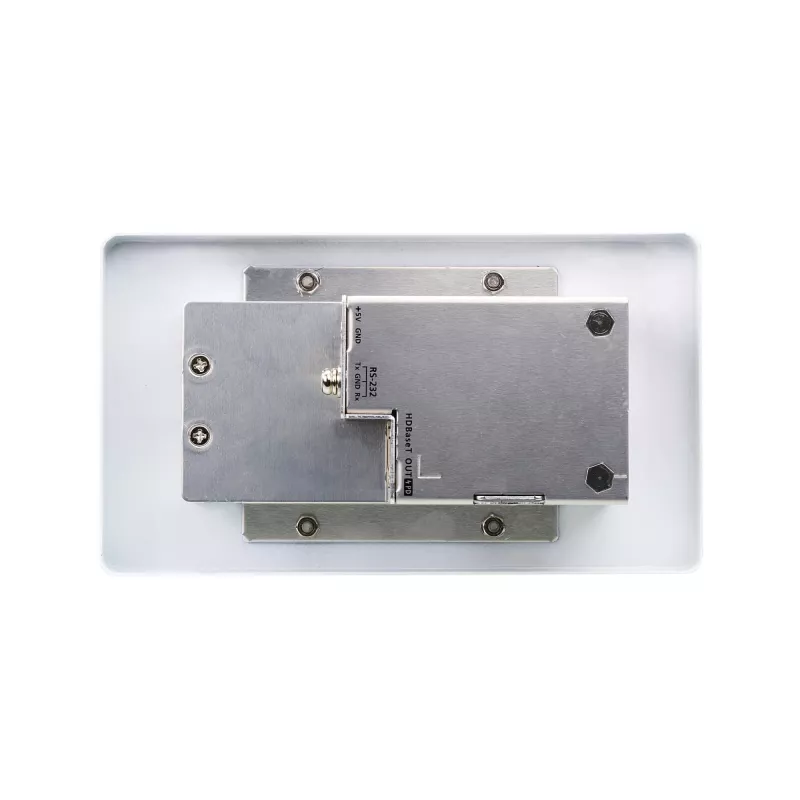

ATEN HDMI & VGA HDBaseT Transmitter with EU Wall Plate / PoH (4K@100m) (HDBaseT Class A)

ATEN HDMI & VGA HDBaseT Transmitter with EU Wall Plate / PoH (4K@100m) (HDBaseT Class A)
ATEN HDMI & VGA HDBaseT Transmitter with EU Wall Plate / PoH (4K@100m) (HDBaseT Class A)
ATEN HDMI & VGA HDBaseT Transmitter with EU Wall Plate / PoH (4K@100m) (HDBaseT Class A)
ATEN HDMI & VGA HDBaseT Transmitter with EU Wall Plate / PoH (4K@100m) (HDBaseT Class A)
ATEN HDMI & VGA HDBaseT Transmitter with EU Wall Plate / PoH (4K@100m) (HDBaseT Class A)
ATEN HDMI & VGA HDBaseT Transmitter with EU Wall Plate / PoH (4K@100m) (HDBaseT Class A)
ATEN HDMI & VGA HDBaseT Transmitter with EU Wall Plate / PoH (4K@100m) (HDBaseT Class A)
ATEN HDMI & VGA HDBaseT Transmitter with EU Wall Plate / PoH (4K@100m) (HDBaseT Class A)
ATEN HDMI & VGA HDBaseT Transmitter with EU Wall Plate / PoH (4K@100m) (HDBaseT Class A)
ATEN HDMI & VGA HDBaseT Transmitter with EU Wall Plate / PoH (4K@100m) (HDBaseT Class A)
ATEN HDMI & VGA HDBaseT Transmitter with EU Wall Plate / PoH (4K@100m) (HDBaseT Class A)
ATEN HDMI & VGA HDBaseT Transmitter with EU Wall Plate / PoH (4K@100m) (HDBaseT Class A)
ATEN HDMI & VGA HDBaseT Transmitter with EU Wall Plate / PoH (4K@100m) (HDBaseT Class A)
ATEN HDMI & VGA HDBaseT Transmitter with EU Wall Plate / PoH (4K@100m) (HDBaseT Class A)
R7,433
1x VE2812AEUT HDMI & VGA HDBaseT Transmitter with EU Wall Plate / PoH1x JCNT-3301-103G 3 Pin RS-232 Terminal Block1x JCNT-3301-102G 2 Pin Power Terminal Block1x Mounting Kit1x 0AD8-1F05-26M1 Power Adapter1x User Instructions ATEN HDMI & VGA HDBaseT Transmitter with EU Wall Plate / PoH (4K@100m) (HD... Read More
Stock 2 Code 1486188 Brand ATEN Model VE2812AEUT-AT-G Warranty 2 Years

Shipping & Returns

Estimated delivery Thursday, October 15
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

1x VE2812AEUT HDMI & VGA HDBaseT Transmitter with EU Wall Plate / PoH
1x JCNT-3301-103G 3 Pin RS-232 Terminal Block
1x JCNT-3301-102G 2 Pin Power Terminal Block
1x Mounting Kit
1x 0AD8-1F05-26M1 Power Adapter
1x User Instructions

ATEN HDMI & VGA HDBaseT Transmitter with EU Wall Plate / PoH (4K@100m) (HDBaseT Class A). Type: AV transmitter, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat5e, Cat6, Cat6a. Connectivity technology: Wired, Audio input: 1 x Mini Stereo. Width: 151 mm, Depth: 86 mm, Height: 51.7 mm. Quantity per pack: 1 pc(s), Package width: 62 mm, Package depth: 283 mm. Master (outer) case width: 300 mm, Master (outer) case length: 336 mm, Master (outer) case height: 194 mm

Key Highlights
  • Extends HDMI or VGA signals over a single Cat 5e/6/6a cable
  • HDMI: 4K distance up to 100m via a Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
  • VGA: 1600 x 1200 and 1920 x 1200 up to 100m via a Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
  • Supports HDBaseT Long Reach Mode – up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p
  • Built-in PoH (Power over HDBaseT) function – the VE2812AEUT receives power supply from the HDBaseT output port on the connected device
  • Supports Auto Switch – automatically switches to a newly plugged-in source
  • AV transmitter 4096 x 2160 pixels White
  • Maximum transfer distance: 150 m
  • Wired
Specifications
AC adapter included
Yes
Audio input
1 x Mini Stereo
Bandwidth
10.2 Gbit/s
Cable types supported
Cat5e, Cat6, Cat6a
Connectivity technology
Wired
Control type
Buttons, Slider
Depth
86 mm
HDMI in
1
Height
51.7 mm
Impedance
100 Ω
LED indicators
Link, Power, Status
Master (outer) case gross weight
3.91 kg
Master (outer) case height
194 mm
Master (outer) case length
336 mm
Master (outer) case net weight
2.1 kg
Master (outer) case width
300 mm
Material
Metal
Maximum resolution
4096 x 2160 pixels
Maximum transfer distance
150 m
Mounting kit
Yes
Operating relative humidity (H-H)
0 - 80%
Operating temperature (T-T)
0 - 40 °C
Package depth
283 mm
Package height
173 mm
Package weight
665 g
Package width
62 mm
Power over Ethernet (PoE)
Yes
Product colour
White
Products per master (outer) case
5 pc(s)
Quantity per pack
1 pc(s)
Quick start guide
Yes
Remote (IR) input
1
Storage temperature (T-T)
-20 - 60 °C
Supported graphics resolutions
1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160, 4096 x 2160
Type
AV transmitter
VGA (D-Sub) input ports
1
Weight
420 g
Width
151 mm
