ASUS Hyper M.2 x16 Gen 4 interface cards/adapter Internal

ASUS Hyper M.2 x16 Gen 4 interface cards/adapter Internal
ASUS Hyper M.2 x16 Gen 4 interface cards/adapter Internal
ASUS Hyper M.2 x16 Gen 4 interface cards/adapter Internal
ASUS Hyper M.2 x16 Gen 4 interface cards/adapter Internal
ASUS Hyper M.2 x16 Gen 4 interface cards/adapter Internal
ASUS Hyper M.2 x16 Gen 4 interface cards/adapter Internal
ASUS Hyper M.2 x16 Gen 4 interface cards/adapter Internal
ASUS Hyper M.2 x16 Gen 4 interface cards/adapter Internal
ASUS Hyper M.2 x16 Gen 4 interface cards/adapter Internal
ASUS Hyper M.2 x16 Gen 4 interface cards/adapter Internal
R1,707
ASUS Hyper M.2 x16 Gen 4 Card (PCIe 4.0/3.0) supports four NVMe M.2 (2242/2260/2280/22110) devices up to 256 Gbps for AMD TRX40/X570 PCIe 4.0 NVMe RAID and Intel platform RAID-on-CPU functionsRAID on CPUThe ASUS Hyper M.2 x16 Gen 4 Card is compatible with the Intel X299, Z390, Z370 and future platfo... Read More
Stock 35 Code 299466 Brand ASUS Model 90MC08A0-M0EAY0 Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, September 29
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
ASUS Hyper M.2 x16 Gen 4 Card (PCIe 4.0/3.0) supports four NVMe M.2 (2242/2260/2280/22110) devices up to 256 Gbps for AMD TRX40/X570 PCIe 4.0 NVMe RAID and Intel platform RAID-on-CPU functions

RAID on CPU
The ASUS Hyper M.2 x16 Gen 4 Card is compatible with the Intel X299, Z390, Z370 and future platforms' RAID-on-CPU function, and supports PCIe 4.0 NVMe RAID on the AMD TRX40 and X570 platforms. Unused CPU PCle lanes can be assigned to storage, allowing you to create a bootable RAID array with up to four M.2 SSDs.

One card, 8X the bandwidth
The ASUS Hyper M.2 x16 Gen 4 Card uses PCIe 4.0, which doubles the bandwidth per lane compared to PCIe 3.0. With four M.2 slots, it offers up to 256 Gbps of bandwidth per card, 8X the bandwidth of a single PCIe 3.0 drive.

Design for unthrottled transfer speed

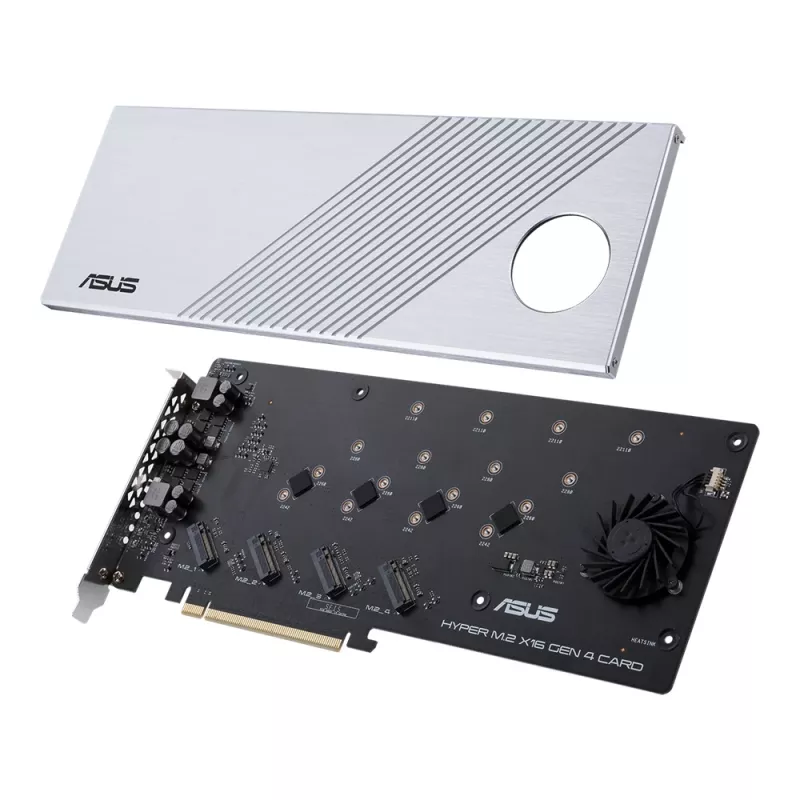

The ASUS Hyper M.2 x16 Gen 4 Card has four M.2 slots — supporting both PCIe 3.0 and 4.0 — that allow you to expand your system with high-performance SSD storage. Designed for the latest generation of NVMe drives, the card features an upgraded power supply that provides up to 14W of power per drive, as well as a large heatsink and active fan to ensure that drives stay cool for optimum performance.

ASUS Hyper M.2 x16 Gen 4. Host interface: PCIe, Output interface: M.2, Expansion card standard: PCIe 4.0. Product colour: Silver, Purpose: PC, Cooling type: Active. Data transfer rate (max): 256 Gbit/s. Width: 270 mm, Depth: 122 mm, Height: 15 mm. Package type: Box

Key Highlights
  • Two-phase power solution with up to 14-watt output supports the latest NVMe drives
  • Large heatsink and active fan reduces M.2 SSD temperatures for unthrottled transfer speeds and enhanced reliability

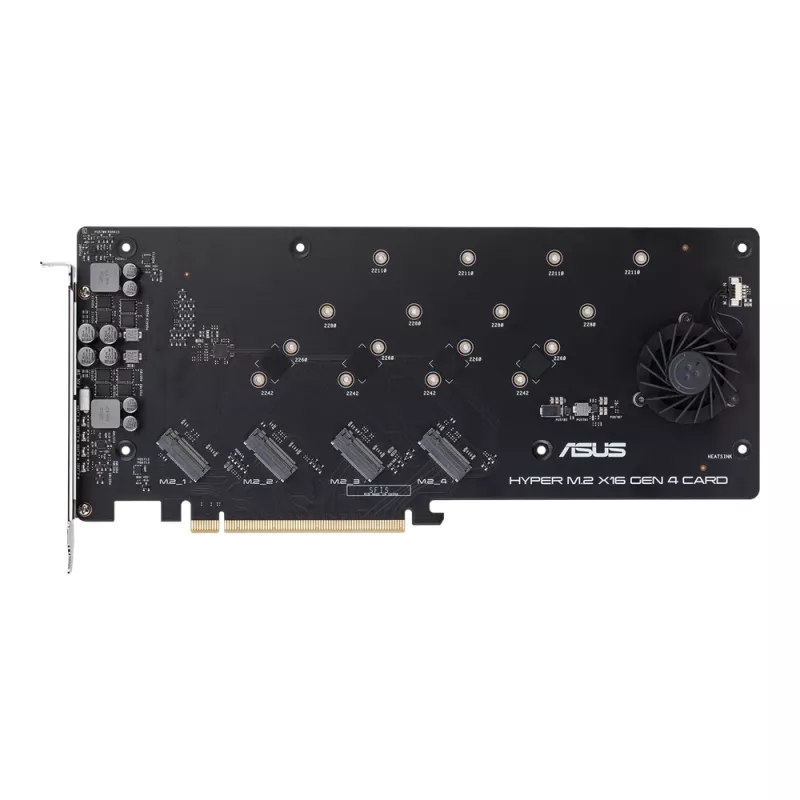

  • Adapted server-grade PCB supports up to four PCIe 4.0/3.0 M.2 drives, with up to 256 Gbps bandwidth for smooth data transfers
  • Compatible with AMD TRX40/X570 PCIe 4.0 for NVMe RAID and supports Intel® platform RAID-on-CPU functions
  • Also support other vendors’ motherboards via PCIe bifurcation in BIOS setting
  • Internal
  • Host interface: PCIe
  • Output interface: M.2
  • Purpose: PC
  • 256 Gbit/s
  • Silver
Specifications
Cooling type
Active
Data transfer rate (max)
256 Gbit/s
Depth
122 mm
Easy to install
Yes
Expansion card standard
PCIe 4.0
Harmonized System (HS) code
84733020
Height
15 mm
Host interface
PCIe
Internal
Yes
LED indicators
Access
Number of expansion slots
4
Number of fans
1 fan(s)
Output interface
M.2
Package type
Box
Product colour
Silver
Purpose
PC
Quantity
1
Width
270 mm

Manual

Open Manual

Leaflet

Open Leaflet
Price history over the last 6 months
ASUS Hyper M.2 x16 Gen 4 interface cards/adapter Internal
Current
R1,707
Lowest
R1,419
Highest
R1,751
Change 24H
+R269   +19%
Week
+R285   +20%
Month
+R275   +19%
