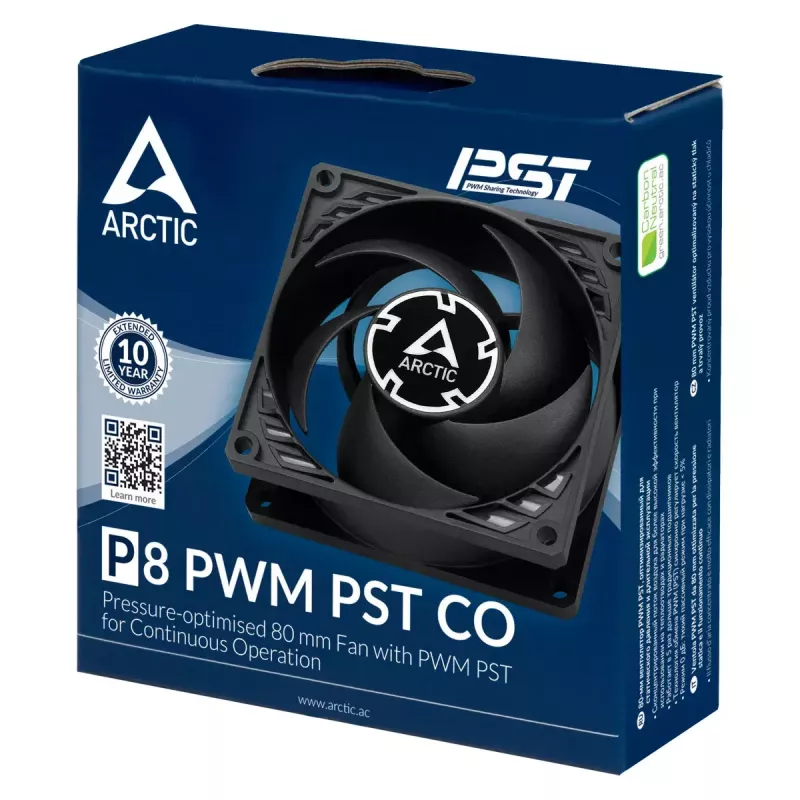

ARCTIC P8 PWM PST CO - Pressure-optimised 80 mm Fan with PWM PST for Continuous Operation

ARCTIC P8 PWM PST CO - Pressure-optimised 80 mm Fan with PWM PST for Continuous Operation
ARCTIC P8 PWM PST CO - Pressure-optimised 80 mm Fan with PWM PST for Continuous Operation
ARCTIC P8 PWM PST CO - Pressure-optimised 80 mm Fan with PWM PST for Continuous Operation
ARCTIC P8 PWM PST CO - Pressure-optimised 80 mm Fan with PWM PST for Continuous Operation
ARCTIC P8 PWM PST CO - Pressure-optimised 80 mm Fan with PWM PST for Continuous Operation
ARCTIC P8 PWM PST CO - Pressure-optimised 80 mm Fan with PWM PST for Continuous Operation
ARCTIC P8 PWM PST CO - Pressure-optimised 80 mm Fan with PWM PST for Continuous Operation
ARCTIC P8 PWM PST CO - Pressure-optimised 80 mm Fan with PWM PST for Continuous Operation
ARCTIC P8 PWM PST CO - Pressure-optimised 80 mm Fan with PWM PST for Continuous Operation
ARCTIC P8 PWM PST CO - Pressure-optimised 80 mm Fan with PWM PST for Continuous Operation
ARCTIC P8 PWM PST CO - Pressure-optimised 80 mm Fan with PWM PST for Continuous Operation
ARCTIC P8 PWM PST CO - Pressure-optimised 80 mm Fan with PWM PST for Continuous Operation
ARCTIC P8 PWM PST CO - Pressure-optimised 80 mm Fan with PWM PST for Continuous Operation
ARCTIC P8 PWM PST CO - Pressure-optimised 80 mm Fan with PWM PST for Continuous Operation
ARCTIC P8 PWM PST CO - Pressure-optimised 80 mm Fan with PWM PST for Continuous Operation
ARCTIC P8 PWM PST CO - Pressure-optimised 80 mm Fan with PWM PST for Continuous Operation
ARCTIC P8 PWM PST CO - Pressure-optimised 80 mm Fan with PWM PST for Continuous Operation
ARCTIC P8 PWM PST CO - Pressure-optimised 80 mm Fan with PWM PST for Continuous Operation
ARCTIC P8 PWM PST CO - Pressure-optimised 80 mm Fan with PWM PST for Continuous Operation
ARCTIC P8 PWM PST CO - Pressure-optimised 80 mm Fan with PWM PST for Continuous Operation
ARCTIC P8 PWM PST CO - Pressure-optimised 80 mm Fan with PWM PST for Continuous Operation
ARCTIC P8 PWM PST CO - Pressure-optimised 80 mm Fan with PWM PST for Continuous Operation
ARCTIC P8 PWM PST CO - Pressure-optimised 80 mm Fan with PWM PST for Continuous Operation
ARCTIC P8 PWM PST CO - Pressure-optimised 80 mm Fan with PWM PST for Continuous Operation
ARCTIC P8 PWM PST CO - Pressure-optimised 80 mm Fan with PWM PST for Continuous Operation
ARCTIC P8 PWM PST CO - Pressure-optimised 80 mm Fan with PWM PST for Continuous Operation
R226
Not only that we at ARCTIC free the IT world from noise – we care for the right sound as well!As an international company, our expertise extends over noise reduction in PCs to consumer electronics products. Optimised for Static Pressure During the development of the new P8 P... Read More
Stock 100 Code 1393725 Brand ARCTIC Model ACFAN00151A Warranty 2 Years

Shipping & Returns

Estimated delivery Friday, October 2
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
Not only that we at ARCTIC free the IT world from noise – we care for the right sound as well!

As an international company, our expertise extends over noise reduction in PCs to consumer electronics products.
Optimised for Static Pressure

Optimised for Static Pressure

During the development of the new P8 PWM PST CO, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P8 PWM PST CO is particularly suitable for use on heatsinks and radiators.

For Continuous Operation

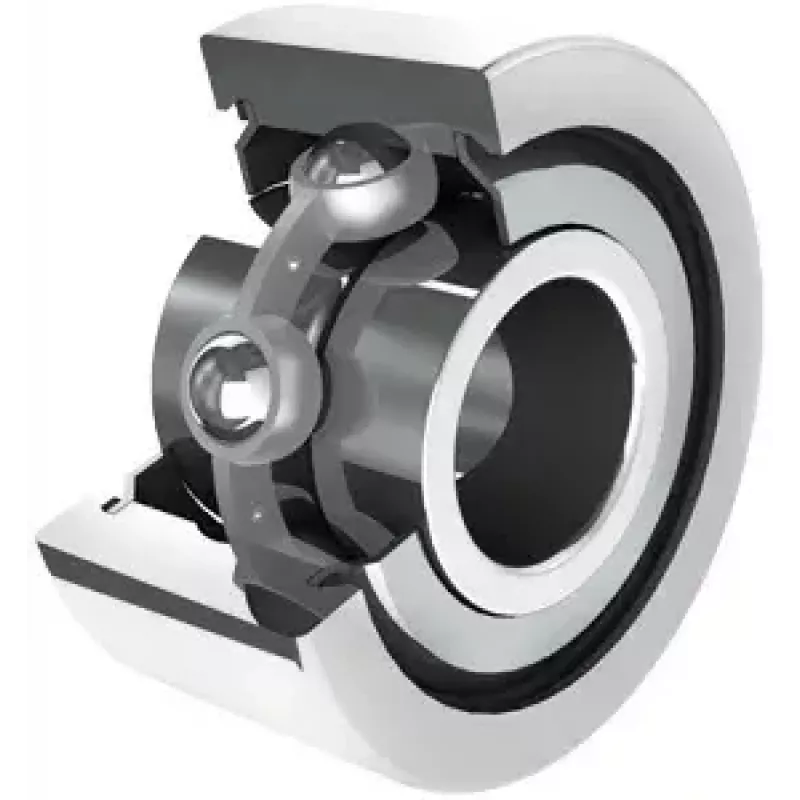

The premium quality Japanese dual ball bearing allows continuous operation 24/7 without the slightest compromise in performance. Dust and high temperature are affecting this bearing a lot less than generic sleeve or one ball bearings and thus make it the perfect choice when reliability is essential.
For Continuous Operation
Maximum Quietness, Minimum Vibration

Maximum Quietness, Minimum Vibration

Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable.Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

Extended Life Span

A 10 °C lower motor temperature roughly doubles the life span of a fan.The new ARCTIC motor has a four times longer service life through its low coil temperature.Consequently, we have extended the warranty to 10 years.
Extended Life Span
200 to 3000 RPM regulated via PWM

200 to 3000 RPM regulated via PWM

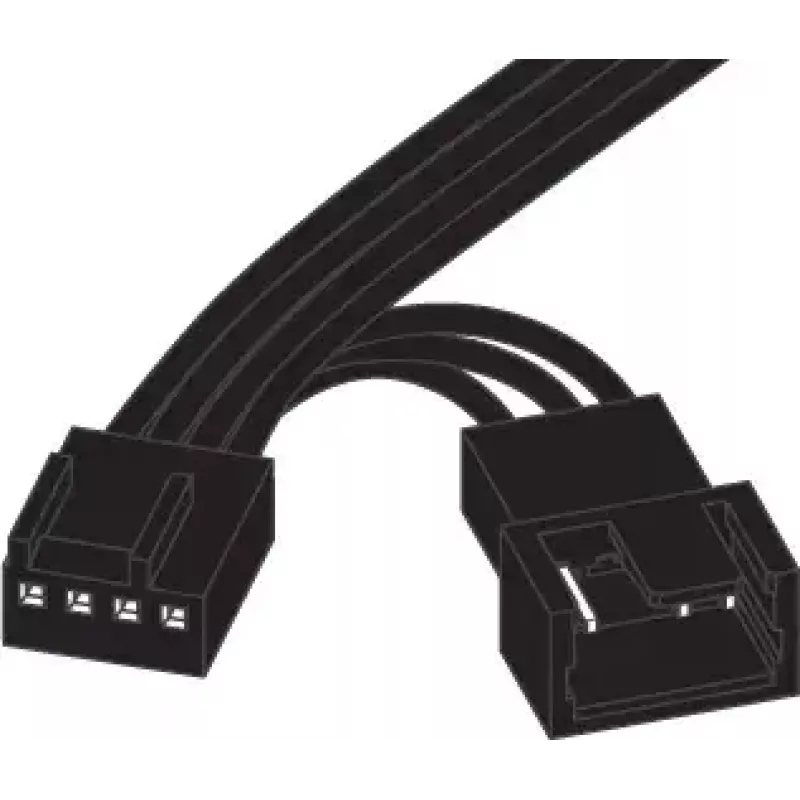

With a wide range of regulation and the PWM Sharing Technology (PST), the P8 PWM PST CO fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.

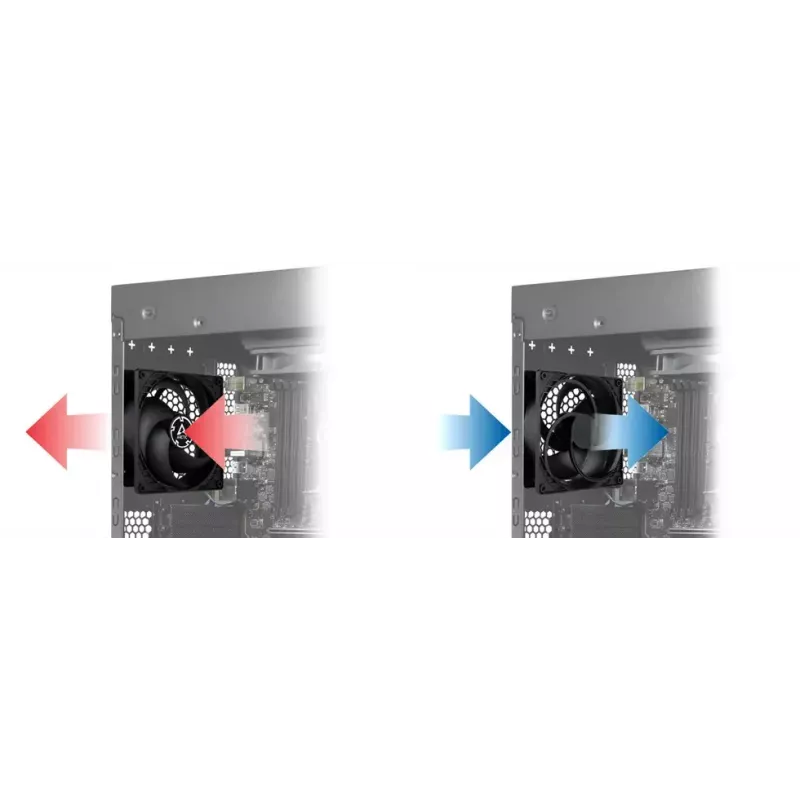

Two Way Installation

Push warm air out of the casePull cool air into your case
Two Way Installation

How to use

Install the Arctic P8 PWM PST CO in any compatible 80 × 25 mm fan mount using the standard screw holes. Connect the fan to a PWM-capable header or to a PST chain for synchronized speed control. Ensure correct airflow orientation for intake or exhaust depending on chassis layout. Operate at 12 V and use motherboard or fan controller settings to adjust speed within the 200–3000 RPM range.

Recommendations

For quiet operation, keep the fan speed profile conservative during low loads and allow automatic PWM control to increase speed under higher thermal load. Periodically check for dust buildup and clean the blades to maintain airflow and prolong bearing life.

Key Highlights
  • Small form-factor PC cases
  • Case ventilation and spot cooling for components
  • Systems requiring continuous 24/7 operation
  • Enclosures or devices with 80 × 25 mm fan mounts
  • Type: Fan
  • Fan diameter: 80 mm
  • Dimensions: 80 × 25 mm
  • Speed: 200–3000 RPM (PWM control)
  • Airflow: 40.3 m³/h
  • Maximum air pressure: 1.9 mmH2O
  • Noise level: 0.3 sone
  • Bearing: Fluid Dynamic Bearing
  • Operating voltage: 12 V
  • Colour: Black
  • Weight: 0.0785 kg
  • EAN: 4895213702041
Specifications
Airflow
40.3 m³/h
Bearing type
Fluid Dynamic Bearing (FDB)
Compatible processor series
Not supported
Country of origin
China
Depth
25 mm
Fan connector
4-pin
Fan diameter
8 cm
Height
80 mm
Manual
Yes
Maximum air pressure
1.9 mmH2O
Maximum airflow
23.4 cfm
Mounting hole pattern (W x D)
71.5 x 71.5 mm
Noise level
0.3 sone
Number of fan blades
5
Number of fans
1 fan(s)
Number of screws
4
Package depth
26 mm
Package height
82.5 mm
Package type
Box
Package weight
97 g
Package width
82.5 mm
Product colour
Black
Pulse-width modulation (PWM) support
Yes
Rated current
0.09 A
Rotational speed (max)
3000 RPM
Rotational speed (min)
200 RPM
Screws included
Yes
Suitable location
Computer case
Supported processor sockets
Not supported
Type
Fan
Voltage
12 V
Weight
78.5 g
Width
80 mm
