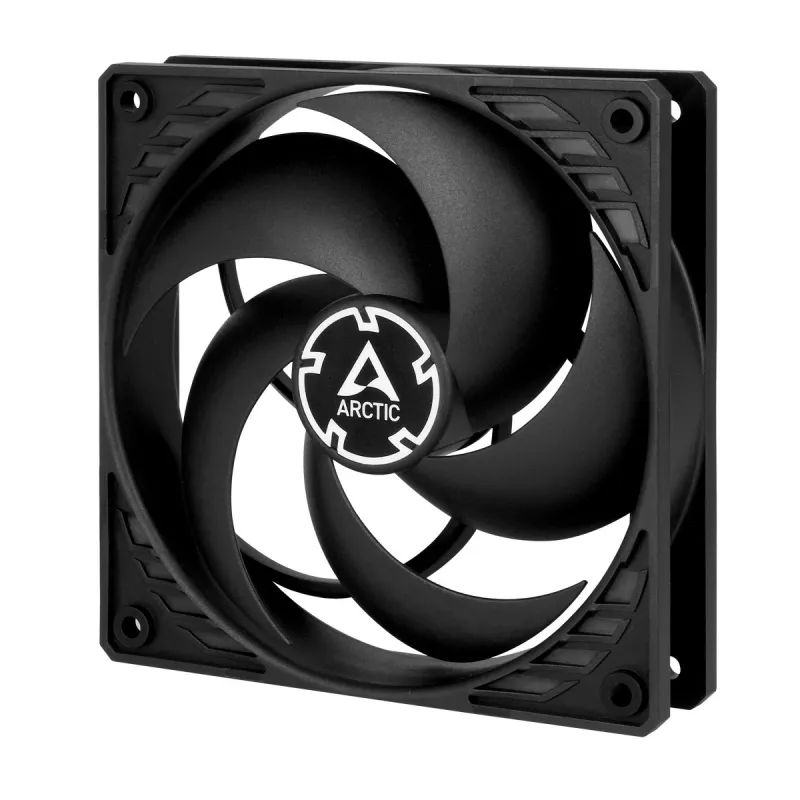

ARCTIC P12 PWM PST (Black/Black) Pressure-optimised 120 mm Fan with PWM PST

ARCTIC P12 PWM PST (Black/Black) Pressure-optimised 120 mm Fan with PWM PST
ARCTIC P12 PWM PST (Black/Black) Pressure-optimised 120 mm Fan with PWM PST
ARCTIC P12 PWM PST (Black/Black) Pressure-optimised 120 mm Fan with PWM PST
ARCTIC P12 PWM PST (Black/Black) Pressure-optimised 120 mm Fan with PWM PST
ARCTIC P12 PWM PST (Black/Black) Pressure-optimised 120 mm Fan with PWM PST
ARCTIC P12 PWM PST (Black/Black) Pressure-optimised 120 mm Fan with PWM PST
ARCTIC P12 PWM PST (Black/Black) Pressure-optimised 120 mm Fan with PWM PST
ARCTIC P12 PWM PST (Black/Black) Pressure-optimised 120 mm Fan with PWM PST
ARCTIC P12 PWM PST (Black/Black) Pressure-optimised 120 mm Fan with PWM PST
ARCTIC P12 PWM PST (Black/Black) Pressure-optimised 120 mm Fan with PWM PST
ARCTIC P12 PWM PST (Black/Black) Pressure-optimised 120 mm Fan with PWM PST
ARCTIC P12 PWM PST (Black/Black) Pressure-optimised 120 mm Fan with PWM PST
R500
Our coolers have pushed the limits further every year - and all that at dropping noise levels. We have put our utmost effort into innovative technologies and fair prices, what made us well known for products with an unparalleled price/performance ratio. We provide you headroom for over-clocking and ... Read More
Stock Out Of StockNo Stock Code 2445161 Brand ARCTIC Model ACFAN00120A Warranty 2 Years

Shipping & Returns

Our coolers have pushed the limits further every year - and all that at dropping noise levels. We have put our utmost effort into innovative technologies and fair prices, what made us well known for products with an unparalleled price/performance ratio. We provide you headroom for over-clocking and guarantee you lowest noise levels at affordable prices.
Optimised for Static Pressure

Optimised for Static Pressure

During the development of the new P12 PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM PST is particularly suitable for use on heatsinks and radiators.

Strong Cooling Performance

Numerous improvements, such as an updated engine technology and a newly developed fan design, have noticeably increased the performance of P-fans.In internal performance tests leveled to 28 dB (A), the new P-fans left many competitors behind.
Strong Cooling Performance
More Efficient Technology

More Efficient Technology

The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P12 PWM PST to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.

Maximum Quietness, Minimum Vibration

Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable.Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.
Maximum Quietness, Minimum Vibration
Extended Life Span

Extended Life Span

A 10 °C lower motor temperature roughly doubles the life span of a fan.The new ARCTIC motor has a four times longer service life through its low coil temperature.Consequently, we have extended the warranty to 10 years.

200 to 1800 RPM regulated via PWM PST

Thanks to the 4-pin connector, the RPM can be regulated in a broad spectrum via PWM.In this way, noise is kept at a minimum while maximum cooling performance is guaranteed when needed.
200 to 1800 RPM regulated via PWM PST
High Quality Bearing

High Quality Bearing

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
Key Highlights
  • Optimised for static pressure
  • Ideal choice on heatsinks, radiators and (partly-) covered case vents
  • Push- or pull-configuration
  • PWM Sharing Technology (PST) regulates fan speed synchronously
  • Newly developed, very quiet motor
  • Extended life span
  • 0 dB mode: silent passive mode when PWM signal is below 5 %
  • Available in three sleek colors
  • Computer case Fan 12 cm 1800 RPM
  • 56.3 cfm 2.2 mmH2O Fluid Dynamic Bearing (FDB)
  • Pulse-width modulation (PWM) support
  • Black
Specifications
Airflow
95.65 m³/h
Bearing type
Fluid Dynamic Bearing (FDB)
Cable length
0.4 m
Compatible processor series
Not supported
Country of origin
China
Depth
120 mm
Fan connector
4-pin + 4-pin
Fan diameter
12 cm
Harmonized System (HS) code
84733080
Height
25 mm
Maximum air pressure
2.2 mmH2O
Maximum airflow
56.3 cfm
Noise level
0.3 sone
Number of fan blades
5
Number of fans
1 fan(s)
Number of screws
4
Package depth
123 mm
Package height
27 mm
Package type
Box
Package weight
176 g
Package width
123 mm
Power consumption (typical)
0.96 W
Product colour
Black
Pulse-width modulation (PWM) support
Yes
Rated current
0.08 A
Rotational speed (max)
1800 RPM
Rotational speed (min)
200 RPM
Screws included
Yes
Starting voltage
3.9 V
Suitable location
Computer case
Supported processor sockets
Not supported
Type
Fan
Voltage
12 V
Weight
145 g
Width
120 mm

Leaflet

Open Leaflet
