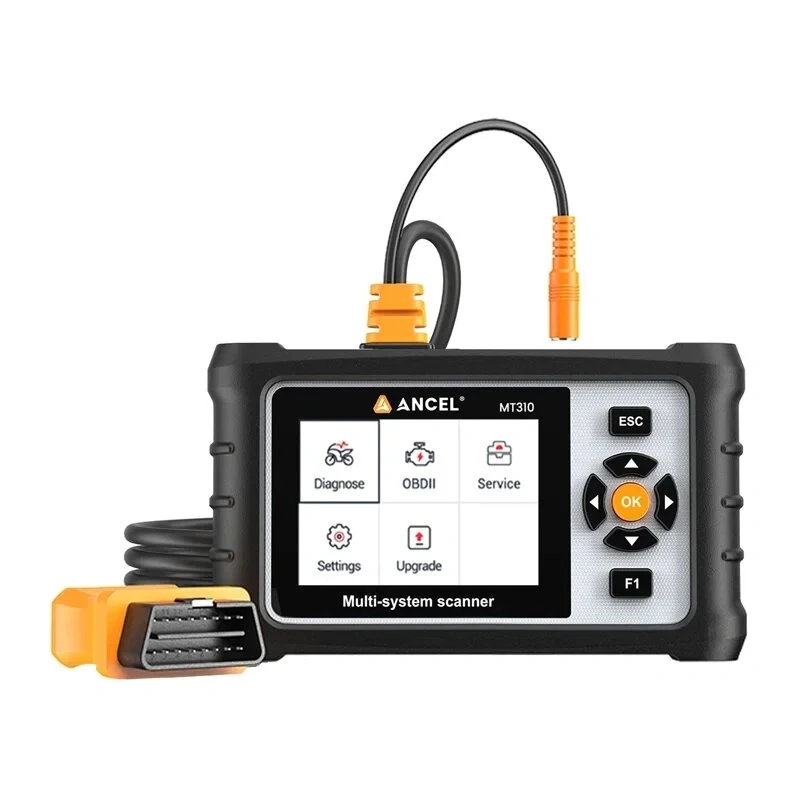

ANCEL MT310 Motorcycle Diagnostic Scanner

The ANCEL MT310 is a motorcycle diagnostic scanner with a 3.5-inch color TFT display. It enables diagnostics for BMW, Harley, Honda, Yamaha, Suzuki, and Kawasaki, and supports the OBDII standard as well as CAN, J1850 PWM, J1850 VPW, ISO9141, and KWP2000 protocols.

Key features

• Automatic vehicle search using the Auto VIN feature
• Manual vehicle selection from the menu if automatic identification fails
• Multi-system diagnostics including ABS, DME, SME, GMS, and ESA2 (depending on motorcycle model)
• Reading and clearing error codes, viewing data streams, checking software version information, and monitoring vehicle operating parameters
• OBDII functions: reading and clearing codes, I/M readiness, data stream, O2 sensor test, on-board monitoring, evaporative system test, and vehicle and software information
• Service menu with special functions such as ETC reset and bleeding (availability depends on vehicle configuration and model)
• Software updates via USB connection to a computer or wirelessly via Wi-Fi

Specifications

• Brand: Ancel
• Model: MT310
• Device type: Motorcycle diagnostic scanner
• Display: 3.5" color TFT display
• Power supply voltage: 8–18 V DC
• Operating temperature: 0°C to 60°C
• Storage temperature: -20°C to 70°C
• Supported motorcycle brands: BMW, Harley, Honda, Yamaha, Suzuki, Kawasaki, and others (with OBDII)
• Supported OBDII protocols: CAN, J1850 PWM, J1850 VPW, ISO9141, KWP2000
• Updates: Via USB / Wi-Fi
• Languages: German, English, Spanish, French, Portuguese
• Number of buttons: 7
