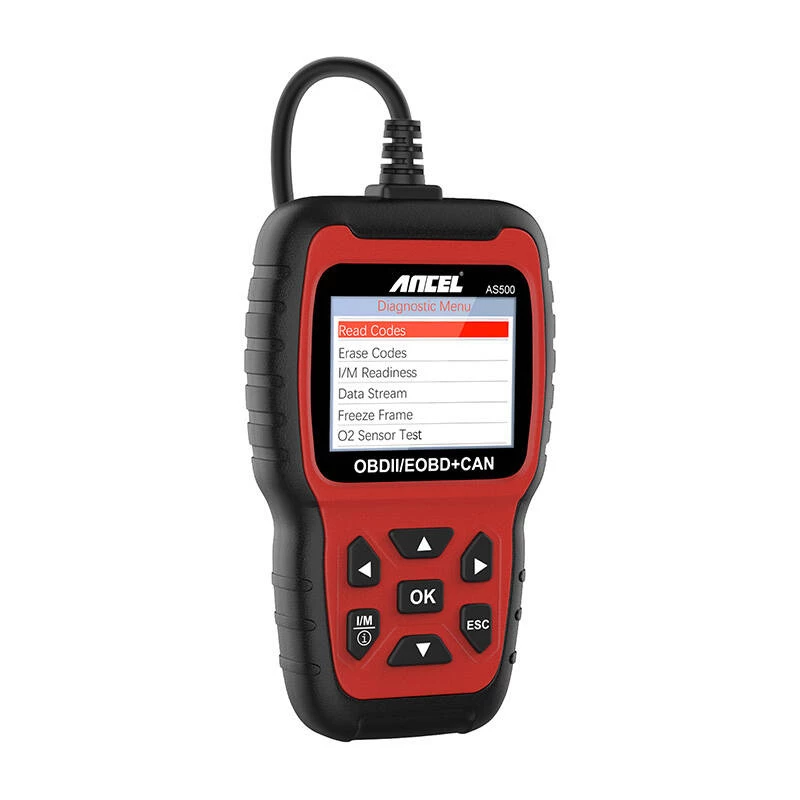

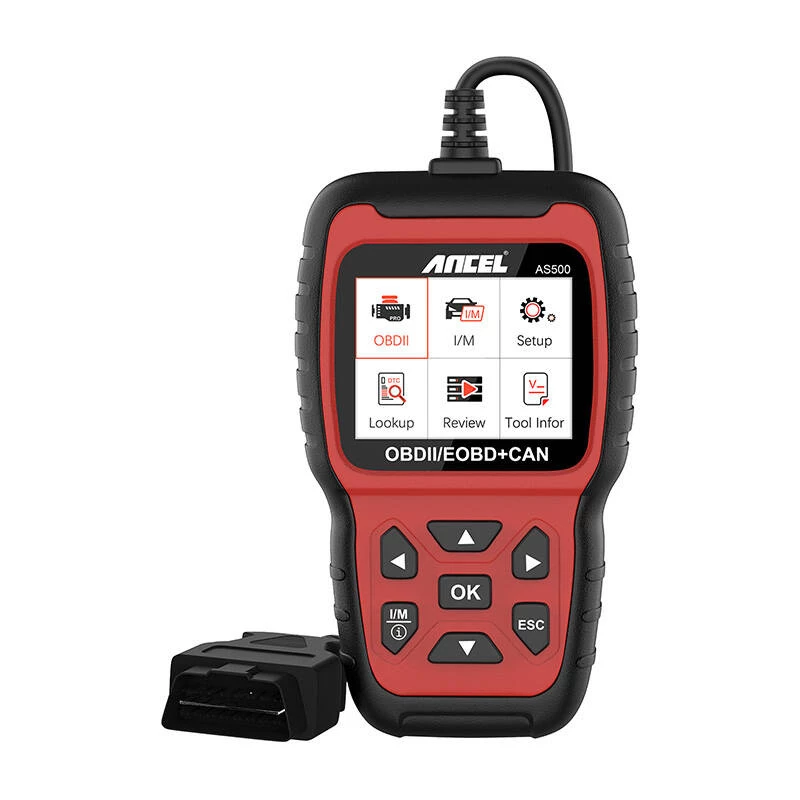

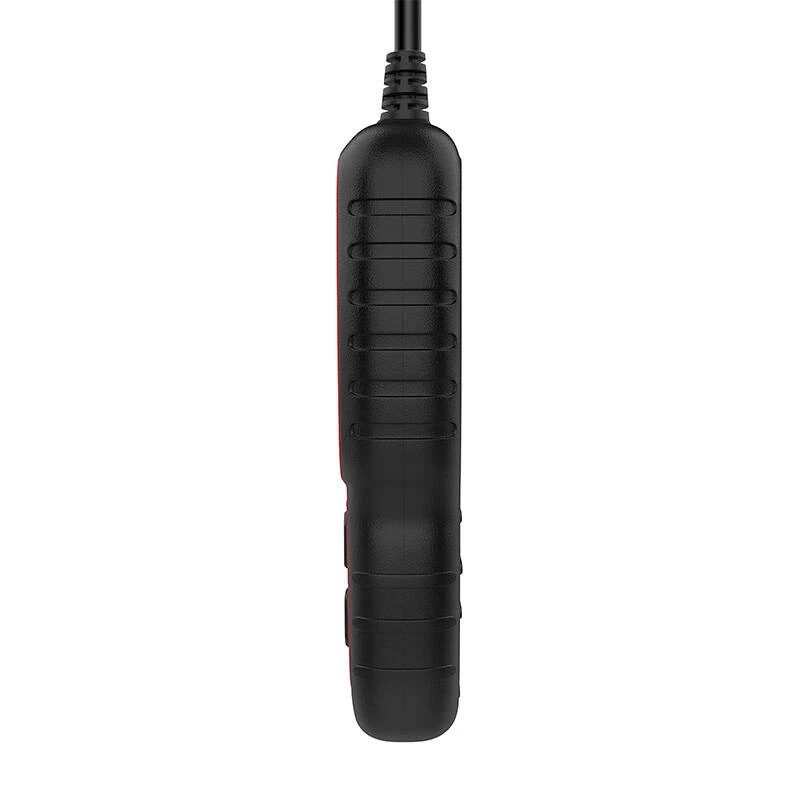

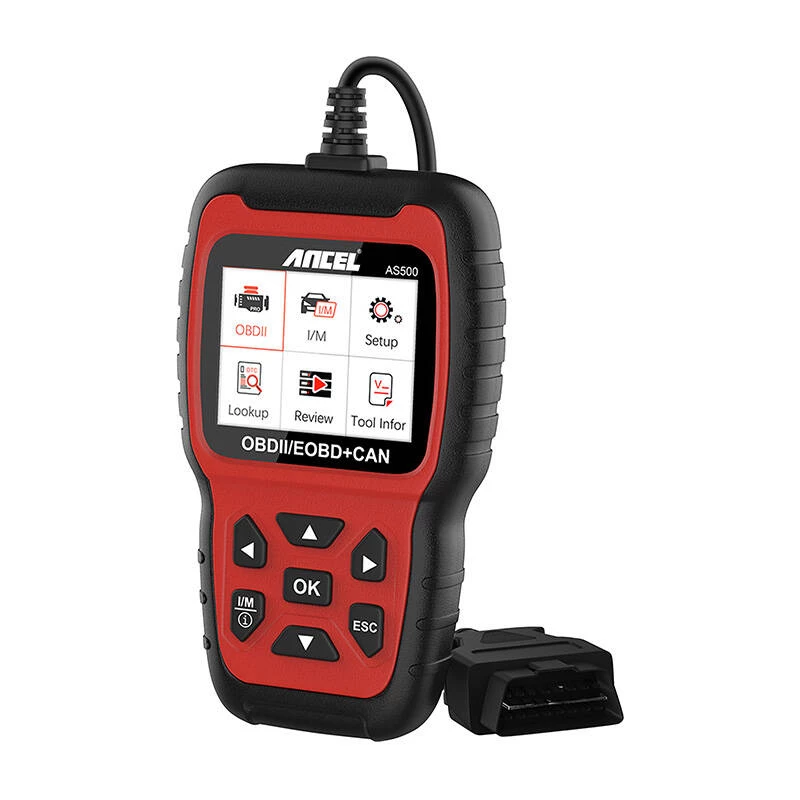

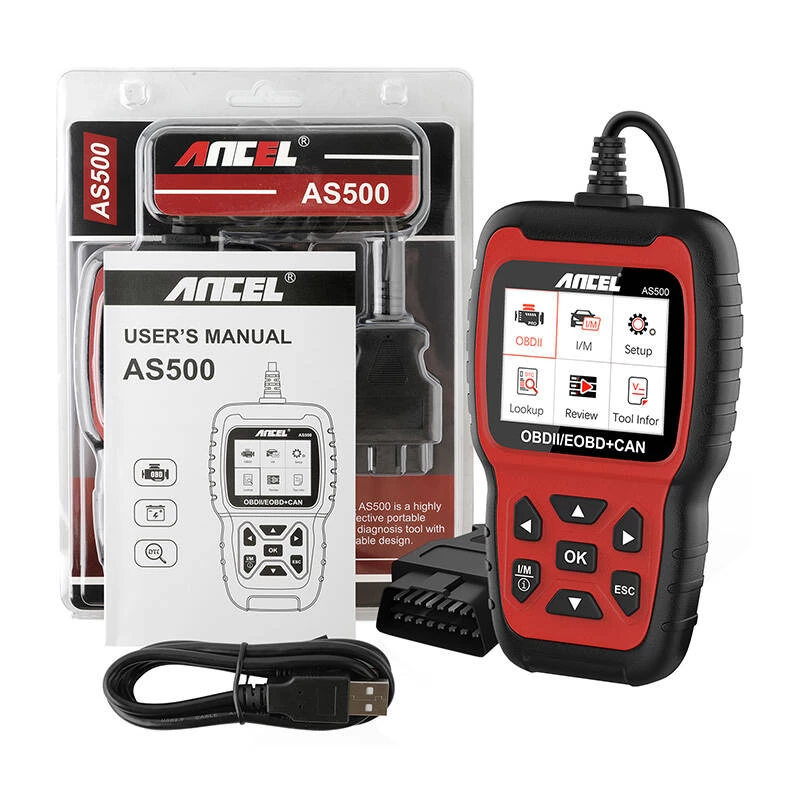

ANCEL AS500/AC105 OBD2 Diagnostic Scanner

The ANCEL AS500/AC105 is a professional OBD2 diagnostic scanner designed for both DIY enthusiasts and professional mechanics. It provides comprehensive vehicle diagnostics, including reading and clearing trouble codes, live data streaming, and advanced system tests. With a 2.4-inch TFT color display and intuitive interface, it offers easy navigation and clear data presentation. The scanner supports all OBD2 protocols and is compatible with a wide range of vehicles from 1996 onwards. Lifetime free updates via USB ensure you always have the latest software.

Advantages

Full OBD2 functionality including Mode 6 and EVAP tests; large color screen for easy reading; lifetime free updates; multilingual support; compact and portable design.

Suitable for

• Car owners who want to diagnose and clear check engine lights
• Mechanics needing a reliable code reader for quick diagnostics
• Fleet managers monitoring vehicle health

Key specifications

• Supported Protocols: OBD2, EOBD, CAN, J1850 PWM, J1850 VPW, ISO9141, KWP2000
• Display: 2.4-inch TFT Color Screen
• Diagnostic Functions: Read & Clear DTCs, Live Data, I/M Readiness, Freeze Frame, O2 Sensor Test, On-Board Monitor Test (Mode 6), EVAP System Test (Mode 8)
• Vehicle Info: VIN, CIN, CVN
• Update: USB via PC, Lifetime Free Updates
• Operating Voltage: 9-18V DC
• Connectivity: Standard 16-pin OBD2 Connector, Cable Length ~1m
• Languages: English, Spanish, French, German, Russian, Italian, Portuguese, Polish, Finnish, Dutch, Czech, Swedish, Danish, Japanese, Chinese
• Certifications: CE, FCC, RoHS

Recommendations

For best results, ensure your vehicle is OBD2 compliant. The scanner is ideal for gasoline vehicles from 2001 and diesel from 2004 in Europe, and 1996 in the US. Always follow safety instructions when using diagnostic equipment.
