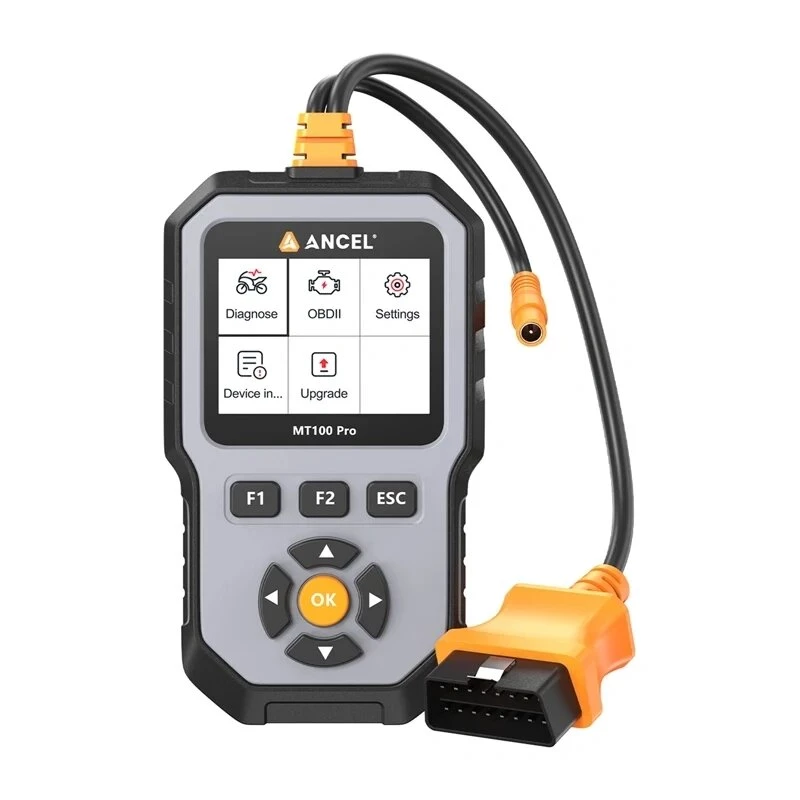

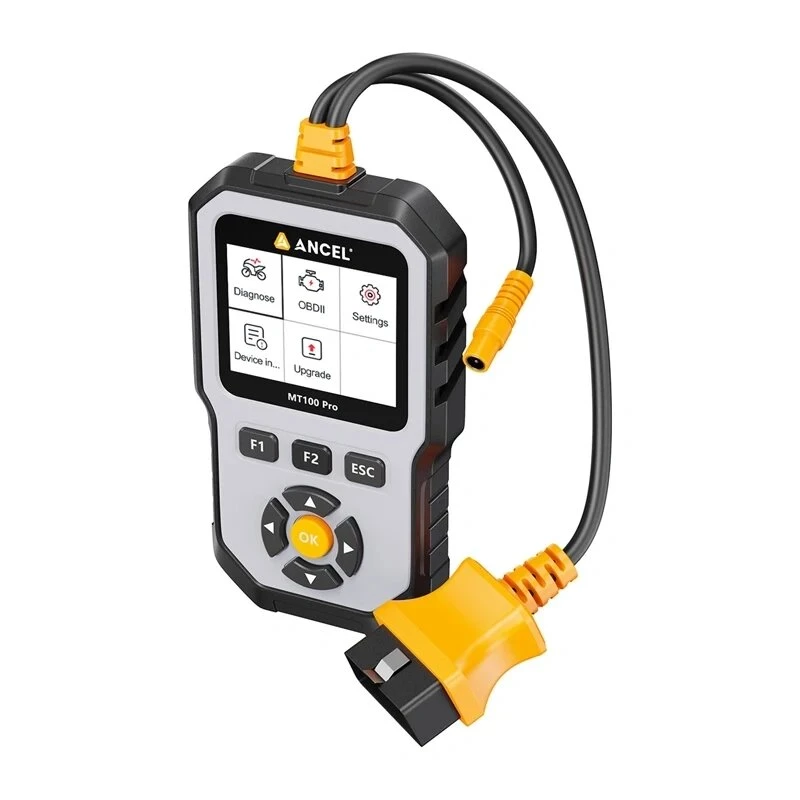

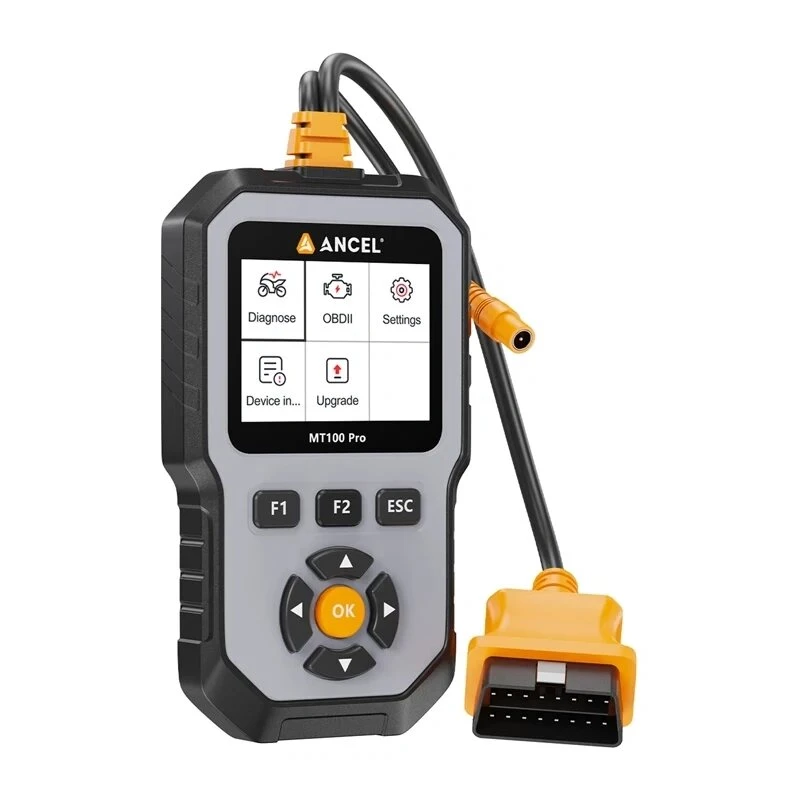

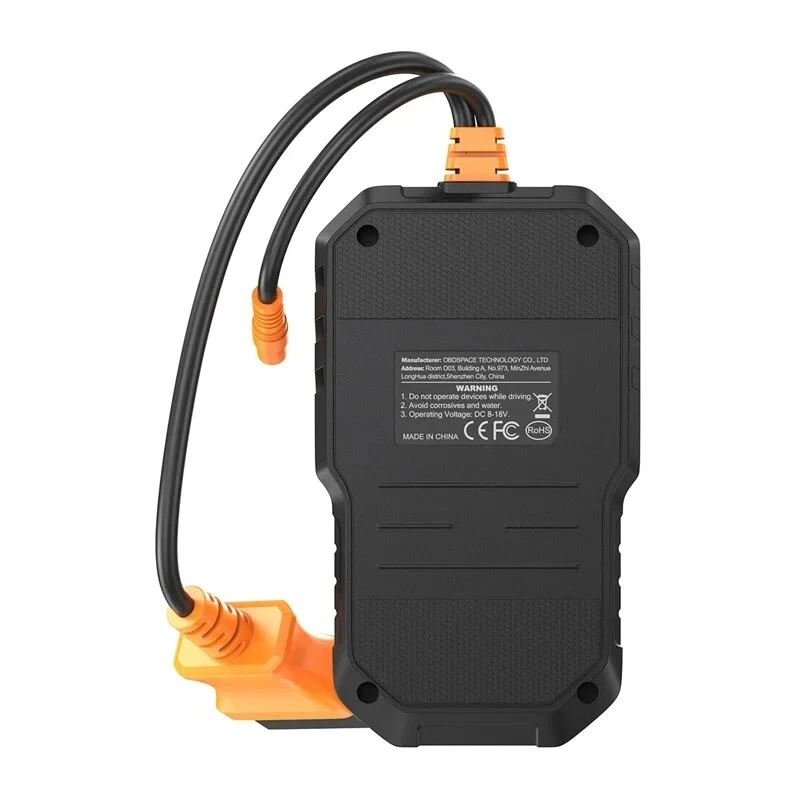

ANCEL MT100 PRO Motorcycle Diagnostic Scanner with 3.5-inch TFT Display and Free Lifetime Updates

Where generic OBD-II readers fall short on two-wheelers, the ANCEL MT100 PRO steps in with dedicated motorcycle diagnostics. This scanner delivers manufacturer-level access to engine, ABS, TPMS, and immobilizer systems across 10+ major bike brands, making it a must-have for workshops and serious home mechanics. Its 3.5-inch TFT colour display and intuitive interface put professional-grade functionality at your fingertips, while free lifetime updates ensure it keeps pace with new models.

Highlights

• Reads and clears Diagnostic Trouble Codes (DTCs) for engine, ABS, TPMS, and other systems
• Displays live ECU data streams in real time
• Performs actuation tests, adaptation, coding, and service light resets
• Compatible with 10+ major brands including Honda, Yamaha, Kawasaki, Suzuki, BMW, Ducati, Harley-Davidson, KTM, and more
• 3.5-inch TFT colour display with a user-friendly interface
• Free lifetime online software updates via USB
• Includes a full set of adapter cables for different motorcycle connectors

In daily use

Simply connect the MT100 PRO to your motorcycle’s diagnostic port using the appropriate adapter, power it from the bike’s battery (9–18V), and navigate the intuitive menu. You can quickly scan all modules, pinpoint the faulty sensor or actuator, and clear the codes after repair. The live data feature allows you to monitor RPM, throttle position, coolant temperature, and many other parameters in graph or text mode. For advanced tasks, the scanner supports ABS bleeding and TPMS replacement on compatible models, making it an indispensable tool for maintenance and troubleshooting.

Full specifications

• Display: 3.5-inch TFT colour display
• Operating voltage: DC 9-18V (vehicle powered)
• Diagnostic functions: Read/Clear DTCs, Live Data, ECU Information, Actuation Test, ABS Test, TPMS Test, Immobilizer Test, Service Light Reset, Adaptation, Coding
• Supported motorcycle brands: Honda, Yamaha, Kawasaki, Suzuki, KTM, BMW, Ducati, Harley-Davidson, Aprilia, Piaggio, Vespa, Kymco, SYM, etc. (over 10 major brands)
• Update method: Free lifetime online update via USB
• Operating temperature: -20°C to 60°C (-4°F to 140°F)
• Storage temperature: -30°C to 70°C (-22°F to 158°F)
• Diagnostic protocols: OBD-II (for compatible bikes), manufacturer-specific protocols (CAN, K-Line)
• Interface: Multi-pin diagnostic connectors via included adapter cables
• Power source: Vehicle battery
• Housing material: Durable ABS plastic
• Language support: Multi-language (English, Spanish, French, German, Italian, Portuguese, Russian, Polish, Dutch, Czech, Finnish, Swedish, Turkish, Hungarian, Korean, Japanese, Thai, Arabic)
• Protection features: Over-voltage protection, reverse polarity protection
• Included adapters: Honda 4P, Yamaha 3P/4P, Kawasaki 4P/6P, Suzuki 6P, BMW 10P, Harley 4P/6P, KTM 6P, etc.
• Certification: CE, FCC, RoHS

Final note

With its comprehensive coverage, robust build, and free lifetime updates, the ANCEL MT100 PRO is a future-proof investment for anyone serious about motorcycle maintenance.
