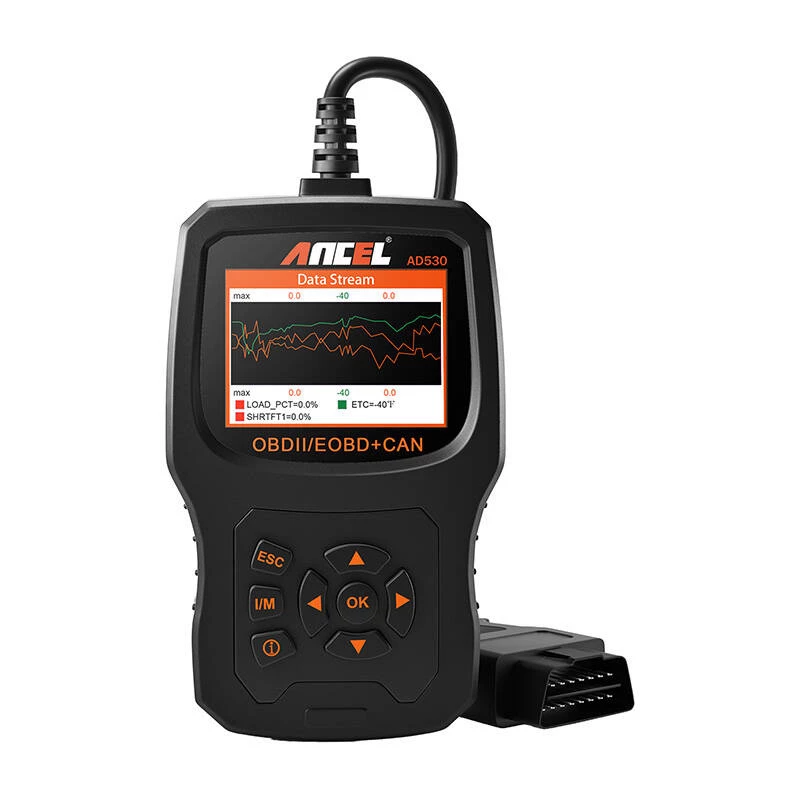

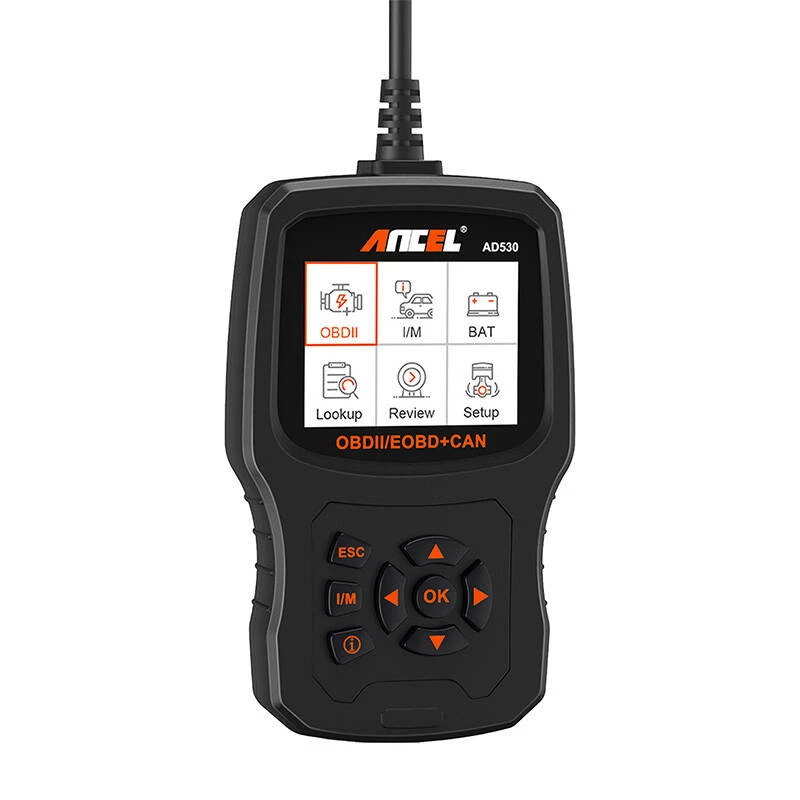

ANCEL AD530 OBD2 Diagnostic Scanner with 2.8 inch TFT Color Screen, Lifetime Free Updates

The ANCEL AD530 is a professional OBD2 diagnostic scanner designed for both DIY enthusiasts and professional mechanics. It provides comprehensive vehicle diagnostics with a user-friendly interface and lifetime free updates via USB. The scanner supports all OBDII compliant vehicles and offers advanced functions such as live data stream, I/M readiness, and EVAP system test.

Advantages

Equipped with a 2.8-inch TFT color screen (320x240 resolution) for clear data display. Supports multiple OBD2 protocols including CAN, KWP2000, and ISO9141-2. Features a built-in DTC lookup library and battery voltage test. Compact design with integrated 1-meter cable for easy use.

Suitable for

• Car owners who want to diagnose and clear check engine lights
• Mechanics needing a reliable OBD2 scanner for basic and advanced diagnostics
• Fleet managers monitoring vehicle health

Key specifications

• Display: 2.8-inch TFT color screen, 320x240 pixels
• Supported Protocols: J1850 PWM, J1850 VPW, ISO9141-2, KWP2000, CAN
• Diagnostic Functions: Read/Clear DTCs, Live Data, I/M Readiness, Freeze Frame, O2 Sensor Test, On-Board Monitor Test (Mode 6), EVAP System Test (Mode 8), Vehicle Information (VIN, CIN, CVN)

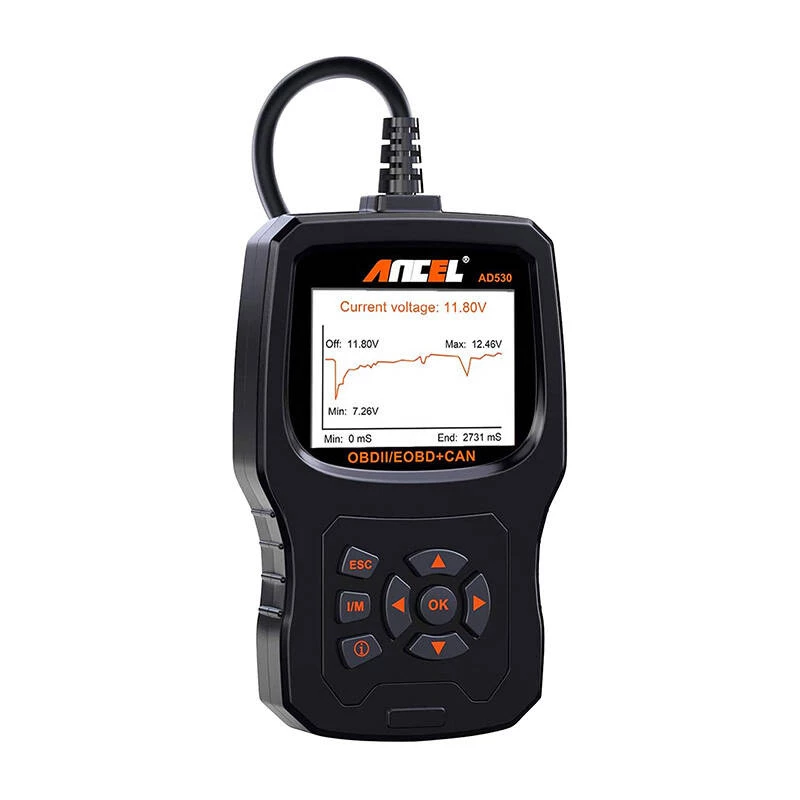

• Additional Features: DTC Lookup Library, Battery Voltage Test, Data Playback
• Update: Lifetime free updates via USB (PC required)
• Operating Voltage: 9-18V DC from OBD2 port
• Connectivity: Standard 16-pin OBD2 connector, USB Type-B port
• Cable Length: Approx. 1 meter integrated
• Languages: English, French, Spanish, German, Italian, Russian, Portuguese, Japanese, Chinese
• Certifications: CE, FCC, RoHS

Recommendations

For optimal performance, ensure your vehicle is OBDII compliant (US 1996+, EU 2001+, Asian 2005+). Use the included USB cable to download the latest software from the ANCEL website. The scanner is powered directly from the vehicle's OBD2 port, no batteries required.
