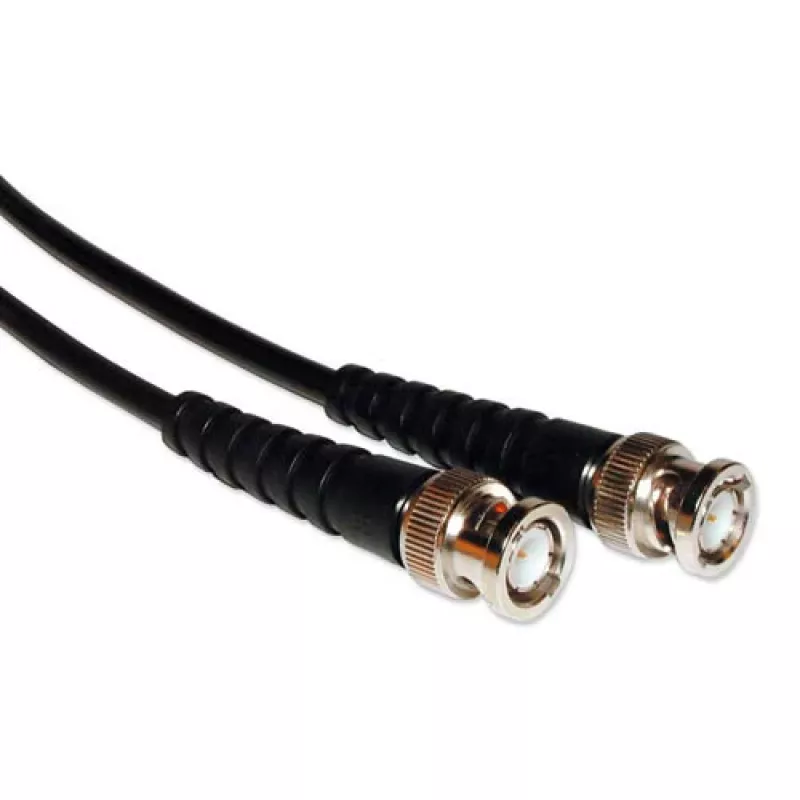

ACT RG-58 patch cable black 50 Ohm 0,50 m

The ACT RG-58 patch cable is a 0.50 m coaxial cable with BNC connectors on both ends and a characteristic impedance of 50 ohm. It is designed for RF and general-purpose signal connections where a short, reliable link with good signal integrity is required. The cable's construction supports minimal insertion loss over short runs and durable performance in routine installations.

Advantages

The cable provides secure BNC connections on both ends for easy mating and stable contact. Its 50 ohm impedance matches common RF equipment and test instruments, reducing reflections. The 0.50 m length is convenient for patching between nearby devices without excess cable, and the build quality supports repeated handling and standard installation conditions.

Suitable for (tasks / use cases)

• RF test and measurement setups
• Connecting radio frequency equipment and modules
• Patching between instruments on test benches
• Short-link coaxial connections in labs and installations

Key specifications

• Brand: ACT
• Model / MPN: Q70050
• EAN: 8716065155006
• Type: RG-58 coaxial patch cable
• Connectors: BNC male — BNC male
• Impedance: 50 Ohm
• Length: 0.50 m

How to use

Inspect connectors and cable for visible damage before use. Align each BNC connector with the mating jack and push then rotate the coupling nut until it locks. Use the cable to connect RF equipment, test instruments or modules ensuring both ends are fully seated. Avoid sharp bends and excessive tension on the cable to preserve performance. When disconnecting, unlock the coupling nut before pulling the connector free.

Recommendations

For best signal performance, keep cable runs short and avoid routing near large sources of electromagnetic interference. Store the cable coiled without tight kinks and replace if connector contacts appear corroded or damaged.
