ACT RG-59 patch cable black 75 Ohm 0,25 m

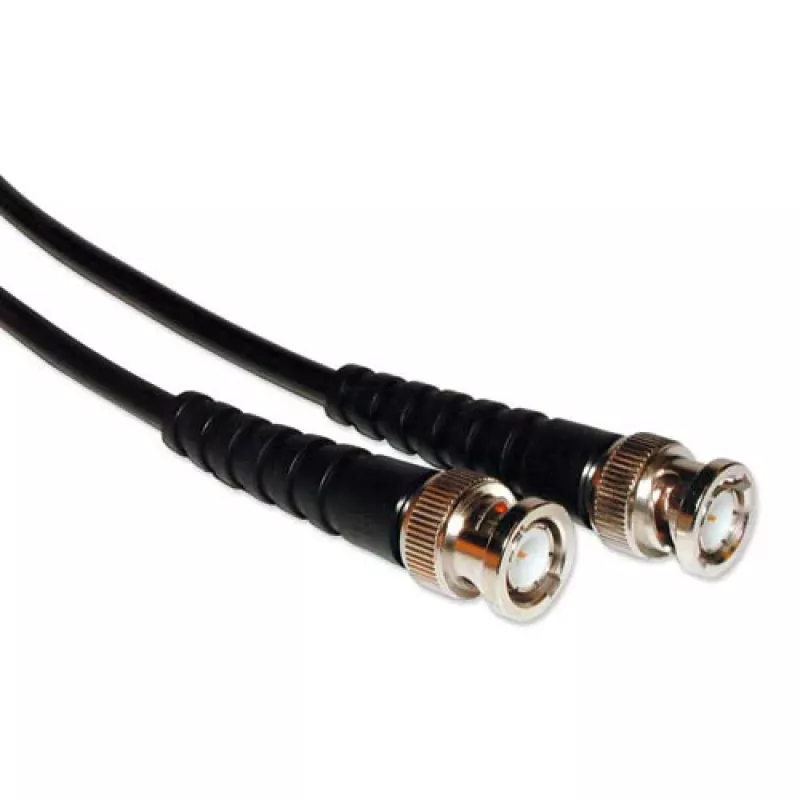

The ACT RG-59 patch cable is a 0.25 m black coaxial cable designed for reliable video signal transmission. It has BNC connectors on both ends and a nominal impedance of 75 Ohm, making it suitable for CCTV and other analog video applications. The cable meets RoHS requirements and is supplied under certification Q71025.

Advantages

This short ACT RG-59 patch cable provides a compact and reliable connection between video devices with BNC ports. Its 75 Ohm impedance ensures proper signal matching for analog video systems, while the black jacket offers discreet installation. Compliance with RoHS and the supplied certification Q71025 confirm adherence to environmental and quality standards.

Suitable for

• Connecting CCTV cameras to DVRs or monitors
• Short interconnects between video equipment with BNC connectors
• Analog video installations where 75 Ohm impedance is required

Key specifications

• Brand: ACT
• Model / MPN: Q71025
• Length: 0.25 m
• Connectors: BNC — BNC
• Impedance: 75 Ohm
• Colour: Black
• Compliance: RoHS
• EAN: 8716065155105

How to use

Connect one BNC connector to the video output of the source device and the other BNC connector to the input of the receiving device, ensuring secure push-and-twist engagement. Use the 0.25 m length for short runs to avoid unnecessary cable loops and maintain good signal integrity. Verify that both devices expect a 75 Ohm connection to prevent impedance mismatch.

Recommendations

For best results, avoid sharp bends and excessive tension on the cable. Keep connectors clean and free of corrosion; for permanent outdoor installations consider weatherproofing adapters or using cables rated for outdoor exposure.
