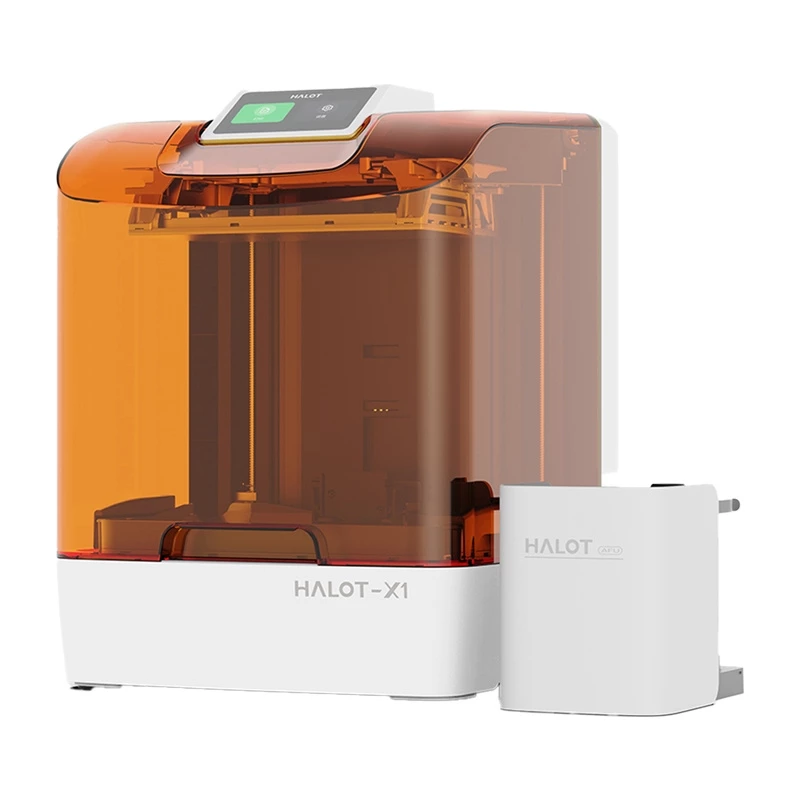

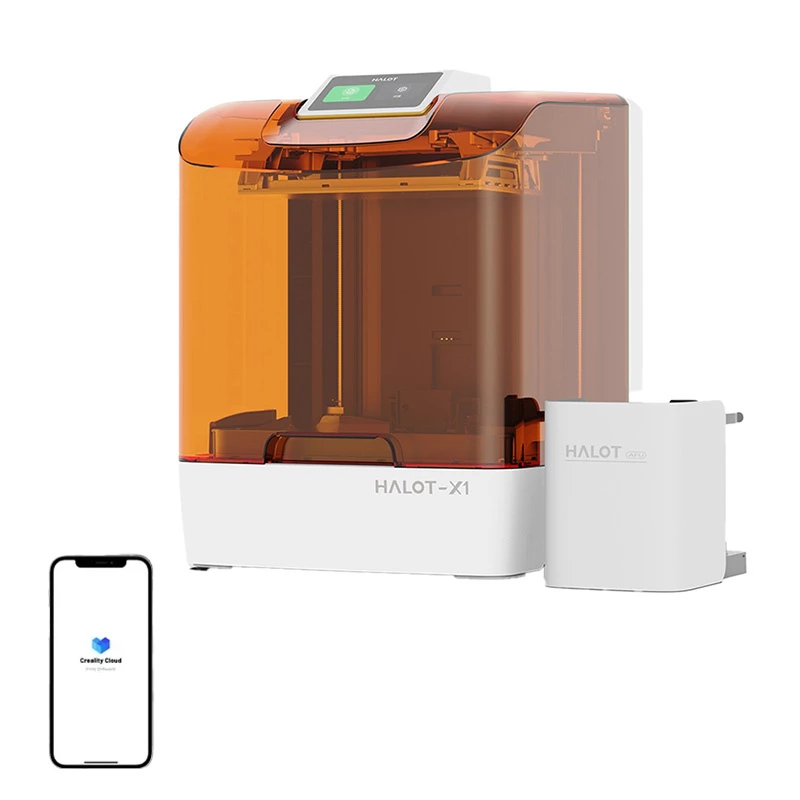

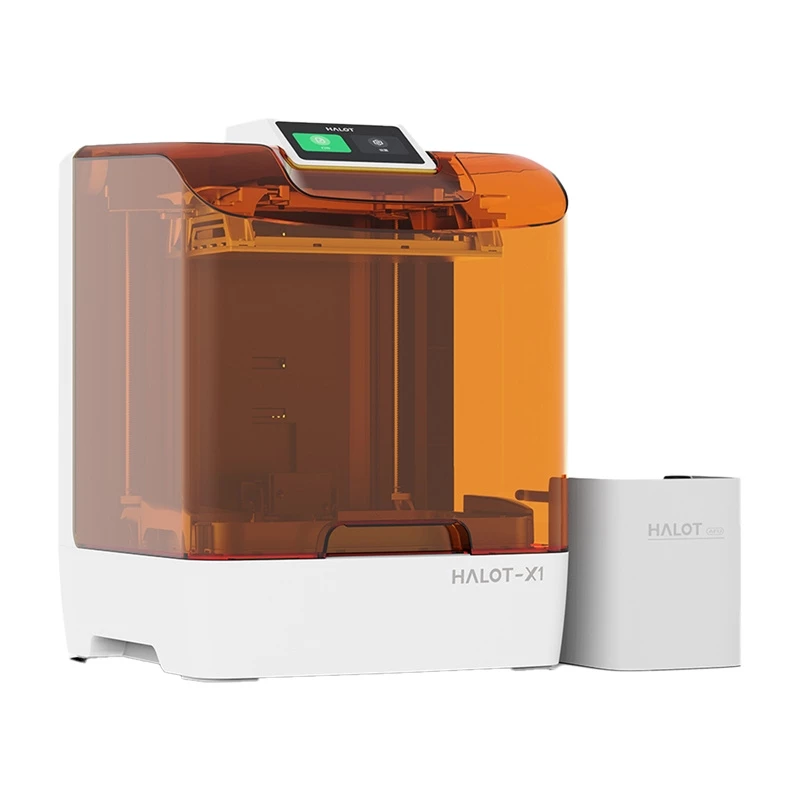

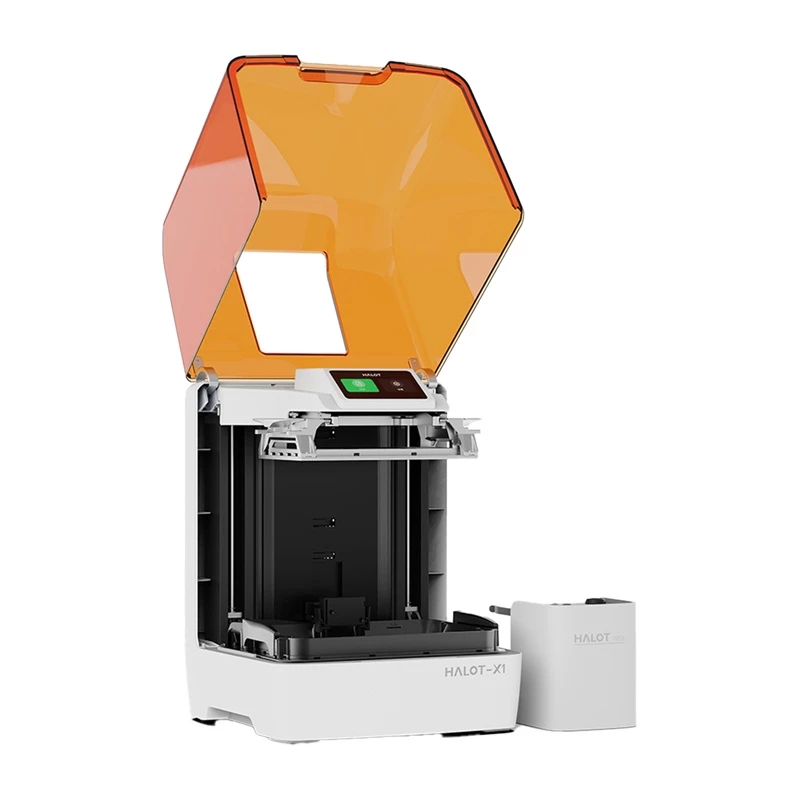

3D Printer Creality Halot X1 Combo with 4K LCD Resolution

The Creality Halot X1 Combo is an LCD resin 3D printer designed to deliver high-detail prints with an integrated Auto Feed Unit (AFU). It pairs a high-resolution 16K monochrome LCD, a Honeycomb Matrix light source and an intelligent resin management system to simplify operation while maintaining precision suitable for miniatures, prototypes, jewelry and technical parts.

Advantages

The Halot X1 Combo requires no manual bed leveling and features automated calibration for fast setup. A 16K (15120 × 6230) mono LCD with 14 × 19 µm pixels provides exceptional detail, while a Honeycomb Matrix light source and 92-zone intelligent exposure ensure even illumination and accurate curing. The included AFU enables automatic resin feeding, draining, type recognition and heating, reducing manual handling and configuration. Mechanical improvements such as a reinforced support structure, quick-release work plate and a high-precision Z-axis (0.01 mm) contribute to stable, high-speed printing up to 170 mm/h.

Suitable for

• Hobbyists and miniature painters
• Prototyping and product design
• Jewelry and dental model production
• Small-batch professional manufacturing and custom parts

Key specifications

• Manufacturer: Creality
• Model / MPN: 1203040118
• Working area: 211.68 × 118.37 × 200 mm
• Screen resolution: 16K (15120 × 6230 pixels), mono LCD
• Pixel size: 14 × 19 µm
• Light source: Honeycomb Matrix, 92-zone intelligent exposure
• Exposure intensity: 6500 ±10% µW/cm²
• Z-axis accuracy: 0.01 mm
• Layer thickness: 0.01–0.2 mm
• Printing speed: up to 170 mm/h
• Touchscreen: 3.98-inch capacitive
• Printing technology: LCD resin
• Included: Halot X1 printer and AFU module
• Dimensions / Weight: 344 × 331 × 434 mm / 12.75 kg
• Power: 350 W; Input voltage: 100–120 V~ / 200–240 V~, 50/60 Hz
• Software: HALOT BOX / ChituBox; Data transfer: USB / Wi‑Fi

How to use

Place the Halot X1 on a stable surface, connect power and network if required, then power on the device. For first-time setup, follow the on-screen calibration — the printer performs automatic platform calibration without manual leveling. Insert the AFU module and place a resin bottle with an RFID tag into the feeder; the unit will recognize the resin type and, if available, download the matching profile. Prepare your model in HALOT BOX or ChituBox, export a compatible print file, transfer it by USB or Wi‑Fi, then start the print from the touchscreen. After printing, follow standard resin-post-processing: drain excess resin, rinse the print in isopropyl alcohol, and post-cure according to material recommendations.

Recommendations

Use resins recommended by Creality or those compatible with 405 nm LCD curing. Keep the AFU and tank clean, store resin bottles upright, and ensure the work area is well ventilated. For consistent results, maintain layer thickness within the specified 0.01–0.2 mm range and use the 92-zone exposure adjustment to optimize detail for complex geometries.
