Wire Connector D-Sub DeLOCK 66719

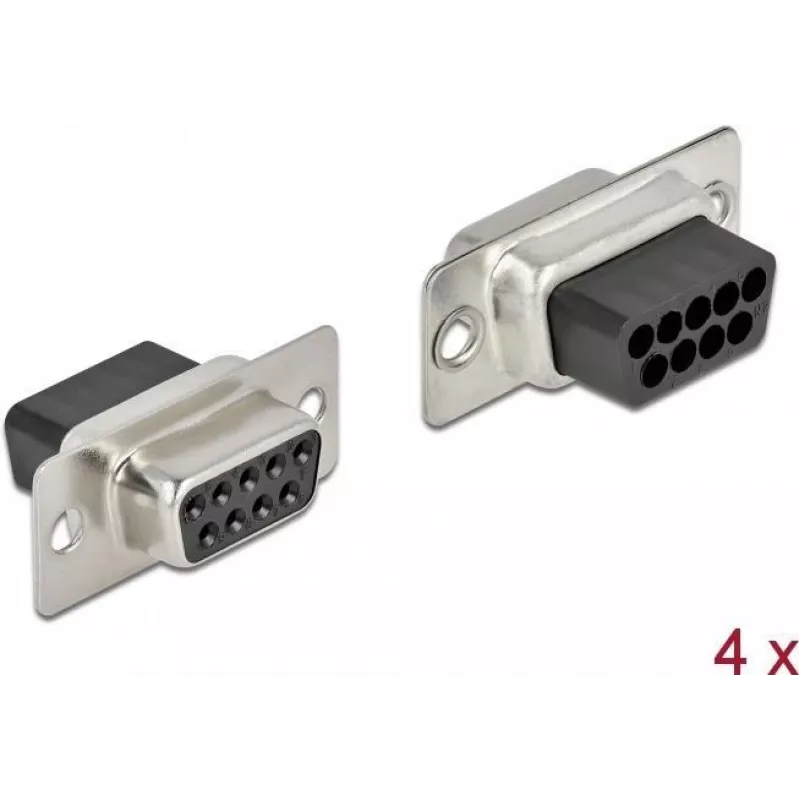

The DeLOCK 66719 wire connector is a D-Sub female connector designed for cable mounting. It features a compact housing in black and silver and includes through-holes on the rear side for inserting crimp contacts. The connector is supplied in packs of four and is suitable for installations where a small, panel- or cable-mounted D-Sub female interface is required.

Advantages

The connector offers a space-saving D-Sub female form factor with rear through-holes that simplify the use of crimp contacts. Its compact dimensions (30.8 x 17.5 x 12.5 mm) make it easy to integrate into tight assemblies, and the included pack of four ensures multiple connections are available for small projects or repairs.

Suitable for

• Cable mounting of D-Sub female interfaces
• Custom cable assemblies using crimp contacts
• Small electronic devices and enclosures with limited space
• Repair or replacement of existing D-Sub female connectors

Key specifications

• Brand: DELOCK
• Model / MPN: 66719
• EAN: 4043619667192
• Type: D-Sub female connector
• Mounting: cable mounting
• Rear: through-holes for crimp contacts
• Colour: Black, Silver
• Dimensions (W x D x H): 30.8 x 17.5 x 12.5 mm
• Quantity per pack: 4 connectors

How to use

Prepare the cable and crimp the appropriate crimp contacts onto the wires according to the contact manufacturer’s instructions. Insert the crimp contacts through the rear through-holes of the DeLOCK 66719 until they are fully seated. Secure the connector as required for the intended cable assembly or installation, ensuring correct pin alignment and mechanical strain relief where necessary.

Recommendations

Use crimp contacts that match the connector’s contact size and follow recommended crimping tools and procedures. Verify pinout and mechanical fixation before placing the assembled cable into service to ensure reliable electrical and mechanical performance.
